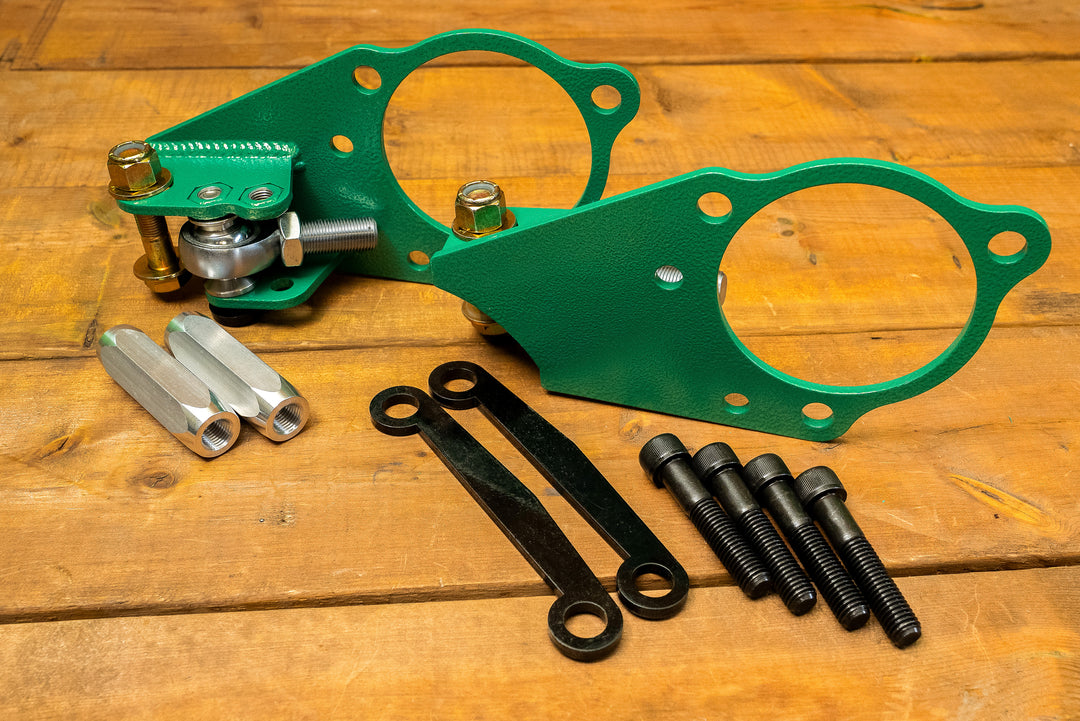

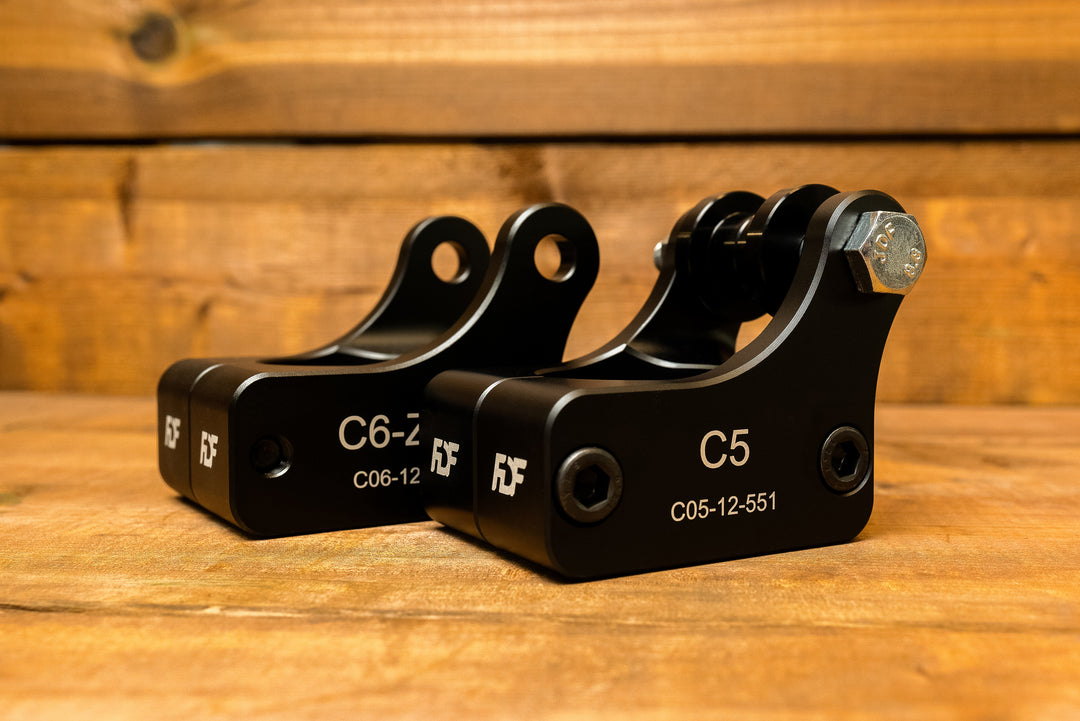

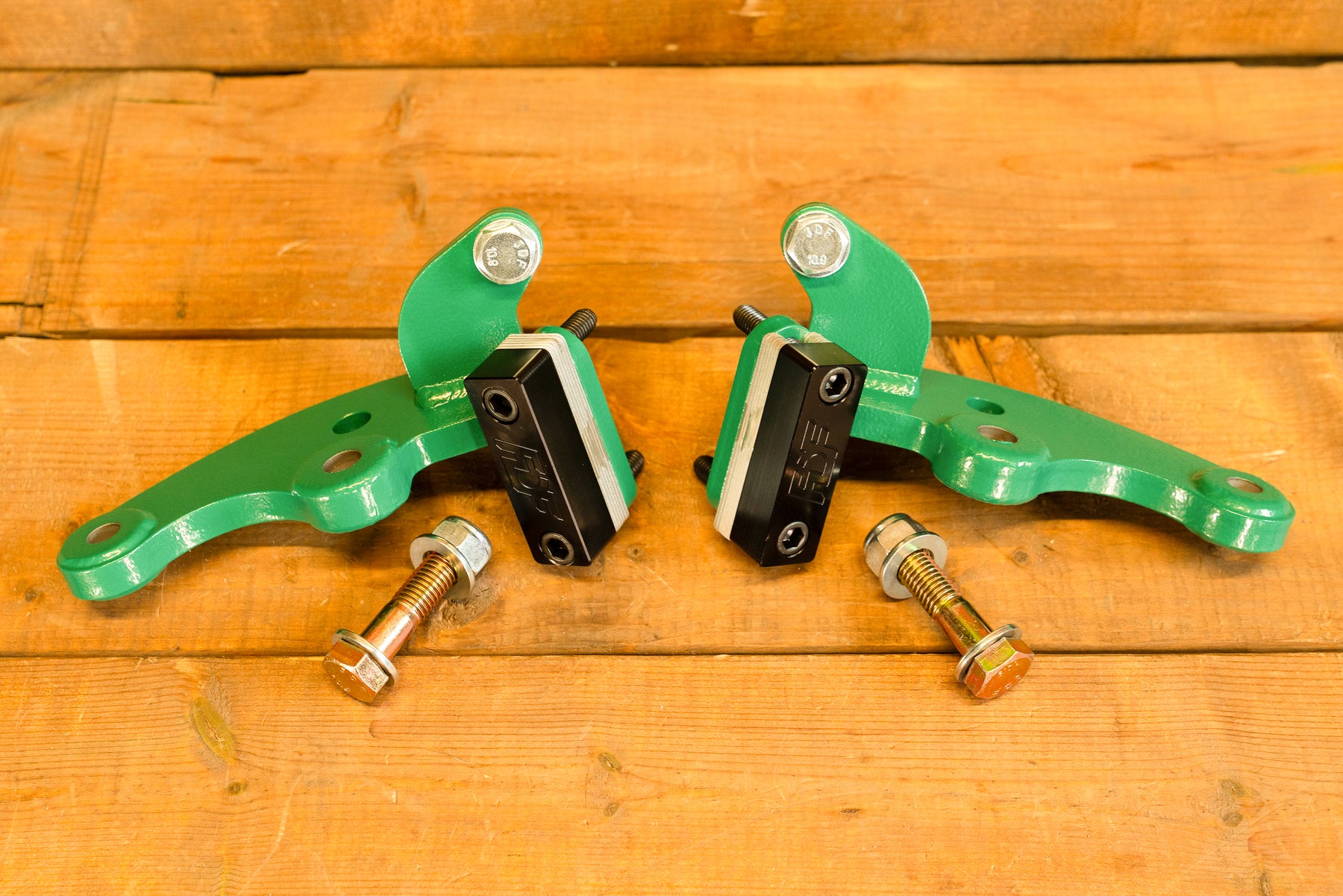

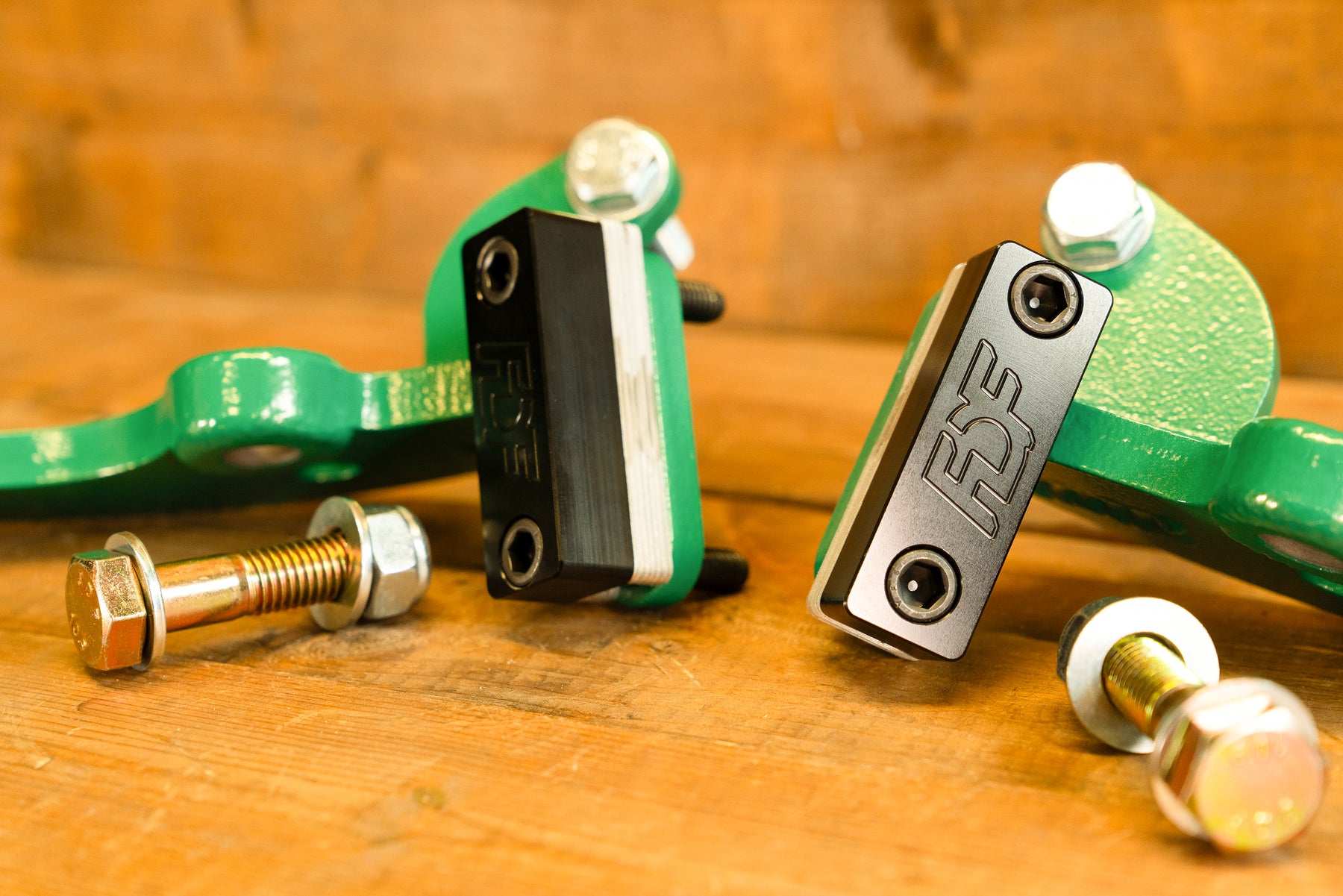

C5/C6 angle kit solutions that are affordable and have the perfect Ackerman
Re-drilled knuckles have too much positive Ackerman, there is no option to correct this as the hole can only be drilled where there is enough material, and other adaptors available have too much negative Ackerman because they only fit in one location on the C5/C6 knuckle. Currently nothing available for C7 other than drilled
This design has 2 tierod location options, the first is a moderate increase in angle for those with OEM arms (measured at 50 degrees of lock) and the second position is for a full 70 degrees of lock, that can be used with aftermarket arms of any brand
The brackets are made from high-strength, Alloy steel and 7075 aluminum. making them a lightweight and robust design.Â
Please allow 2 weeks before for build/ship time until we have them in stock.Â
For the options, select the control arms that you are using. this will determine what length tierod bodies we need to includeÂ

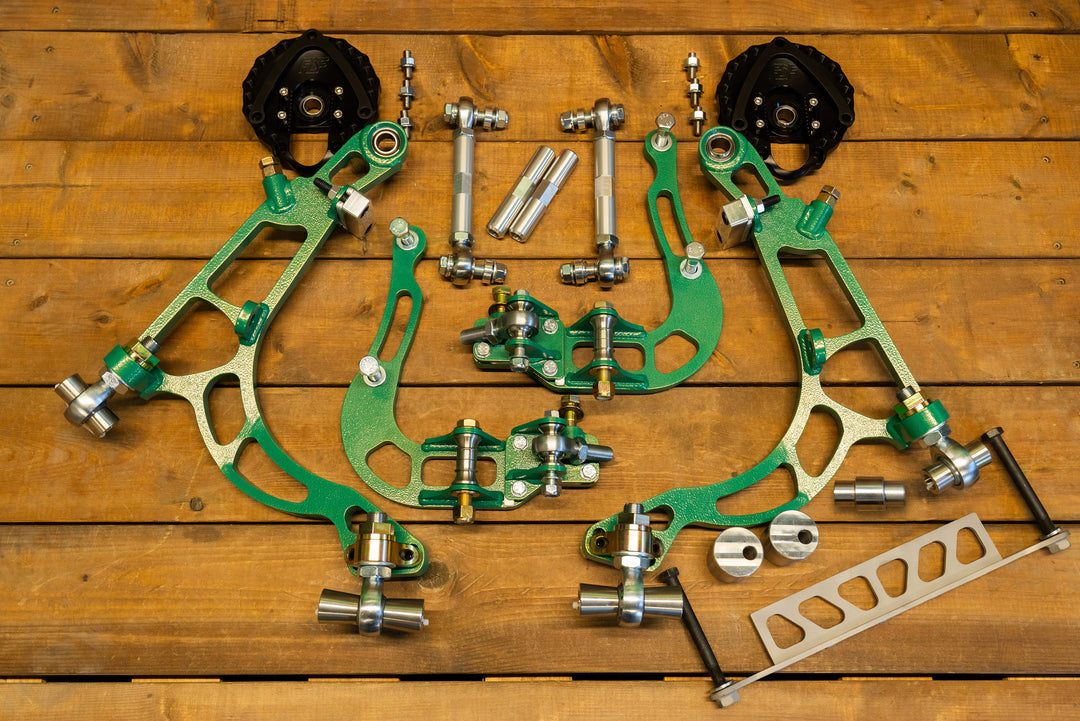

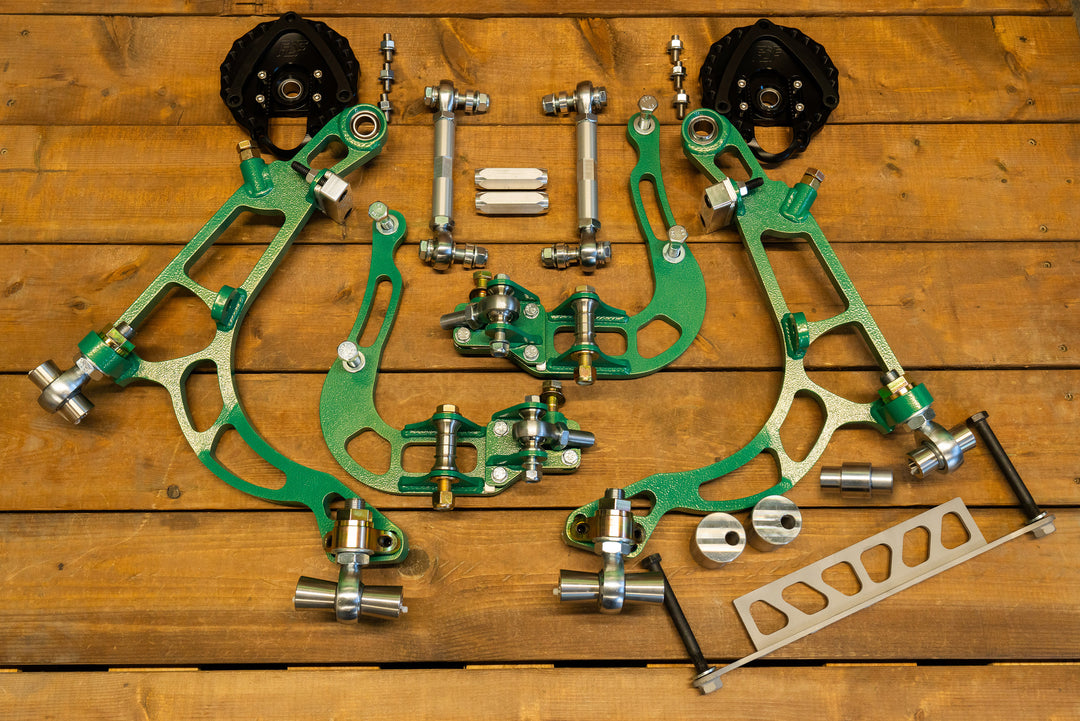

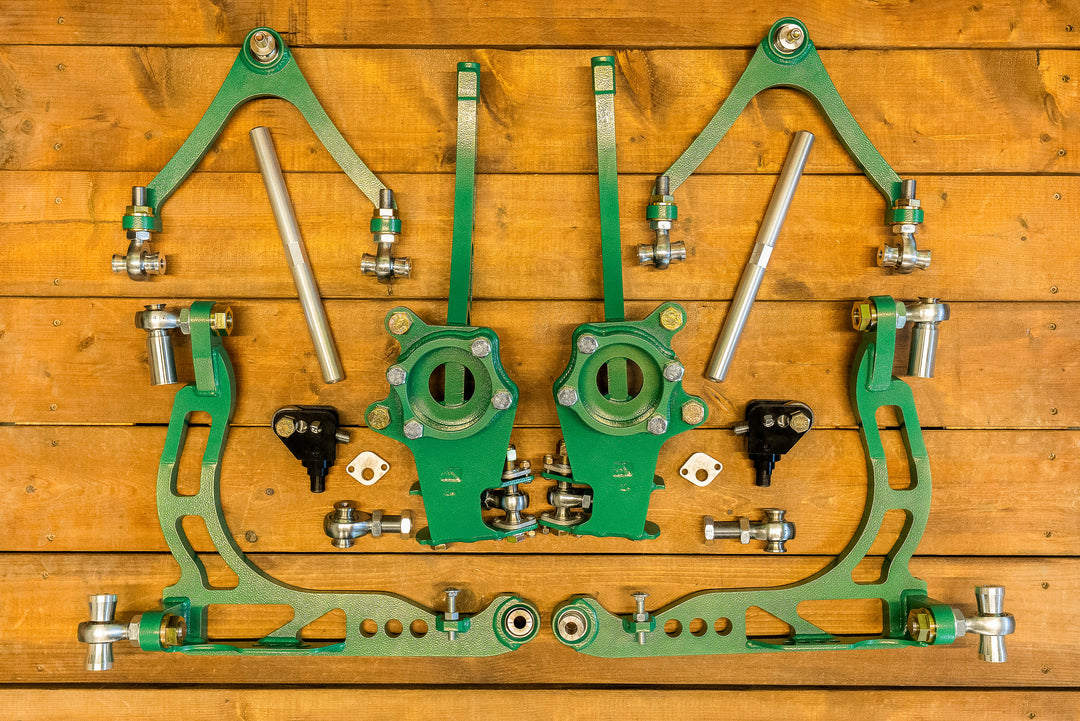

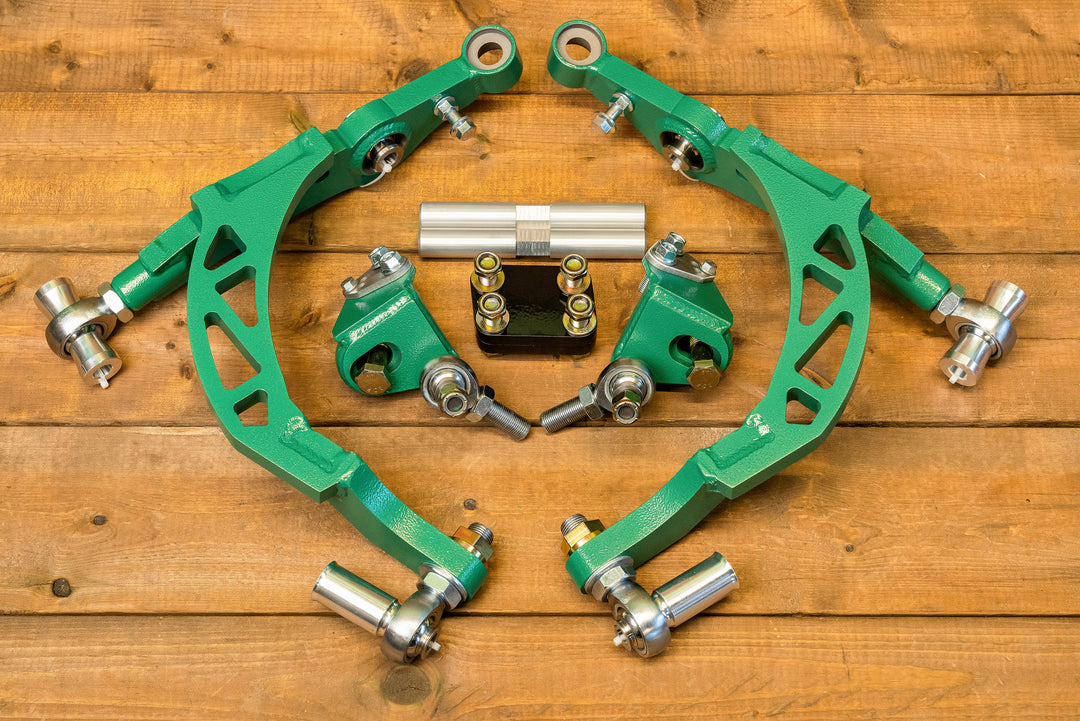

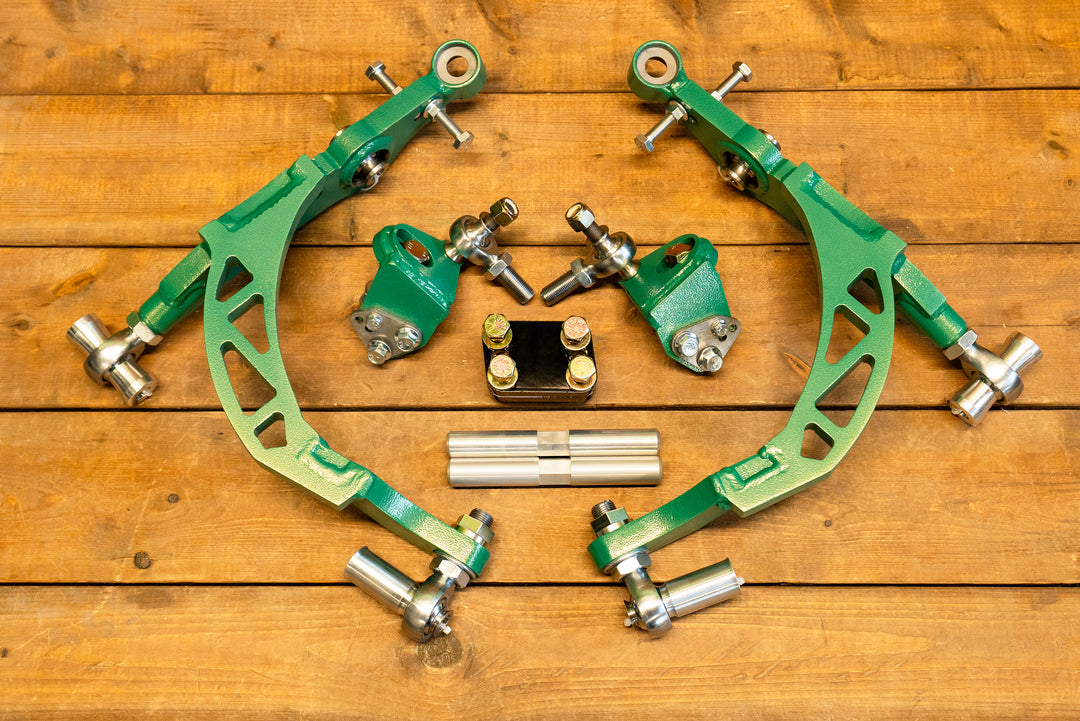

The Mantis Kit for the S-chassis is the most relevant angle kit in today's drift society, and here's why,
-Angle, 70 degrees+ depending on your steering rack offset and wheel setup
-Tierods the kit includes adjustable offset rack spacers, with inner and outer heim joints.Â
-Ackerman, adjustable Ackerman
-Roll Center, optimized handling by adding 50mm of roll center correction
-Bump steer, minimal bump steer in drift by perfecting tierod pitch angle
-Caster, Caster displacement adjustments made to have a good self-alignment force while optimizing the kinematics for driftingÂ
-Camber, optimized camber ranging from -3 to -6
-Track Width, 75mm wider per side creating a stable and high clearance front end
-Suspension Travel, long travel range, full lock to full lock at any point throughout suspension travel for increased gripÂ
-Joints, Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceableÂ
-Weight Reduction, compact drop knuckle design makes for a lighter and stronger design, 7075 aluminum used where possible for steel-like strength at 40% of the weightÂ
The Mantis Kit for the BMW is the most relevant angle kit in today's drift society, and here's why,
-Angle, 65-70 degrees depending on wheel size and arm length
-Ackerman, zero Ackerman aka parallelÂ
-Roll Center, optimized handling by adding 30mm of roll center correction
-Bump steer, minimal bump steer in drift by perfecting tierod pitch angle
-Castor, factory caster can be changed using both the arm and the additional caster plates for better steering return
-Camber, optimized camber ranging from -3 to -6
-Track Width, 50-75mm wider per side creating a stable and high clearance front end
-Suspension Travel, long travel range, full lock to full lock at any point throughout suspension travel for increased gripÂ
-Joints, Chromoly Heim joints, and spherical bearings
compact drop knuckle design makes for a lighter and stronger design, 7075 aluminum used where possible which provides steel like strength at 40% weight reduction.Â
For custom colors, email your order number and the color wanted
Please allow 2-3weeks of fabrication before the item is sent.

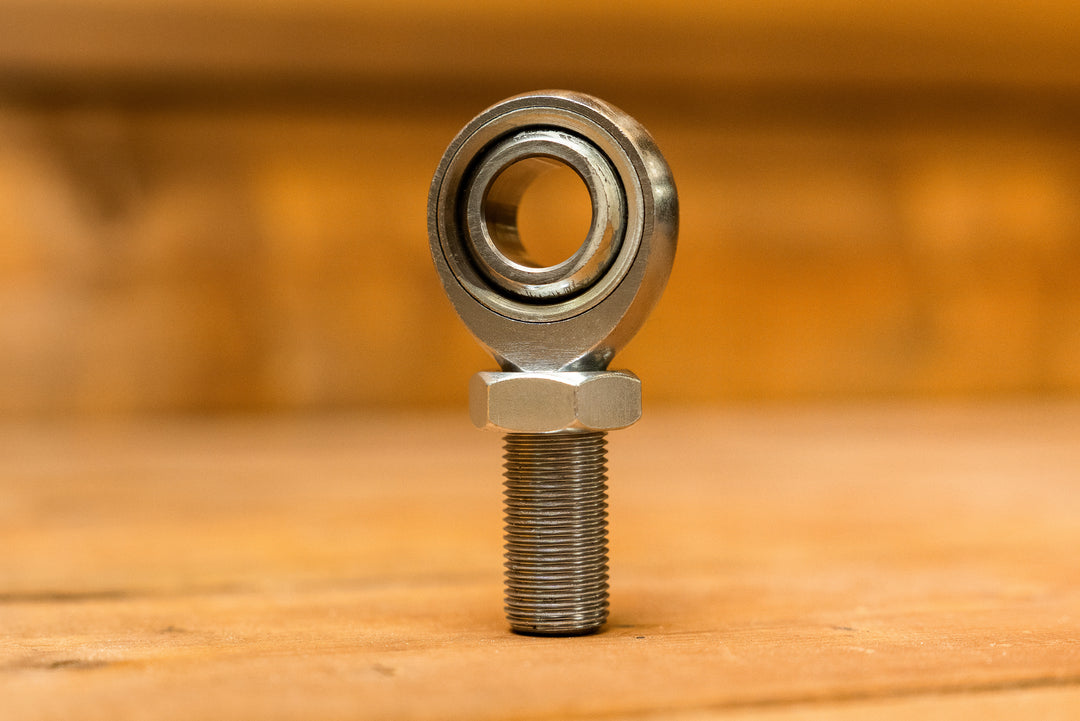

Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Housing: 4130 heat treated chromoly steel
Application: Our Chromoly rod ends are ideal for automotive after market suspensions such as control arms, end links and ball joints.Â
Ultimate Static Load Rating 3/4 : 25,489 lbs
Ultimate Static Load Rating 5/8Â : 19,751 lbs
Â
FK Rod End/ Heim Joint
Regular price$45.85
Save $-45.85
The FK rod end bearings are the premium option for our angle kits that offer supior bearing life, extreme strength and a smooth feel. We offer them in 2 sizes, both left hand (LH) and right hand (RH).
The JMX10 is a PTFE lined 5/8-18 bearing with a yield strength of 17,959 lbs.
The JMX12 is a PTFE lined 3/4-16 bearing with a yield strength of 28,090 lbs.
Â

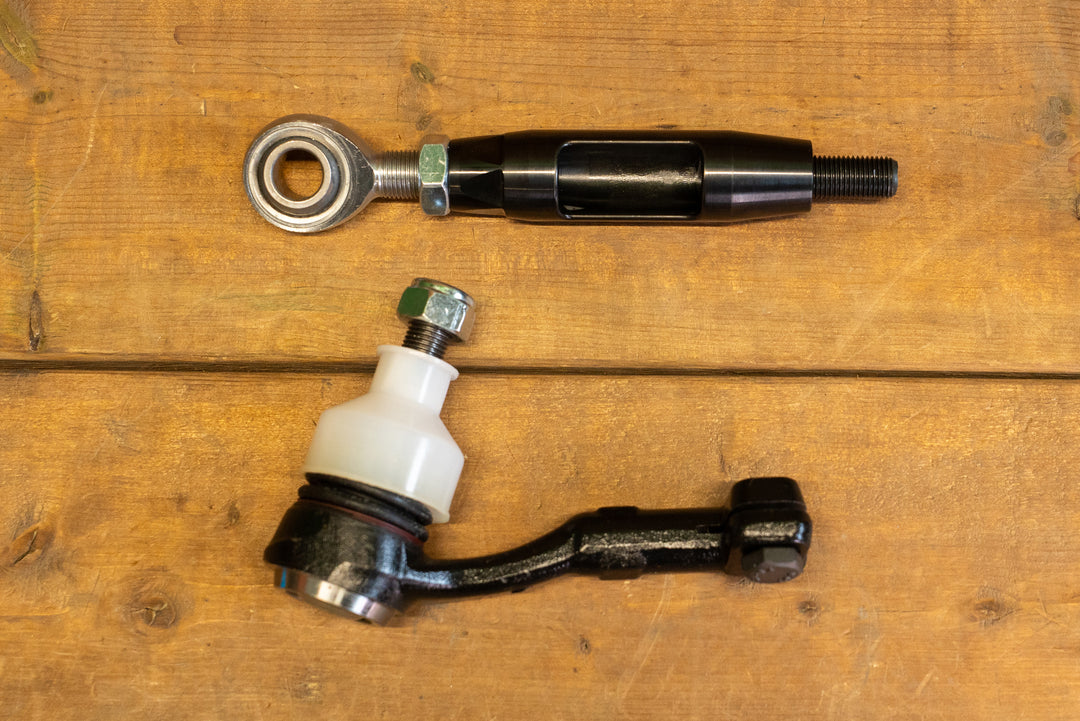

Tierod Body for Mantis kits
Regular price$38.59
Save $-38.59
Our rigid tie-rod for the FDF Mantis kits.
Quantity- Price is for 1 tie-rodÂ
Material-Â 7075 Aluminum
Benefits over regular tie-rods Â
Very stiff design, does not flex like the thin steel tie-rods, this improves handling.
Machined fail point to save your steering rack on impact.
Stronger than steel but super lightweight.
We have 7 lengths that currently go with there corresponding angle kits, please select one of the 7 options for your kit
4.5"Â long (these have a m14x1.5 RH thread, and a 5/8-18 LH thread)
-Corvette, S197, Genesis
6.5"Â long (these have a m14x1.5 RH thread, and a 5/8-18 LH thread)
- S550, SN95, 370Z mini
8.5" long (these have a m14x1.5 RH thread, and a 5/8-18 LH thread)
-E36, FRS base,Â
9.5" long (these have a 5/8-18 RH thread, and a 5/8-18 LH thread)
- 350Z reg
10" long (these have a m14x1.5 RH thread, and a 5/8-18 LH thread)
-E46
11.5" long (these have a 5/8-18 RH thread, and a 5/8-18 LH thread)
-240sx, 350z mega, is300/jzx,Â
13" long (these have a 5/8-18 RH thread, and a 5/8-18 LH thread)
-E46 full tierod setup, frs power kit,Â
Â
Â
B-Spec Billet Offset Rack Spacers
Regular price$99.17
Save $-99.17
FDF offset rack spacers are the ideal solution for your tierod setup
The benefits of using our offset rack spacers are listed below:
- Replaces socket style tierod with a double shear heim joint design, this is both easier to service and lasts much longer through heavy abuse
- multiple offset positions, It is very common to run offset rack spacers on your drift car, this prevents over centering and binding at high angle, but the ideal solution is to relocate your rack. Relocating your rack will keep all your forces applied inline with the steering rack, preserving your rack seals. our offset rack spacers allow you to run in an offset position or inline with the rack.Â
- Billet steel shackle design, the design of our shackles insures that it will take all the abuse you can throw at your car. machined from a solid block of steel and nickle electro plated, it is the most innovative option on the market today. Â
-Â Cost, keeping costs reasonable for the end user has always been our goal, these products can be expensive at first but from your purchase on the only part you will need to replace is the inexpensive rod end. so it is an investment in to cheaper repairs down the road.Â
IncludedÂ
2 billet shackles (left and and right hand side)
Add on
-2 m16x1 Allen head bolts for s-chassis
- 2 m16x1.5 Allen head for frs/brz
-2 inner tie-rod heim joints with jam nuts
Â
Steering Rack Adaptor
Regular price$142.98
Save $-142.98
FDF Inline rack adaptor are the ideal solution for your tierod setup, this product consists of 2 billet shackles that bolt to your steering rack, and allow for a 5/8-18 rod end to be used as the inner ball joint.
The benefits of using our offset rack adaptors are listed below:
- Replaces socket style tierod with a double shear Heim joint design, this is both easier to service and lasts much longer through heavy abuse
- Billet chromoly shackle design, the design of our shackles insures that it will take all the abuse you can throw at your car. machined from a billet piece of Chromoly and electro-plated, it is the most innovative option on the market today. Â
-Â Cost, keeping costs reasonable for the end-user has always been our goal, these products can be expensive at first but from your purchase on the only part you will need to replace is the inexpensive rod end. so it is an investment in to cheaper repairs down the road.Â
Â
Add on
-2 m16x1 Allen head bolts for any s-chassis, r-chassis, and z-chassisÂ
