Impreza

The Subaru Impreza 2008-2014 Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Note: STI has not been test-fitted.

Key Features:

• Angle: 70 degrees depending on your wheel setup and length of control arms.
• Tie-rods: Outer tie-rods included, these fasten to the stock inner tie-rods.
• Ackermann: Adjustable Ackermann options from Positive - zero - negative.
• Roll Center: Optimized handling by adding 45mm of roll center correction.
• Bump steer: Perfected bump steer for drifting.
• Caster: Modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 25-75mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Included:

The kit includes everything needed to install.

Note: ABS sensors cannot be used on this kit, and ABS is not recommended for drifting.

Note: You must use either an FRS/BRZ wheel bearing or you must cut the axle stubs and leave them installed in the OEM AWD bearing. "350z" 5x114 - this uses a 350z wheel bearing. you must also run this setup with a 350z rotor

Note: Wheel Bearing not included.

Note: For custom colors, please list it within the order notes.

Note: Please allow 3-4 weeks build time.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.


View this post on Instagram

A post shared by FDF Race Shop inc. (@fdfraceshop)

The Subaru Impreza 2002-2007 Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

• Angle: 65+ degrees depending on your wheel setup and length of control arms
• Tie-rods, Outer tie-rods included, these fasten to the stock inner tie-rods
• Ackermann: Adjustable Ackermann options from Positive - zero - negative
• Roll Center: Optimized handling by adding 50mm of roll center correction.
• Bump steer: Perfected bump steer for drifting.
• Caster: Modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 50-75mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout  suspension travel for increased grip.
• Joints: Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Weight Reduction: Made from High strength alloy steel and Aluminum.

Wheel Bearing:

• 5x10: You can use the OEM bearing or an FRS/BRZ wheel bearing. If you use the OEM wheel bearing then you must also run a cut axle spline in the bearing.
• "350z" 5x114: This uses a 350z wheel bearing. you must also run this setup with a 350z rotor and the STI caliper.

Note: Wheel Bearing not included.

Note: For custom colors, please list it within the order notes.

Note: Please allow 3-4 weeks build time.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.


These arms are used to adjust your camber beyond what the factory camber bolt can do, primarily used when lowering the car (or lifting). These arms feature a very strong and lightweight, alloy steel construction with options for softer/stiffer suspension points and sway bar points.

This product includes 2 arms, and all required hardware to install.

Key Features:

• Durable, Lightweight & Reliable: Made out of high-strength alloy steel.
• Camber: Adjustable camber past the factory camber bolt ability.

The arms will also fit:

• 2013+ Scion FRS
• 2013+ Subaru BRZ
• 2010-2014 Subaru Legacy Outback
• 2010-2014 Subaru Legacy Sedan B4
• 2010-2014 Subaru Legacy Outback
• 2011+ Subaru Impreza XV Crosstrek
• 2008-2017 Subaru Impreza WRX
• 2008-2014 Subaru WRX STi Hatchback
• 2008-2014 Subaru WRX STi Sedan

Note: For custom colors, please list it within the order notes.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

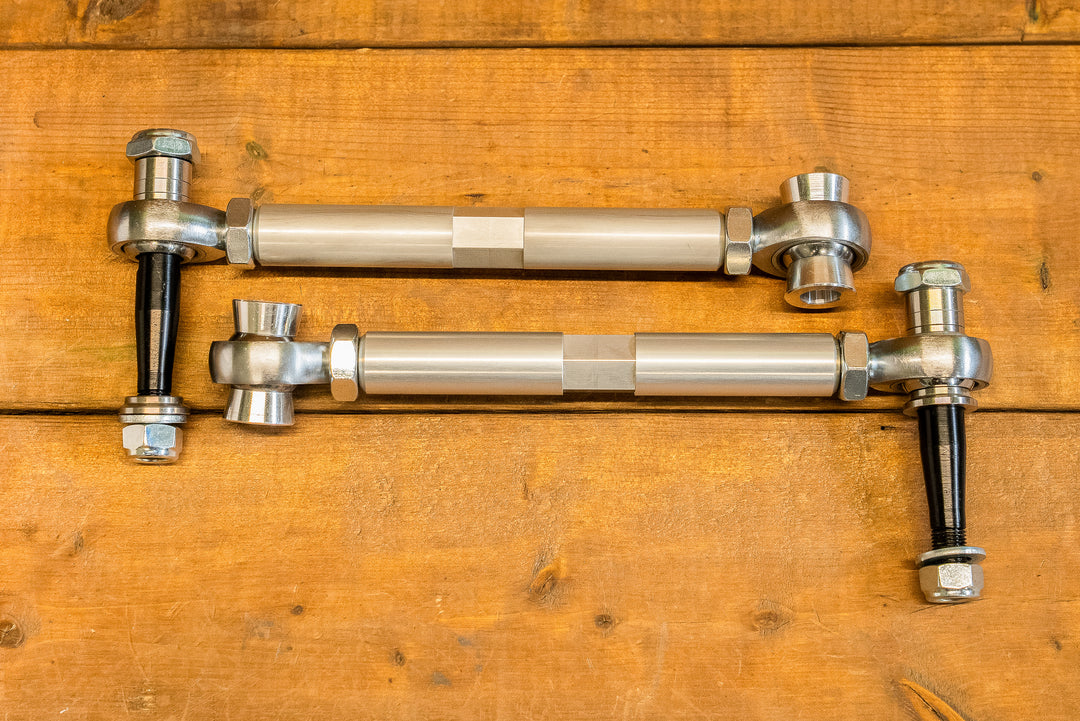

These arms are used to adjust your toe, primarily used when lowering the car (or lifting). They feature a very strong and lightweight, alloy construction.

This product includes 2 arms, and all required hardware to install.

Key Features:

• Adjustable: Able to adjust toe using a Left and right hand threaded body
• Durable, Lightweight, & Reliable: Made out of high-strength alloy Aluminum

Arms will also fit:

• 2013+ Scion FRS
• 2013+ Subaru BRZ
• 2010-2014 Subaru Legacy Outback
• 2010-2014 Subaru Legacy Sedan B4
• 2010-2014 Subaru Legacy Outback
• 2011+ Subaru Impreza XV Crosstrek
• 2008-2014 Subaru Impreza WRX
• 2008-2014 Subaru WRX STi Hatchback
• 2008-2014 Subaru WRX STi Sedan

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.


Our Subaru lift kit offers better ground clearance, enhanced off-road capability, and improved stance—all without compromising ride quality.

The 2" lift kit is to be installed between your strut top and strut, the plates are offset, so you retain factory camber and caster. Studs and nuts are included.

Key Features:

• Capabilities: High ground clearance, off-road abilities.

• Camber / Caster: Retain factory amounts.

Note: Required Multi-Link Spacers are provided with the kits

Installation Manual for 2008+

Note: Production time varies depending on the vehicle, the longest wait time before shipping is 2-3 weeks.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

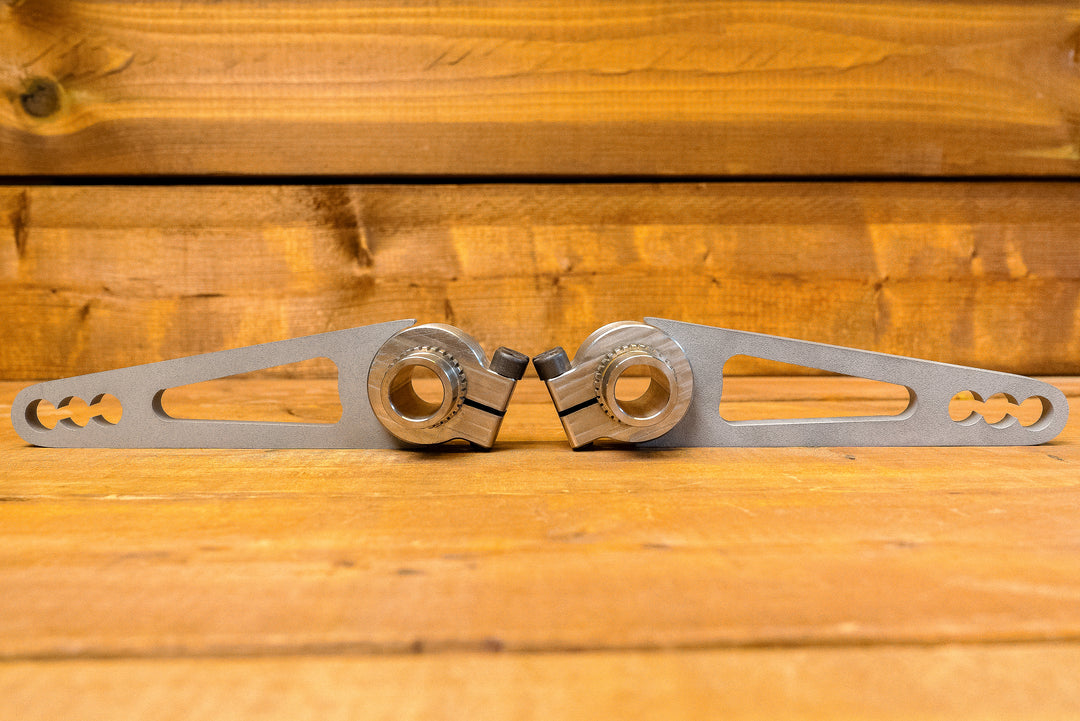

The Universal Spline Sway Bar Kit simplifies the process of creating a custom sway bar for your car. With this kit, you'll have everything you need to construct a custom sway bar, from start to finish.
We offer a range of options to choose from for blade length and link inclusion.

For a visual demonstration of how our kit can be utilized in your build, we encourage you to check out our video link, showcasing how we used the FDF Sway Bar Kit in our C6 Corvette build.

Key Features:

• All-In-One Kit: Equipped with all essential parts, this kit provides everything you need to construct a high-performance sway bar.
• Customizable Options: Different length options.
• Durable and Reliable: Made out of high-strength alloy steel.

Included:

• 2 Female spline ends
• 2 Male Spline ends
• 4 locking bolts
• 2 blades (6",8" or 10")
• Sway bar link kit (optional)

Need to purchase parts:

• 2 Bushings
• Sway bar material (4130 1.25x.120 tubing)
• Housing material (DOM or 4130 1.75 x .120 tubing)

Note: Please allow 2-3 weeks for shipping

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.
