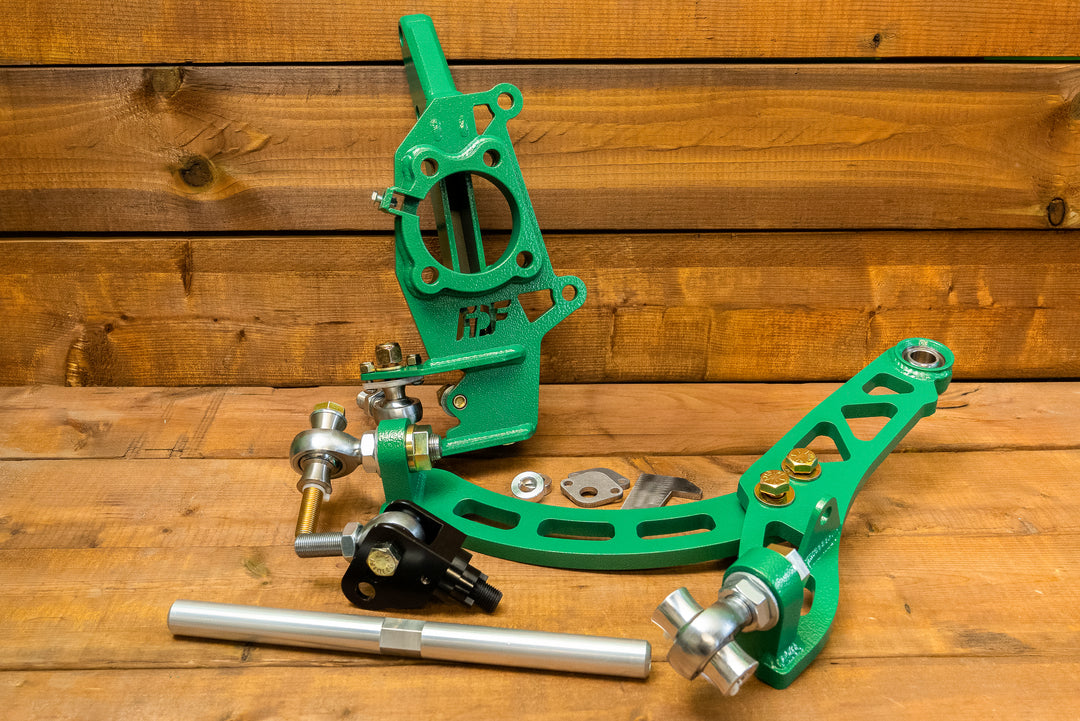

 The FDF Mantis Kit- Suspension Upgrade for the 86 Chassis

Elevate your driving experience with our FDF Mantis Kit, Crafted meticulously in Canada, this kit encompasses every top-tier feature an angle kit could offer. Comprised of high-grade materials, and ON-CAR adjustability, this kit is forged by passionate drivers who demand durability, robustness, and precision.

Why the FDF Mantis Kit?

• North American Craftsmanship: Designed and manufactured with excellence in Canada, assuring premium quality and reliability.
• Driver-Centric Design: Built by drivers, for drivers, guaranteeing a seamless and intuitive driving experience.
• Enduring Strength: Robust enough to withstand the rigorous abuse drifting exerts on a chassis.

Outstanding Features:

1. Unmatched Angle: Up to 65 degrees depending on your steering rack type, location, and wheel size.
2. Adjustable Ackermann: Customize your Ackermann to your driving needs.
3. Optimized Roll Center: Experience enhanced handling with 50mm of roll center correction, ensuring stability in every drift.
4. Minimal Bump Steer: Perfected tie-rod pitch angle allowing for smooth drifts and optimal control.
5. Enhanced Caster: Reduced caster and added trail increase grip and transition speed by amplifying tire contact, ensuring smooth and effortless transitions even while throttling.
6. Optimal Camber: Customizable camber ranging from -3 to -6 for precise control.
7. Extended Track Width: 50-75mm wider per side for stability and high clearance.
8. Extended Suspension Travel: Enjoy full lock-to-lock at any point throughout the suspension travel for increased grip.
9. Premium Joints: Features Chromoly heim joints and spherical bearings with self-lubricating nylon race; easily replaceable.
10. Superior Weight Reduction: Employing 7075 aluminum and compact drop knuckle design for a lightweight yet stronger structure.

Customizable Options:

• Opt for with or without caster plate options for further camber, caster, and track width adjustments.
• Upgrade to the inner tie rod/offset rack spacer for superior geometry and angle potential.

Important Note: If opting for the inner tie rod upgrade, some subframe modifications involving minor cutting and welding are necessary to ensure proper clearance.

Why Choose Us? Our commitment is to deliver a transformative driving experience with products that are high in quality, innovative in design, and have been tested to endure. Choose the FDF Mantis Kit and drive with unrivaled confidence and control!

*Wheel Bearing not included*

Please allow 3-4 weeks for build time

The Mantis Kit for the Subaru GD is the most relevant angle kit in today's drift society, and here's why:

-Angle, 65+ degrees depending on your wheel setup and length of control arms

-Tie-rods, Outer tie-rods  included, these fasten to the stock inner tie-rods

-Ackerman, adjustable Ackerman options from Positive - zero - negative

-Roll Center, optimized handling by adding 50mm of roll center correction

-Bump steer, perfected bump steer for drifting

-Caster, modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting

-Camber, optimized camber ranging from -3 to -6

-Track Width, 50-75mm wider per side creating a stable and high clearance front end

-Suspension Travel, long travel range, full lock to full lock at any point throughout  suspension travel for increased grip

-Joints, Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable

-Weight Reduction, compact drop knuckle design makes for a lightweight and strong design, 7075 aluminum used where possible which provides steel like strength at 40% weight reduction.

Options

5x100- you can use the OEM bearing or an FRS/BRZ wheel bearing. If you use the OEM wheel bearing then you must also run a cut axle spline in the bearing

"350z" 5x114 - this uses a 350z wheel bearing. you must also run this setup with a 350z rotor

*Wheel Bearing not included*

Please allow 3-4 weeks build time

The Mega Mantis Kit for the Subaru Impreza 2008-2014 fits all impreza and wrx models (sti has not been test fitted)

-Angle, 70 degrees depending on your wheel setup and length of control arms

-Tie-rods, Outer tie-rods  included, these fasten to the stock inner tie-rods

-Ackerman, adjustable Ackerman options from Positive - zero - negative

-Roll Center, optimized handling by adding 45mm of roll center correction

-Bump steer, perfected bump steer for drifting

-Caster, modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting

-Camber, optimized camber ranging from -3 to -6

-Track Width, 25-75mm wider per side creating a stable and high clearance front end

-Suspension Travel, long travel range, full lock to full lock at any point throughout  suspension travel for increased grip

-Joints, Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable

-Weight Reduction, compact drop knuckle design makes for a lightweight and strong design made from high strength alloy steel, 7075 aluminum used where possible which provides steel-like strength at 40% weight reduction.

 -The Kit includes everything needed to install, ABS sensors cannot be used on this kit, and ABS is not recommended for drifting, this kit is for offroad use only,

- You must use either an FRS/BRZ wheel bearing or you must cut the axle stubs and leave them installed in the OEM AWD bearing.

"350z" 5x114 - this uses a 350z wheel bearing. you must also run this setup with a 350z rotor

*Wheel Bearing not included*

Please allow 3-4 weeks build time

View this post on Instagram

A post shared by FDF Race Shop inc. (@fdfraceshop)

These arms are used to adjust your camber beyond what the factory camber bolt can do. primarily used when lowering the car (or lifting)

Features a very strong and light weight, alloy steel construction with options for softer/stiffer suspension points and sway bar points.

this product includes 2 arms, and all required hardware to install.

 The arms will also fit:

These arms are used to adjust your toe,  primarily used when lowering the car (or lifting)

Features a very strong and lightweight, alloy steel construction

this product includes 2 arms, and all required hardware to install.

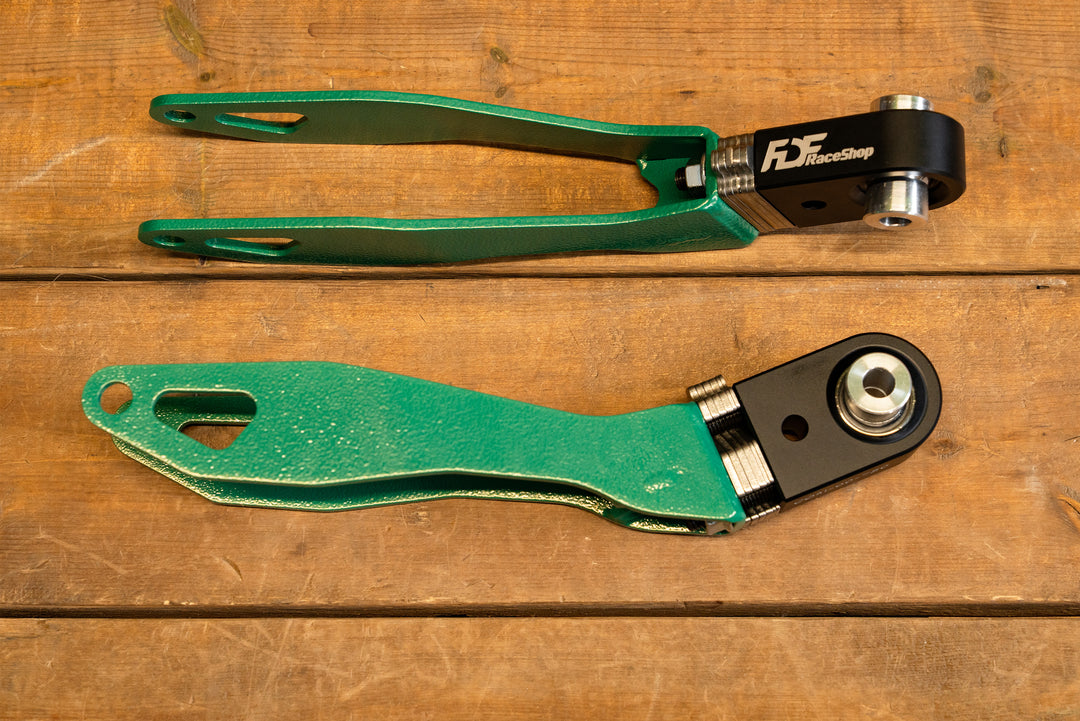

Adjustable Rear traction arms for BRZ/FRS/GT86

these arms are used to perfect your alignment, raising and lowering your chassis changes the anti-squat of the rear suspension, and also can move the wheel forward or backward in the wheel arch. with an adjustable traction arm, you can bring these parameters back in check for the best performance. The arms are constructed from high strength alloy steel, and are ON-CAR adjustable.

2" lift kit for Subaru

This kit is to be installed between your strut top and strut, the plates are offset, so you retain factory camber and caster. Studs and nuts are included

Required Multi-Link Spacers are provided with the kits ( this includes trailing arms, subframe & multilink for the corresponding year of your Subaru)

Production time varies depending on the vehicle, the longest wait time before shipping is 2-3 weeks.

INSTALLATION GUIDE FOR 2008+

The all new Universal Handbrake is here. This behind handle handbrake setup is perfect for any chassis, with easy mounting holes in the base. This design uses our new handle made out of 6061 Billet Aluminum, machined in house.

Pros to this design:

-Eliminates the side plate design we used to make

-Stronger mounting point for the rod end on the master cylinder

-Lighter, sleeker design

-New anodized black option

-Press fit ball bearings for smooth motion and zero side to side handle movement

Allow 2-3 week build time

The all new Universal Handbrake is here. This infront of handle handbrake setup is perfect for any chassis, with easy mounting holes in the base. This design uses our new handle made out of 6061 Billet Aluminum, machined in house.

Pros to this design:

-Eliminates the side plate design we used to make

-Stronger mounting point for the rod end on the master cylinder

-Lighter, sleeker design

-New anodized black option

-Press fit ball bearings for smooth motion and zero side to side handle movement

Allow 2-3 week build time

BR Series - The BC Racing BR Series offers the most affordable entry into coilover suspension without sacrificing performance, comfort, build quality, vehicle height, or handling. This is done by extensively testing each vehicle then refining the coilover characteristics as many times as needed to ensure the most well-balanced and affordable aftermarket suspension conceivable.

ER Series - The BC Racing ER Series Coilover System is the next evolution in your suspension tuning and vehicle setup needs. The ER Series offers 30-clicks of independently adjustable compression and rebound with remote reservoirs to increase oil capacity and help with faster heat dissipation.

Drift Spec Rate  - per chassis we have determined the perfect drift specification, which typically involves a different spring rate and in some cases, different valving. Choosing this option will guarantee

DRIFT SPEC IS BUILT TO ORDER 8-10 WEEKS

Standard Spec Rate - This option is what BC has determined to be the best natural choice for improved handling and performance all around.

Swift Spring- Swift springs are manufactured using superior engineering and have moved quickly through the ranks of motorsports and some of the world's most reputable races. Swift springs are the lightest in weight, strongest in durability, and highest in linearity of any spring on the market.

Rear Coilover option -  Many vehicles run a divorced style spring and shock setup in the rear. For example an E36/46 or a 350Z. Using this option you can select if you want to run your setup with the OEM divorced design or if you want to convert your car to a true rear combined coilover setup

2" lift kit for Subaru,

this kit is to be installed between your strut top and strut, the plates are offset, so you retain factory camber and caster. studs and nuts are included

Required Multi-Link Spacers are provided with the kits

INSTALLATION GUIDE FOR 2008+

Production time varies depending on the vehicle, the longest wait time before shipping is 2-3 weeks.

2" lift kit for Subaru,

this kit is to be installed between your strut top and strut, the plates are offset, so you retain factory camber and caster. studs and nuts are included

Required Multi Link Spacers are provided with the kits

INSTALLATION GUIDE

Production time varies depending on the vehicle, longest wait time before shipping is 2-3 week.

Introducing the FDF Sway Bar Kit, an innovative solution that simplifies the process of creating a custom sway bar for your race car. Our kit features precision-machined components, meticulously crafted in-house to ensure superior quality and performance. With this comprehensive kit at your disposal, you'll have everything you need to construct a custom sway bar, from start to finish.

The FDF Sway Bar Kit includes all the complex parts required to build a top-of-the-line sway bar, along with convenient links to help you source any additional materials you may require. Whether you prefer to purchase materials locally or through the McMaster-Carr website, we've got you covered.

To further assist you in customizing your sway bar, we offer a range of options to choose from. Simply refer to the detailed information provided below and select the options that best meet your specific needs.

For a visual demonstration of how our kit can be utilized in your build, we encourage you to check out our video link, showcasing how we used the FDF Sway Bar Kit in our C6 Corvette build.

Invest in the FDF Sway Bar Kit and take your race car to the next level of performance and precision.

Included Parts

-2 Female spline ends

- 2 Male Spline ends

- 4 locking bolts

- 2 blades (6",8" or 10")

Optional

-sway bar link kit

Need to purchase parts

- 2 Bushings

- sway bar material (4130 1.25x.120 tubing)

- housing material (DOM or 4130 1.75 x .120 tubing)

 Please allow 2-3 weeks for shipping

The FDF Toe Plates are the quickest and simplest way to measure toe at home or at the track.

You can choose to buy with or without two Lufkin measuring tapes.

Please allow 1 week before shipping.

Universal hood vents or send us an email for a custom size!

These Hood Vents ship to you as a flat pattern, the fins of the vent can easily be formed once the hood vent is installed, they are great for reducing engine bay temperatures and provide an aggressive look. they are made from 6061 B2 finished Aluminum

The standard size is

-26" tall
-30" wide top
-20.5" wide bottom

For Custom sizes you need to provide the following details

- how tall do you want it?

- how wide do you want the bottom?

- how wide do you want the top?

Steering column kit  includes the following:

 -Bolts to any 1.5 inch roll cage tubing

- 44" of steering shaft

- 1 column mount

- 1 sweet u-joint

- 1 firewall bearing

- 1 quick release "Option"

Our rigid tie-rod for the FDF Mantis kits.

Quantity- Price is for 1 tie-rod

Material- 7075 Aluminum

Benefits over regular tie-rods

• Very stiff design, does not flex like the thin steel tie-rods, this improves handling.
• Machined fail point to save your steering rack on impact.
• Stronger than steel but super lightweight.

We have 7 lengths that currently go with there corresponding angle kits, please select one of the 7 options for your kit:

3" long (m14x1.5 RH thread, and a 5/8-18 LH thread)

-Corvette C5/C6 Mini and Mild

4.5" long (m14x1.5 RH thread, and a 5/8-18 LH thread)

-Corvette C5/C6 Mega, Mustang S197, Genesis

4.5" long (5/8-18 RH thread, and a 5/8-18 LH thread)

- S550 Sway Bar Link

5.5" long (m14x1.5 RH thread, and a 5/8-18 LH thread)

-BMW E90

6.5" long (m14x1.5 RH thread, and a 5/8-18 LH thread)

- Mustang SN95, 350Z Regular (NO ORS), 370Z Mini, Corvette C7 Mega, JZX Mini, Cadillac, Subaru GE/GD

6.5" long (m16x1.5 RH thread, and a 5/8-18 LH thread)

- Mustang S550

6.5" long (5/8-18 RH thread, and a 5/8-18 LH thread)

- FRS Rear Toe Arms

8.5" long (m14x1.5 RH thread, and a 5/8-18 LH thread)

- BMW E36 Base, FRS/BRZ Base, 370Z Mild/Mega,

9.5" long (5/8-18 RH thread, and a 5/8-18 LH thread)

- 350Z Regular (With ORS), RX7 FC

10" long (m14x1.5 RH thread, and a 5/8-18 LH thread)

- BMW E46 Base

11.5" long (5/8-18 RH thread, and a 5/8-18 LH thread)

-S-Chassis, 350z Mega, Corvette (DCB) RTA, IS300/JZX, FRS/BRZ (Tierod Upgrade), BMW E36 (Tierod Upgrade)

12.5" long (5/8-18 RH thread, and a 5/8-18 LH thread)

-BMW E46 Mega (Tierod Upgrade)

13.5" long (5/8-18 RH thread, and a 5/8-18 LH thread)

- Corvette Pro Kit

Chromoly Housing, 3 piece high-performance Teflon race

Bearing Race: 3 piece teflon

Ball: heat treated, hard chrome plated bearing steel

Finish: bright polished chrome

Housing: 4130 heat treated chromoly steel

Application: Our Chromoly rod ends are ideal for automotive after market suspensions such as control arms, end links and ball joints.

Ultimate Static Load Rating 3/4 : 25,489 lbs

Ultimate Static Load Rating 5/8 : 19,751 lbs

The FK rod end bearings are the premium option for our angle kits that offer supior bearing life, extreme strength and a smooth feel. We offer them in 2 sizes, both left hand (LH) and right hand (RH).

The JMX10 is a PTFE lined 5/8-18 bearing with a yield strength of 17,959 lbs.

The JMX12 is a PTFE lined 3/4-16 bearing with a yield strength of 28,090 lbs.

FDF Raceshop Hats

1. Snapback, Black hat with white lettering

2. Snapback, Nardo Gray hat with white lettering

-Includes "race shop" on the drivers side

-Instant respect from the drift gods

-Comes in pair

-Universal fit

-High quality wrap sticker

Offering 100 seconds of fire fighting protection, E100 is recommended for industrial use. Element extinguishers are suitable for use on small fires and for protecting supplementary risks. Internationally tested and certified.

FEATURES

• 100 SECOND DISCHARGE
  Almost 10x longer than a 5lb fire extinguisher bottle


• COMPACT & EASY TO USE
  33cm (13") tall, 3.2cm (1.2") body diameter / 4cm (1.6") handle diameter, 360 grams (0.79lbs) weight
  Large images on unit guide easy 4-step activation process:
• MAKES NO MESS / LEAVES NO RESIDUE & ECO-FRIENDLY
  No mess, non-toxic, non-corrosive, environmentally friendly


• ZERO PRESSURE DISCHARGE
  Will not spread oil & liquid fires


• SAFE & MAINTENANCE-FREE
  No moving parts or compressed gas to ever service


• WEATHERPROOF and unaffected by extreme temperature, humidity, or vibration. Safe to store in wet environments.
  Element can safely be stored in hot climates


• MADE IN ITALY


• FIGHTS ALL MAJOR FIRE CLASSES
  INCLUDING COOKING OIL & GREASE FIRES
  *Not recommended for outdoor live coal fires (ie. wood campfires or logs)



INCLUDES

• E100 extinguisher with high visibility striker and cap
• One (1) Mounting clip included
