Corvette C5/C6 Assembly Spare Parts

$665.43

Parts list

Prices in CAD currency

#1R	*Corvette C5/C6 Knuckle Assembly (RIGHT)*	$585.99
#1L	*Corvette C5/C6 Knuckle Assembly (LEFT)*	$585.99
#2	*Corvette C5/C6 Upper Control Arm*	$269.99
#3R	C5/C6 Lower Control arm Assembly (RIGHT)	$769.99
#3L	C5/C6 Lower Control arm Assembly (LEFT)	$769.99

Corvette C5/C6 Knuckle Assembly Spare Parts

$1.26

Parts list

Prices in CAD currency

#1	*1/2 - 20 Nylock nut x1*	$1.10
#2	*1/2 -20 x 3.5 Yellow zinc bolt x1*	$1.60
#3	*1/4 - 20 Nylock nut x1*	$0.30
#4	*5/8 Spacer x1set*	$5
#5	*C5 Tie-rod extension x1*	$45
#6	*5/8 - 18 Jam nut x1*	$0.60
#7	*5/8 - 18 Chromoly Heim joint x1*	$21.99
#8	*1/4 - 20 x 3/4 Bolt x1*	$0.30
#9	Ackermann Plates x1	$5
#11	*M14 x 2 - 80mm x1*	$2.75
#12	*M14 x 2 Nylock nut x1*	$1
#13	*M12 x 1.25 - 70mm x1*	$1.95
#14	Brake Caliper bolt-on bracket x1	$45
#15	*M12 x 1.25 Flange nut x1*	$0.75
#16R	*Corvette C5/C6 Knuckle x1*	$420
#16L	*Corvette C5/C6 Knuckle x1*	$420

Corvette C5/C6 Knuckle Assembly Spare Parts

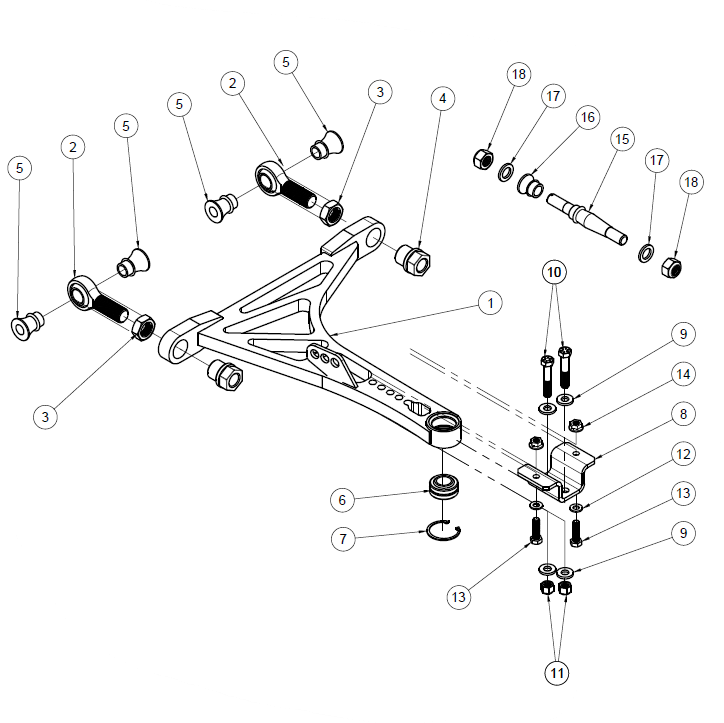

Corvette C5/C6 Lower Control Arm Assembly Spare Parts

$437.19

Parts list

Prices in CAD currency

#1R	*C5/C6 Lower Control Arm x1*	$385
#1L	*C5/C6 Lower Control Arm x1*	$385
#2	*3/4 - 16 Chromoly Heim joint 1x*	$24.99
#3	*Lower Control arm Link 1x*	$25
#4	*Lower Control arm Spacers x1set*	$10
#5	*3/4 - 16 Jam nut x1*	$1
#6	*3/4 - 16 x 1 3/4 Solid heim x1*	$25.99
#7	*5/8 - 18 x 2 Yellow zinc bolt x1*	$2.50
#8	*M8 Washer x1*	$0.30
#9	*M8 - 1.25 nut x1*	$0.50
#10	*3/4 Spacers x1set*	$8
#11	*M8 - 1.25 x 70mm Bolt x1*	$1.40
#12	*5/8 - 18 Nylock nut x1*	$1.30
#13	*Lower Control arm plates x1*	$20
#14	*3/8 - 16 x 2 Bolt x1*	$1.30
#15	3/8 Washer x1	$0.30
#16	3/8 Nylock nut x1	$0.25

Corvette C5/C6 Lower Control Arm Assembly Spare Parts

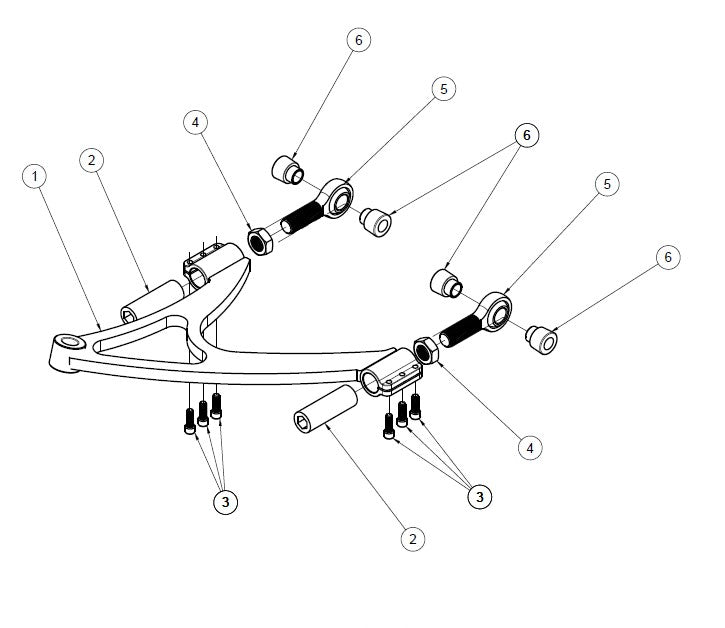

Corvette C5/C6 Upper Control Arm Assembly Spare Parts

$181.69

Parts list

Prices in CAD currency

#1	*C5/C6 Upper Control Arm x1*	$176.40
#2	*UCA Chassis Mount x1*	$33.08
#3	*1/2 - 20 x 3 Yellow zinc bolt*	$1.88
#4	*1/2 Washer x1*	$0.56
#5	*5/8 Heim joint spacers x1set*	$5.51
#6	*1/2 - 20 Nylock nut x1*	$0.56
#7	*3/4 - 16 Jam nut x1*	$1.10
#8	*3/4 - 16 Chromoly Heim joint x1*	$27.55
#9	*5/8 - 18 Chromoly Heim joint x1*	$24.24
#10	*5/8 - 18 Jam nut x1*	$0.66
#11-12	*3/4 - M14 Spacers x1set*	$8.82

Corvette C5/C6 Upper Control Arm Assembly Spare Parts

Chromoly Heim Joint

$52.87

Chromoly Housing, 3 piece high-performance Teflon race

Bearing Race: 3 piece teflon

Ball: heat treated, hard chrome plated bearing steel

Finish: bright polished chrome

Housing: 4130 heat treated chromoly steel

Application: Our Chromoly rod ends are ideal for automotive after market suspensions such as control arms, end links and ball joints.

Ultimate Static Load Rating 3/4 : 25,489 lbs

Ultimate Static Load Rating 5/8 : 19,751 lbs

FK Rod End/ Heim Joint

$47.23

The FK rod end bearings are the premium option for our angle kits that offer supior bearing life, extreme strength and a smooth feel. We offer them in 2 sizes, both left hand (LH) and right hand (RH).

The JMX10 is a PTFE lined 5/8-18 bearing with a yield strength of 17,959 lbs.

The JMX12 is a PTFE lined 3/4-16 bearing with a yield strength of 28,090 lbs.
