Educational Toe Tool

FDF Raceshop Educational Displays exist to make suspension theory click. Each one is a working model you can pick up and move with your hands, so instead of reading about a concept or watching a simulation, you watch it happen in front of you. Sits well on a desk, a shop bench, a trailer shelf, or a classroom table.

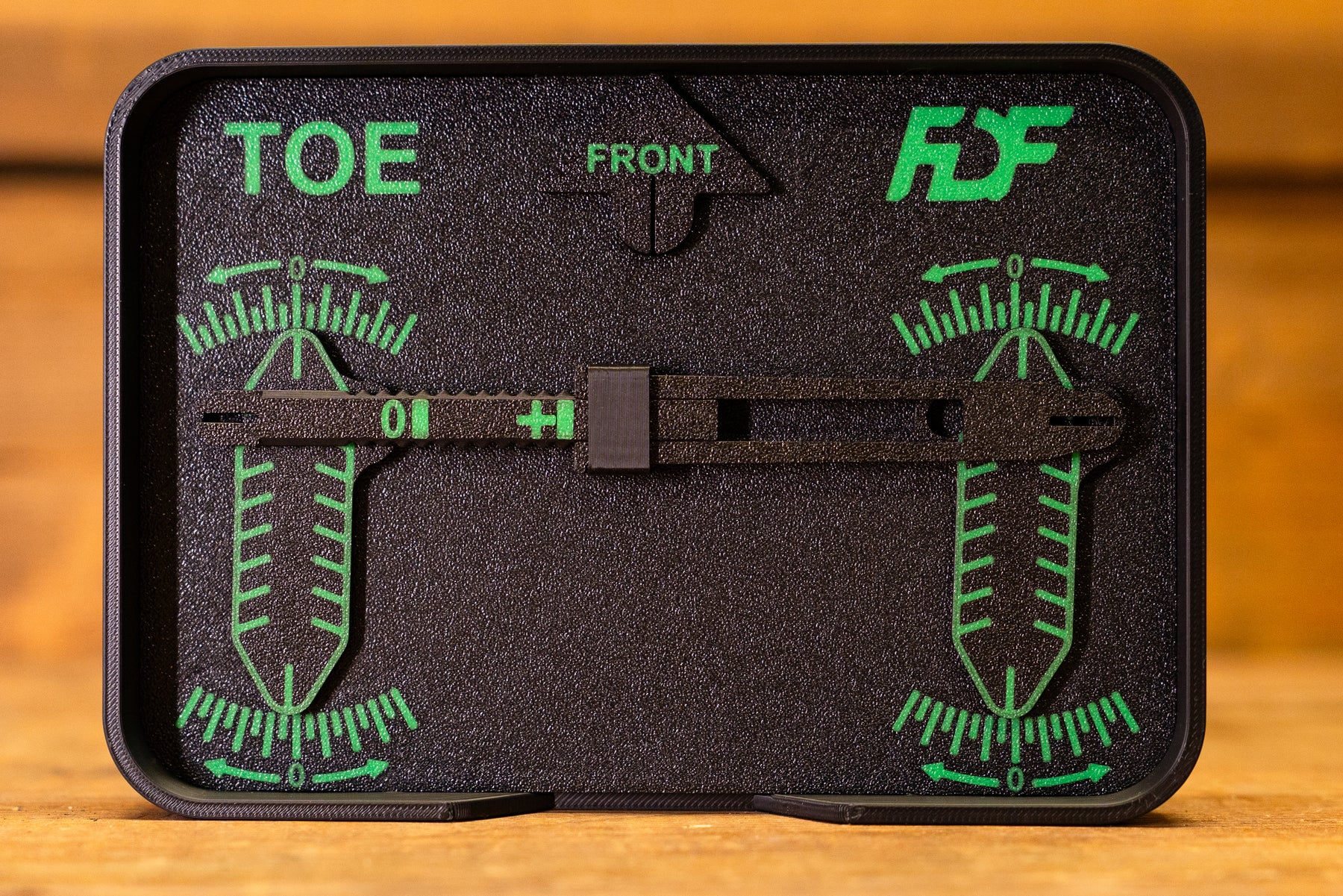

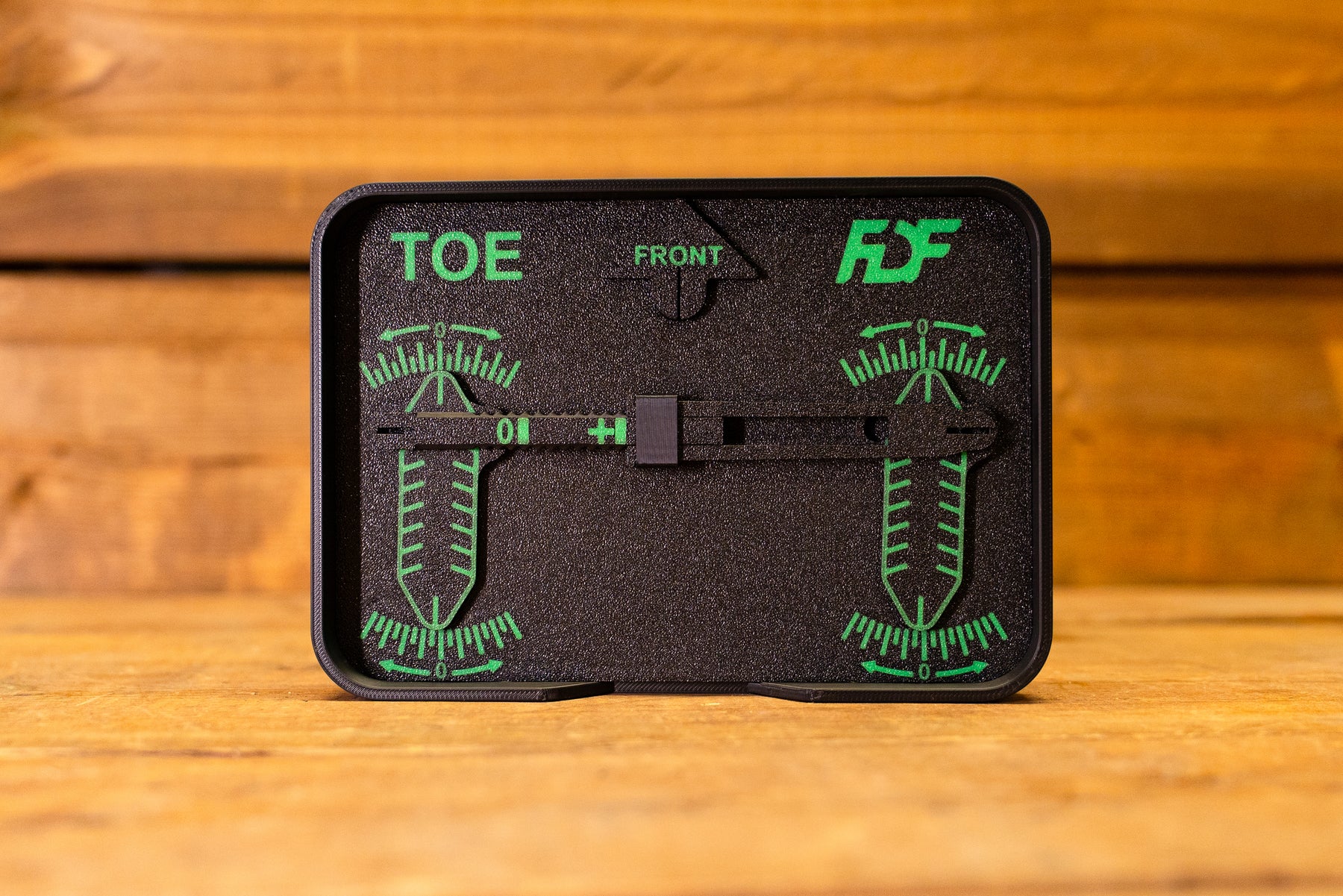

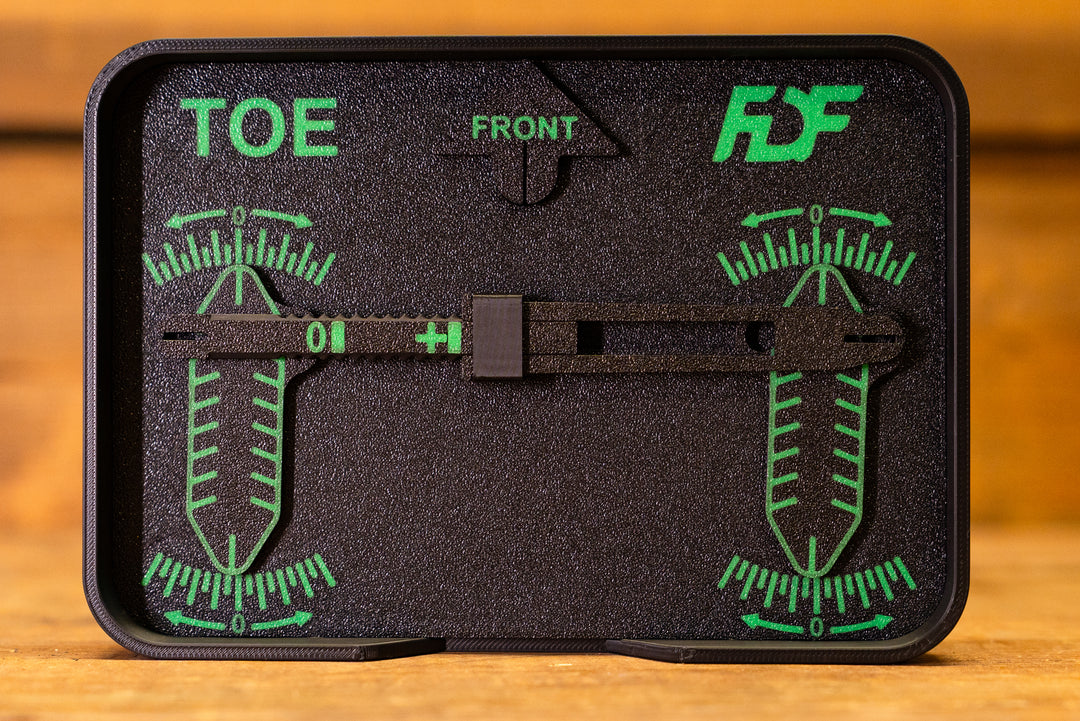

Toe is the angle that dictates whether your tires are pointing inward or outward relative to the centerline of the chassis, massively impacting straight-line stability, turn-in response, and tire wear. But visualizing how both sides interact through the steering linkage can be tricky. This display gives you a functional top-down model of a front axle to manipulate. Adjust the central tie-rod linkage and watch the needles sweep across the independent left and right toe gauges, showing you exactly how total toe-in or toe-out is achieved.

All of it adjusts to let you experiment. You can slide and lock the central link to alter the baseline geometry, watching firsthand how changing the linkage length dictates the tires' directional path. What you walk away with is a clear picture of how toe angles affect handling, and why even a fraction of a degree makes the difference between a darting, unstable front end and a perfectly planted one. It's a teaching aid rather than a setup tool, so it won't tell you exactly how much toe to run on your own car. What it does is take the mechanics behind steering alignment and make them completely obvious.

Available in Two Options:

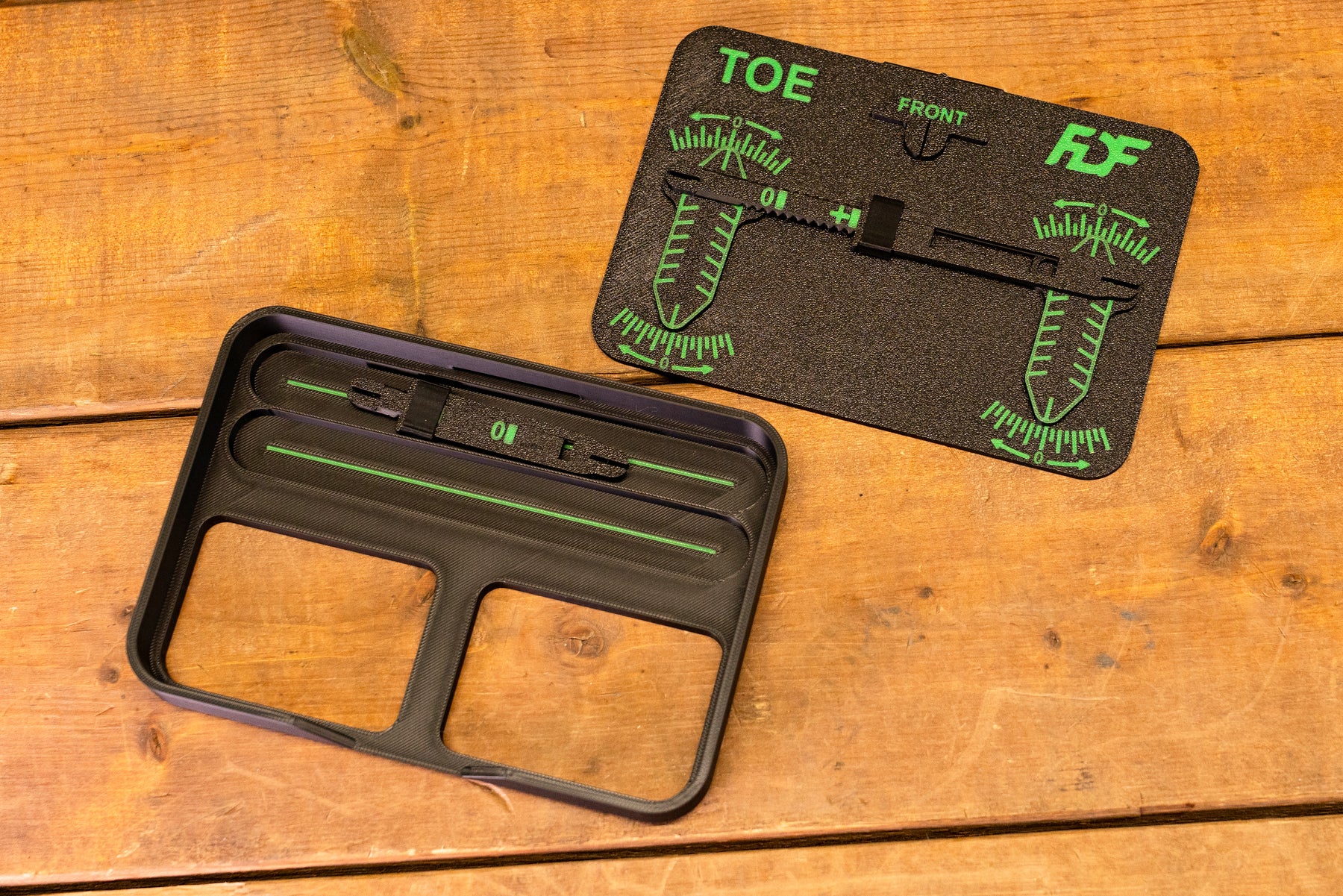

• Physical Display Tool: Shipped to your door fully printed, assembled, and ready to use right out of the box. Perfect for shop owners, driving instructors, or anyone who wants the finished, high-quality model immediately.

• 3D Print Files (Digital Download): Have your own 3D printer? Purchase the digital files and print the display yourself. Files will be sent to your email after purchase. Making it a great option for makers, engineering students, or international builders looking to skip the shipping costs. Includes all necessary files to print and assemble your own working camber model.

Personal Use Only License:
By purchasing this file, you are granted a non-transferable, non-commercial license to download and 3D print this model for your personal use.

You may NOT:
– Resell or redistribute the digital file
– Upload, share, or post the file on any website, including free STL sites
– Sell physical prints of this file
– Modify the file for the purpose of resale

All designs remain the intellectual property of FDF Raceshop.
