FDF Raceshop Educational Displays exist to make suspension theory click. Each one is a working model you can pick up and move with your hands, so instead of reading about a concept or watching a simulation, you watch it happen in front of you. Sits well on a desk, a shop bench, a trailer shelf, or a classroom table.

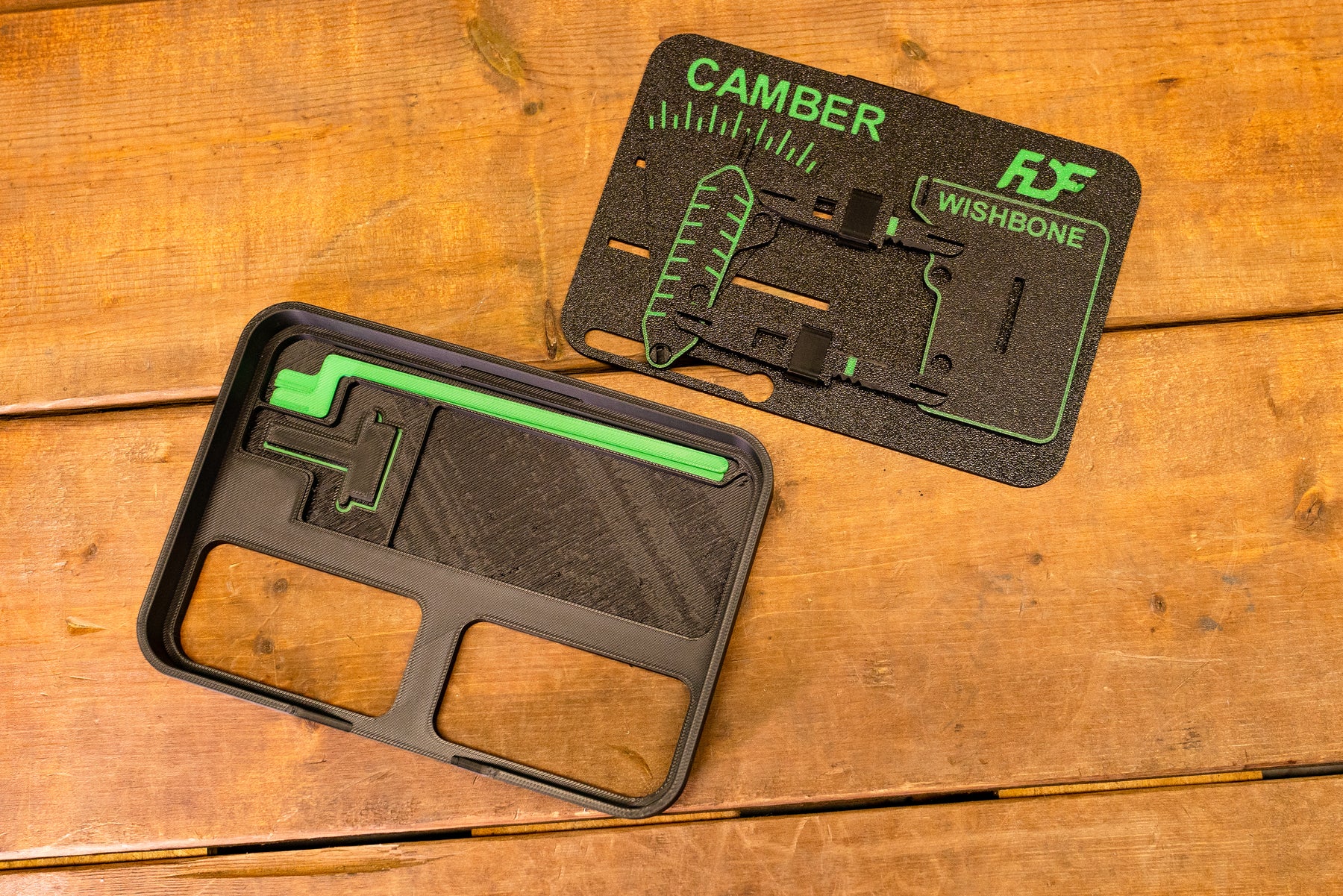

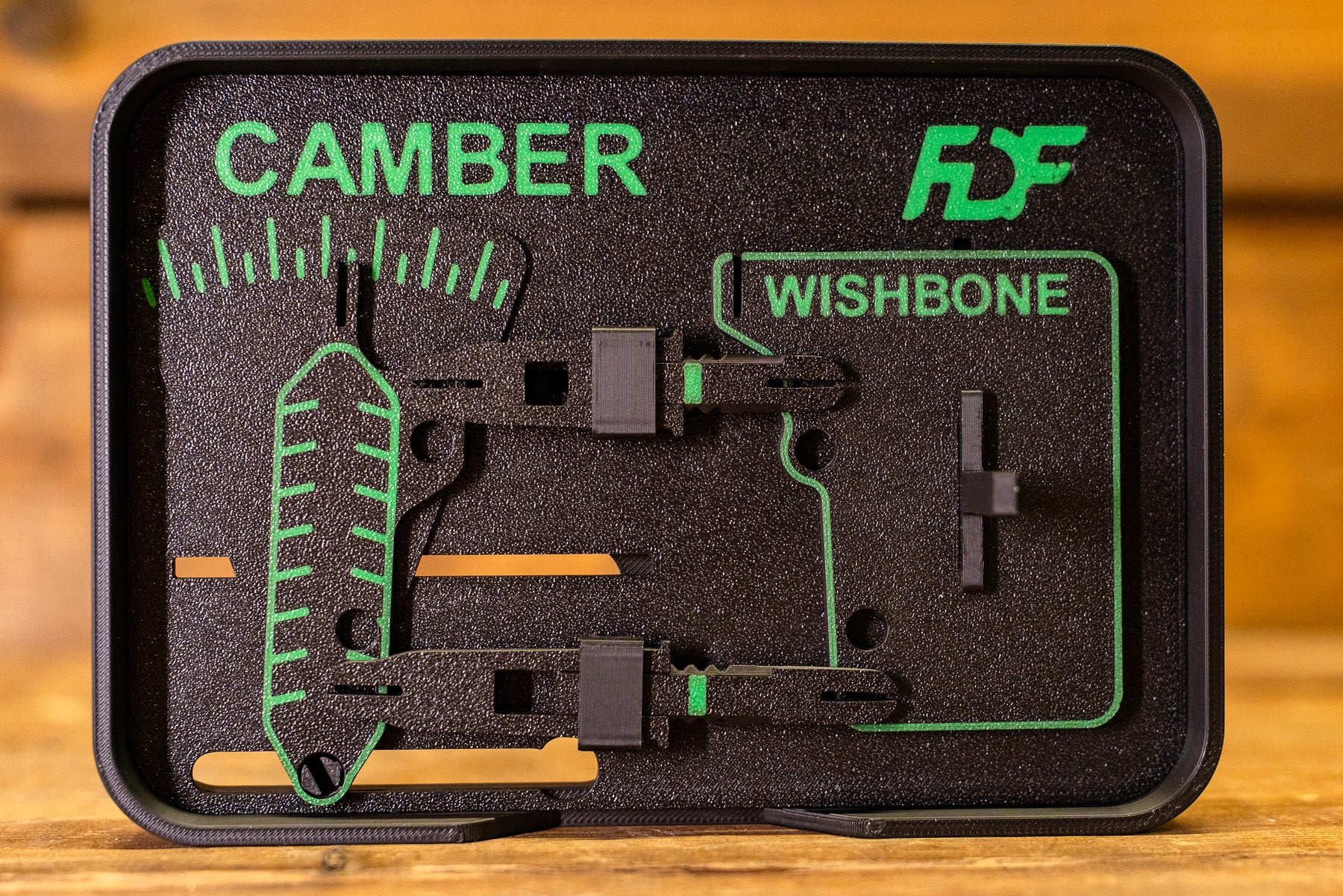

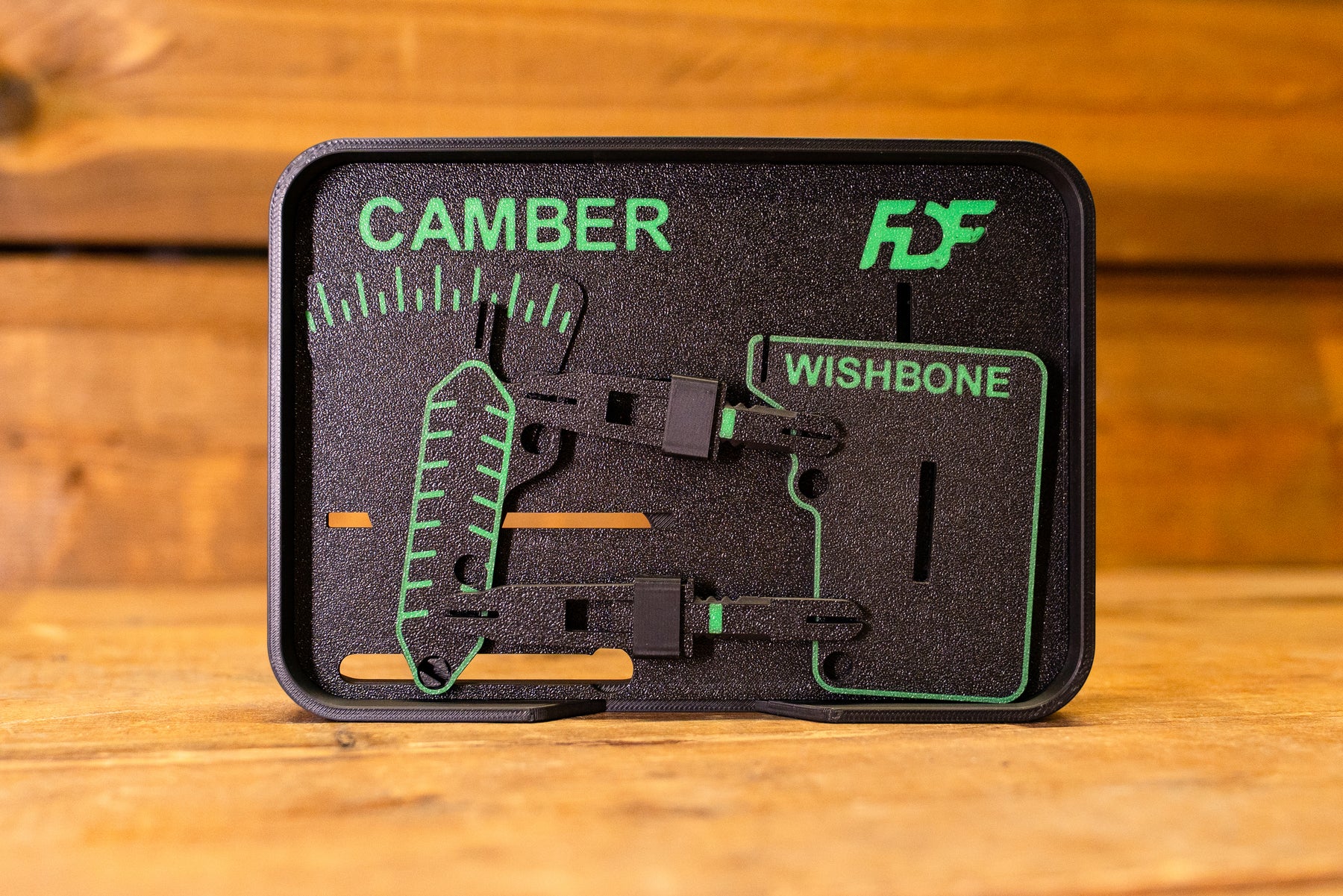

Camber is the angle that dictates your tire's contact patch during cornering, but static alignment only tells a fraction of the story. The real secret to grip is the camber curve—how that angle changes as the suspension compresses and droops. This display gives you a functional double wishbone setup to manipulate. Move the upright through its travel and watch the needle sweep across the built-in camber gauge, showing you exactly how dynamic camber behaves when the car rolls into a corner.

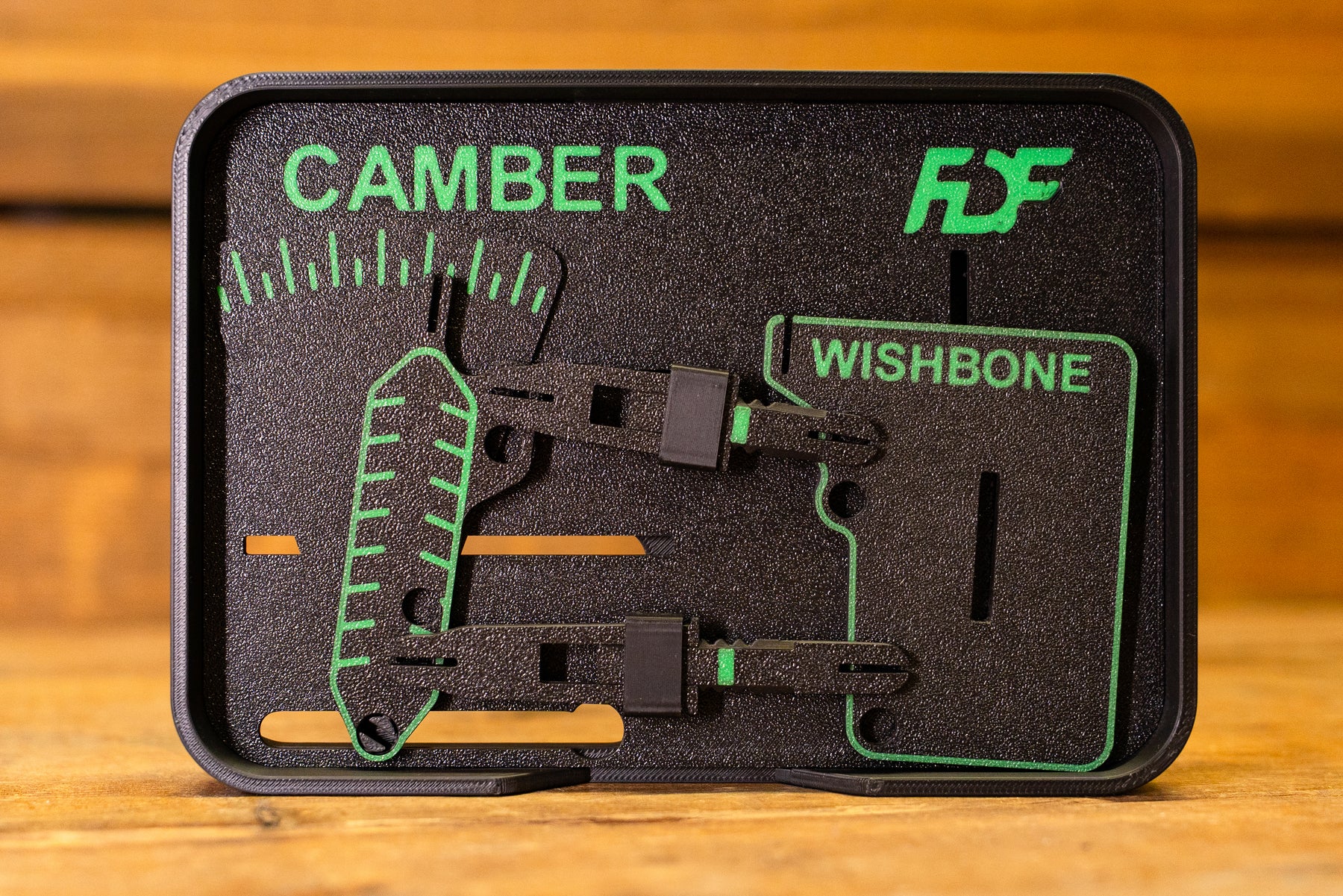

All of it adjusts. You can independently slide and lock the length of the upper and lower wishbones to alter the baseline geometry, watching firsthand how unequal arm lengths control camber gain during suspension travel. What you walk away with is a clear picture of how suspension arcs dictate grip, and why a static alignment printout doesn't mean much if your control arms are fighting each other under load. It's a teaching aid rather than a setup tool, so it won't tell you the exact arm lengths to run on your own car. What it does is take the guesswork out of suspension kinematics and make the mechanics behind a massive contact patch completely obvious.
Available in Two Options:
Physical Display Tool: Shipped to your door fully printed, assembled, and ready to use right out of the box. Perfect for shop owners, driving instructors, or anyone who wants the finished, high-quality model immediately.

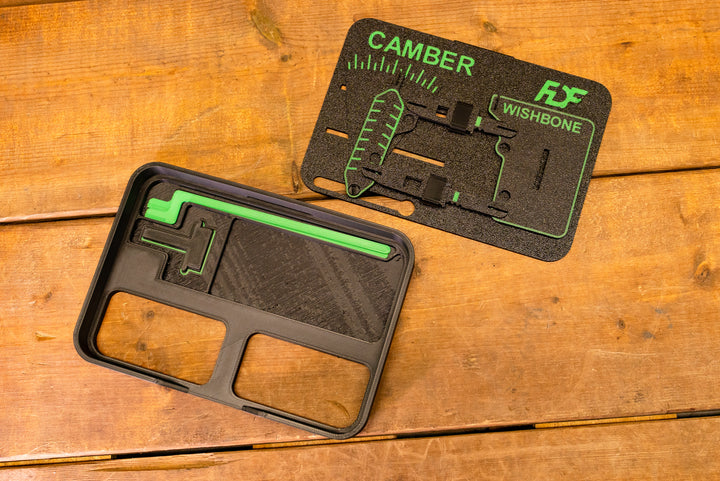

3D Print Files (Digital Download): Have your own 3D printer? Purchase the digital files and print the display yourself. Files will be sent to your email after purchase. Making it a great option for makers, engineering students, or international builders looking to skip the shipping costs. Includes all necessary files to print and assemble your own working camber model.
Personal Use Only License:
By purchasing this file, you are granted a non-transferable, non-commercial license to download and 3D print this model for your personal use.
You may NOT:
– Resell or redistribute the digital file
– Upload, share, or post the file on any website, including free STL sites
– Sell physical prints of this file
– Modify the file for the purpose of resale
All designs remain the intellectual property of FDF Raceshop.
