Seminar Session Recording : 3D scan to part design masterclass
If you are looking to design parts from 3D scans, this is the seminar for you.
Forget the frustration of mesh alignment tools that leave your measurements off by a mile. This two hour recording features Josiah Fallaise breaking down over a decade of professional reverse engineering experience into a clear, high-level workflow.
Whether you are building one-off custom pieces or developing products for manufacturing, this session gives you the roadmap to turn messy scan data into perfect CAD models.
What to Expect in this Design Time:
This isn’t a basic tutorial. It is a deep dive into a perfected process built through thousands of scans. You will see exactly how to:
-
Master Alignment: Why standard software fails and how to use sketch constraints to get your parts perfectly square to the origin.
-
Work Faster: How to manage massive mesh files in Fusion without your computer locking up.
-
Pick Better References: Learn which factory features are reliable and which ones will trick you.
-
Simplify Design: A look at creating tabs for easy welding and using sheet metal tools for complex bends.
-
Manage Projects: How to use a prototype space to test ideas before committing to final part numbers.
-
Study Motion: Use your data to check suspension changes like toe and camber throughout travel.
The Project

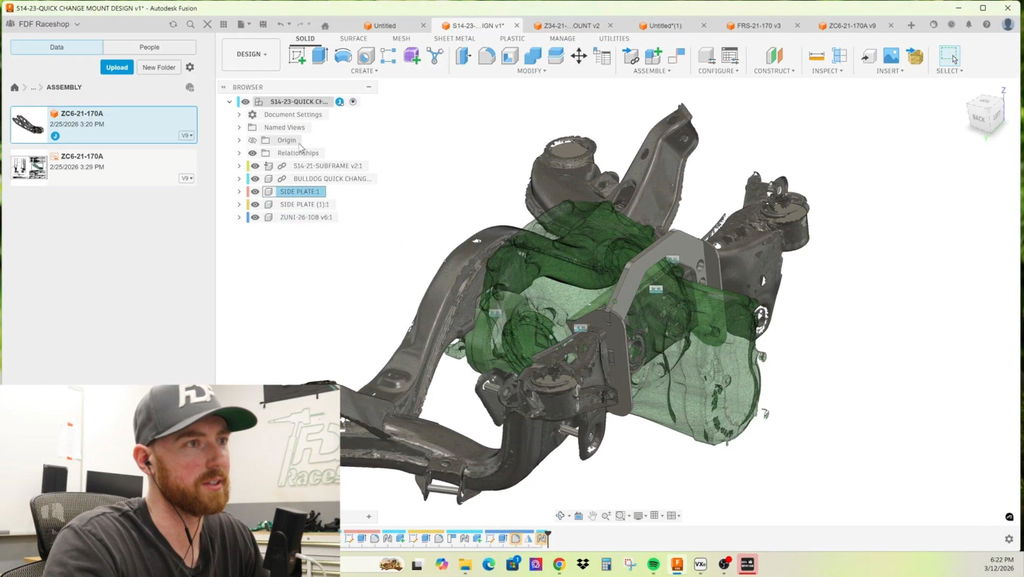

To keep things practical, Josiah walks through the entire logic using a Nissan 370Z rear subframe. You will watch the step by step process of fitting a quick-change differential into that scanned environment, ensuring everything is centered and ready to build.
Who This Is For
-
Fabricators fitting aftermarket parts into factory chassis.
-
Product Designers moving from scans to laser-cut parts with total confidence.
-
Engineers tired of the struggle who want their designs to fit perfectly the first time.
Ready to fix your scan-to-design workflow?
Note: Webinar link will be shared with the email provided at the time of purchase within 48 hours purchase.
