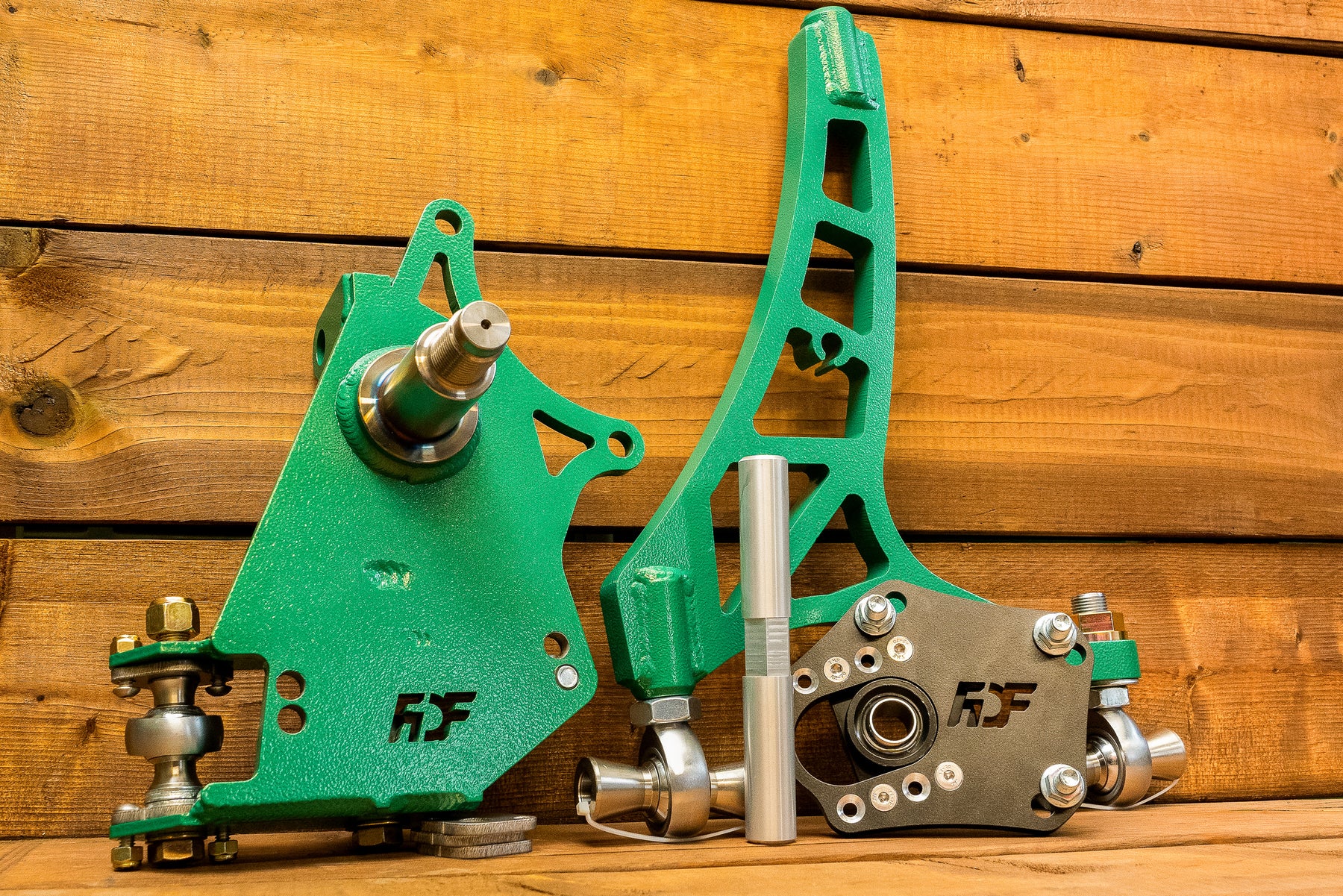

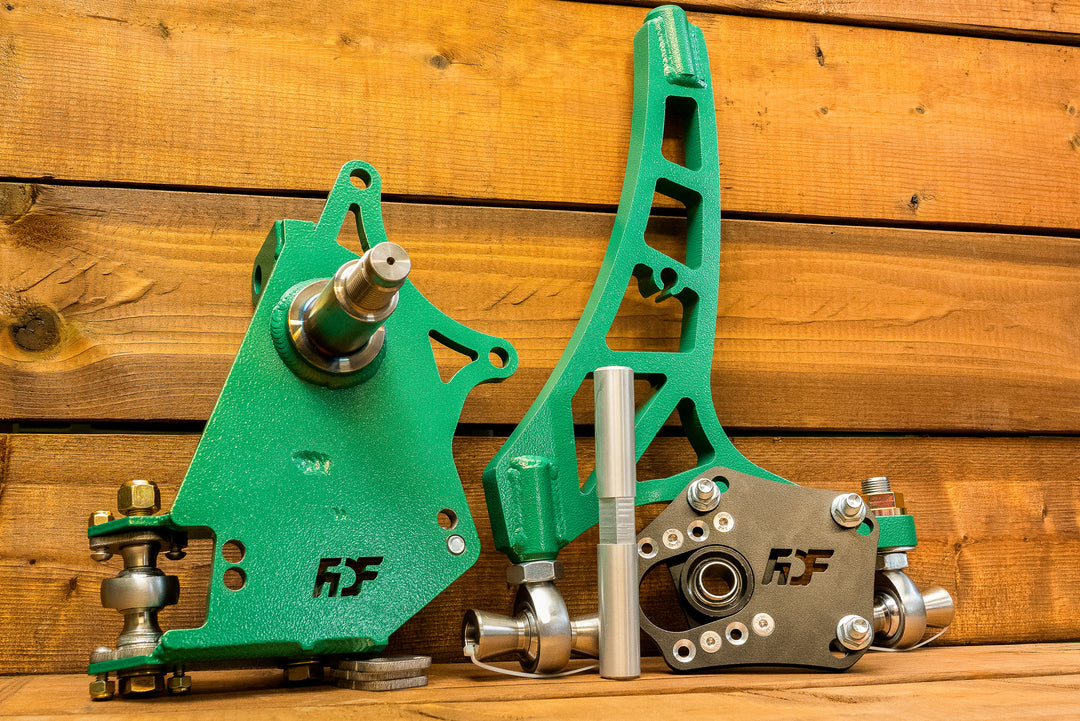

Ford Mustang SN95 Mega Mantis Angle Kit

Just like the rest of the Mega Mantis lineup, this kit gives your SN95 everything it needs for serious angle and dialed front-end response.

It uses a full knuckle design with OEM spindle pickup, so geometry stays proper and predictable. The lower control arms come with smooth adjusters to make alignment changes quick and easy, whether you're at the shop or the track.

You can also upgrade with our caster plates for even more fine-tuning and front-end control.

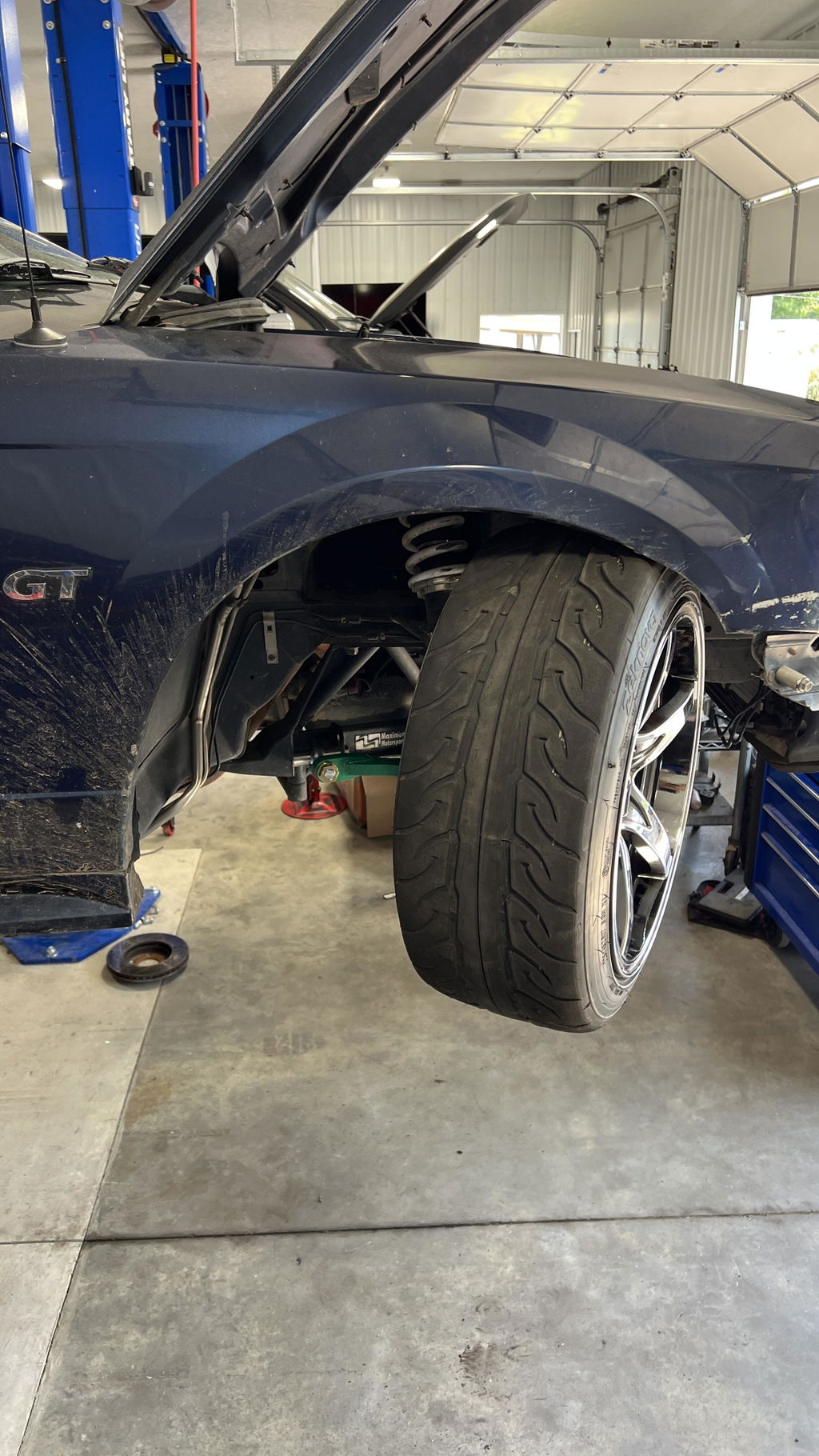

Simple, tough, and built to perform. This kit transforms the way your SN95 drives.

Key Features:

• Angle: 65+ degrees.
• Ackermann: Anti/Pro ackermann adjustable.
• Roll Center: 50mm Roll center adjustment.
• Bump steer: Minimal bump steer in drift by perfecting tie-rod pitch angle.
• Caster: Optimized caster for lead and trail wheel contact, with built-in trail to the knuckle.
• Camber: Optimized camber to counteract caster at full lock.
• Track Width: Adjustable range from 50mm-75mm wider per side creating a stable and high clearance front end.

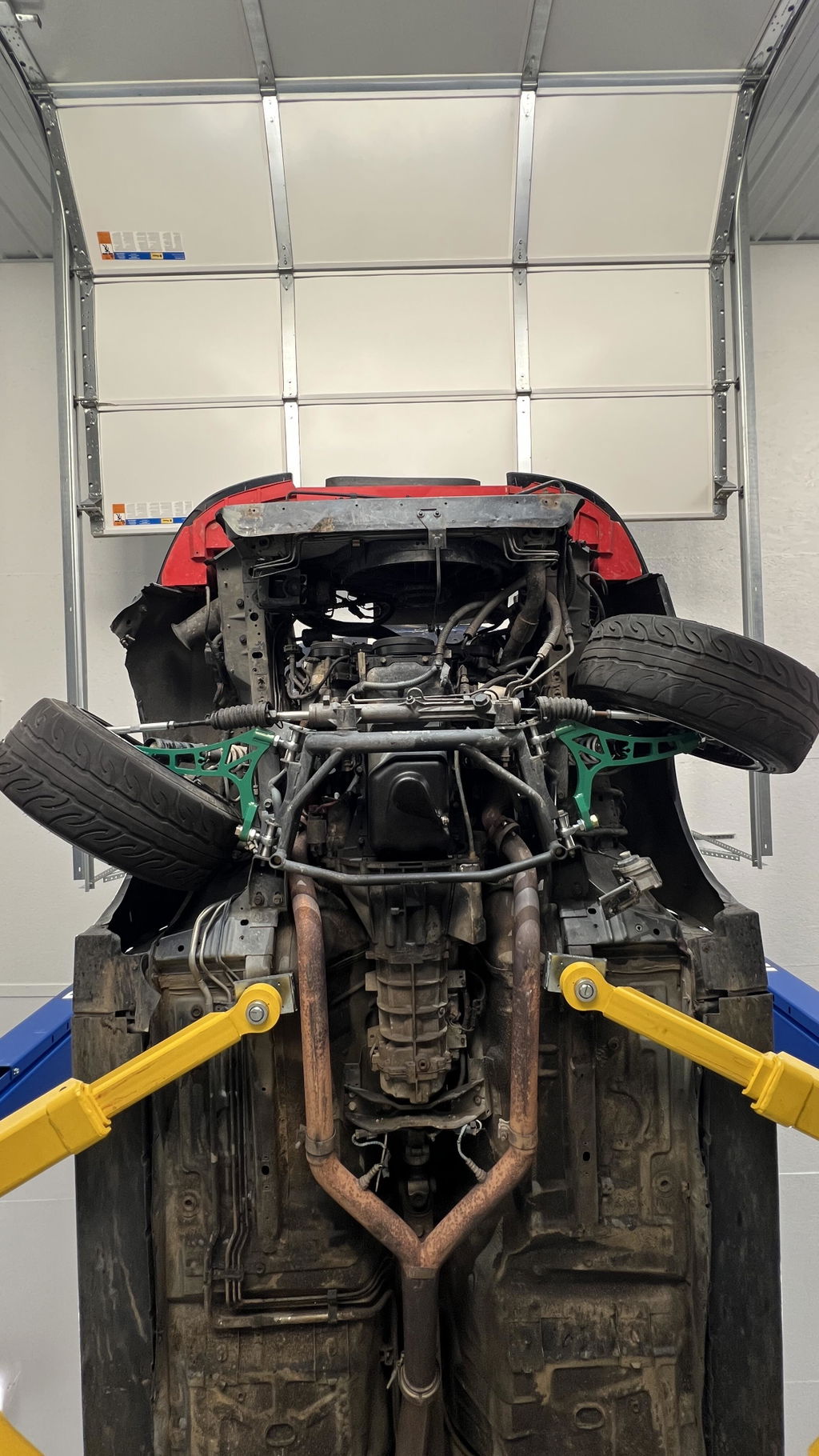

• Suspension Travel: Long travel range, full lock to lock at max droop and max compression.
• Joints: Chromoly 3 piece Heim joints, and spherical bearings.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

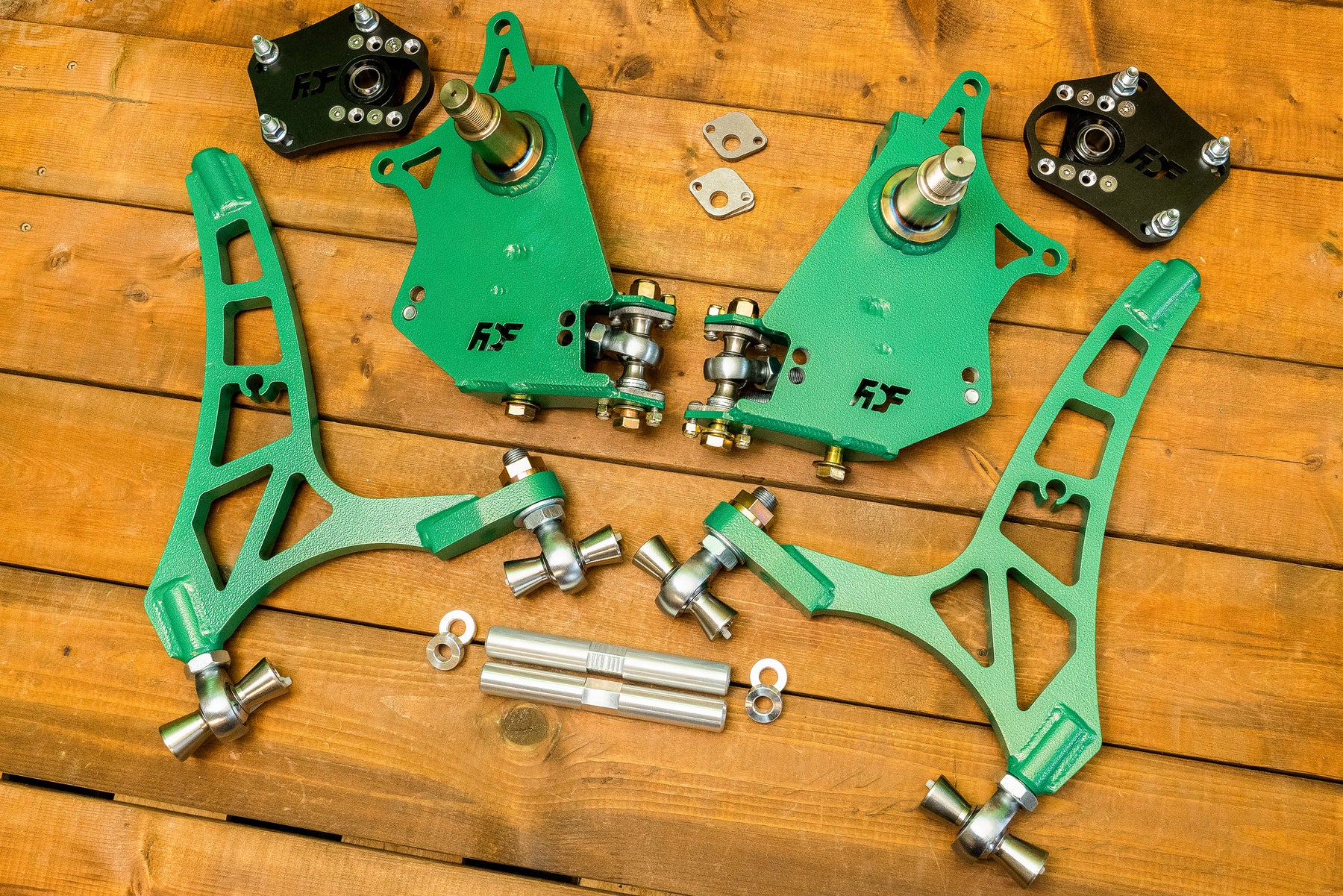

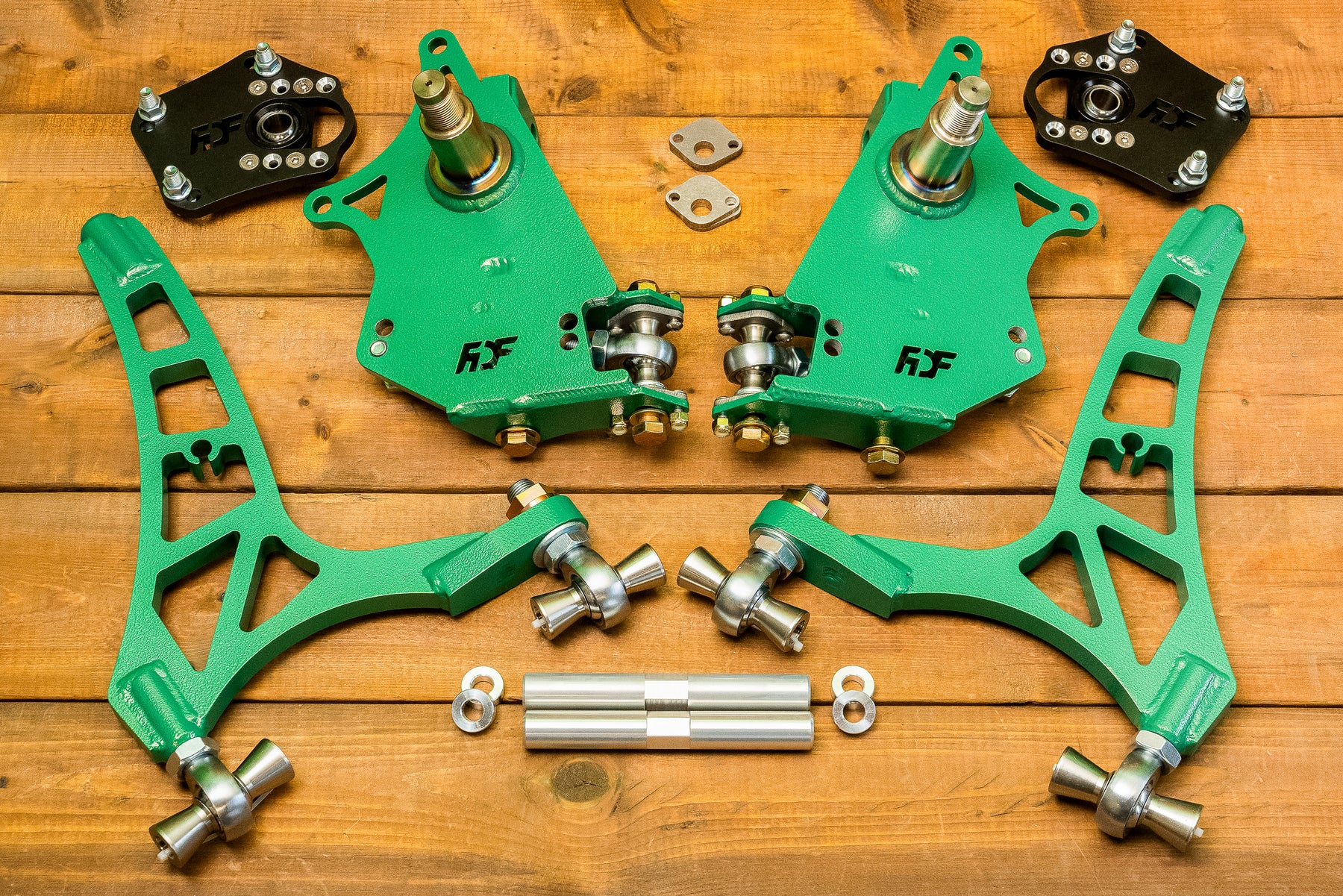

Includes:

• 2 - mantis LCA
• 2 - knuckles

• 2 - outer tie rods

• All hardware required for install included

Camber/Caster Plates: These are used to reduce high caster, camber, and KPI angles of the SN95 chassis by moving the top of the coilover forward and outward, it is recommended to select the caster plates if you do not already have a solution to make these adjustments, there are other plates available on the market as well. Installing our caster plates will require some cutting of the chassis and minor welding because when the strut is relocated forward and outward, it will interfere with some sheet metal parts of the chassis, the sheet metal it interferes with needs to be cut and removed.

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2-3 weeks for fabrication before shipping.

Note: Will fit a Foxbody, but you will need Foxbody Caster Plates

Note: Subframe shaving for clearance with lower control arms may be required.

Installation Manual

Spare Parts

FORD MUSTANG SN95 MEGA MANTIS ANGLE KIT KNUCKLE SPARE PARTS ASSEMBLY
