Ball: heat treated, hard chrome plated bearing steel
Finish: bright polished chrome
Housing: 4130 heat treated chromoly steel
Application: Our Chromoly rod ends are ideal for automotive after market suspensions such as control arms, end links and ball joints.
Ultimate Static Load Rating 3/4 : 25,489 lbs
Ultimate Static Load Rating 5/8 : 19,751 lbs

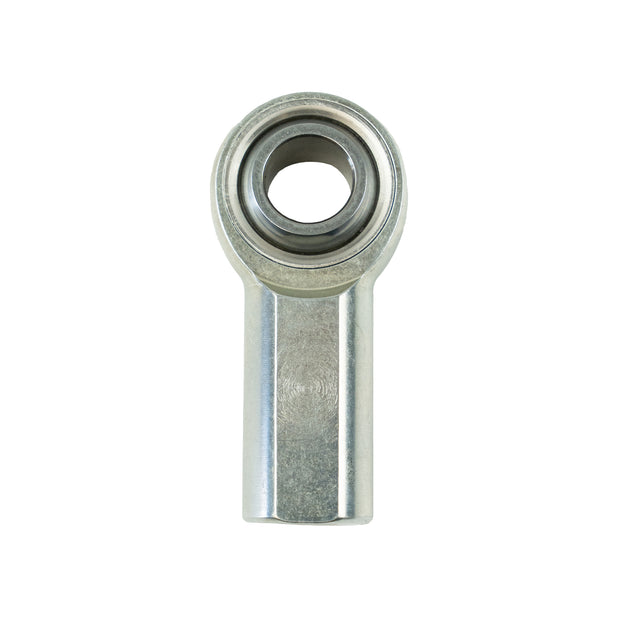

FK Rod End/ Heim Joint
The FK rod end bearings are the premium option for our angle kits that offer supior bearing life, extreme strength and a smooth feel. We offer them in 2 sizes, both left hand (LH) and right hand (RH).
The JMX10 is a PTFE lined 5/8-18 bearing with a yield strength of 17,959 lbs.
The JMX12 is a PTFE lined 3/4-16 bearing with a yield strength of 28,090 lbs.

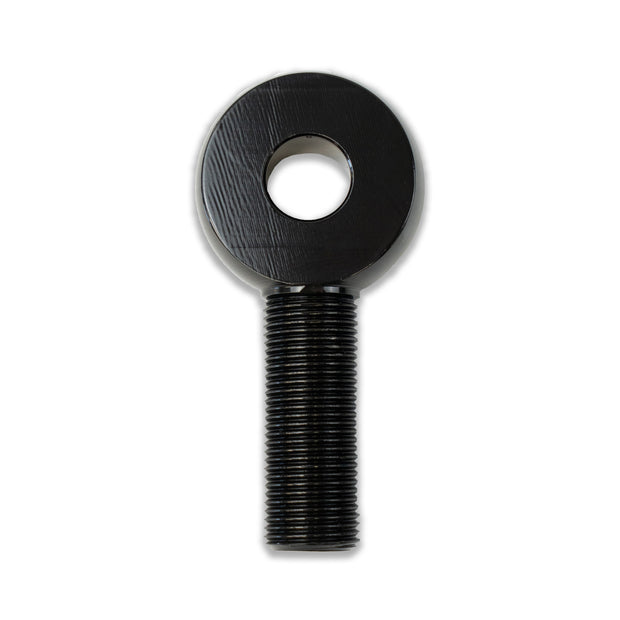

Solid Heim joint/rod end
3/4-16 Solid heim joint, commonly used for joint applications that need to be clamped instead of a free range of motion joint.
Chromoly Cup Kit
Kit Includes: One uniball cup (machined tubular bushing), one uniball bearing (spherical plain bearing), and one snap ring
Uniball Bore: 3/4 bore
Cup OD: 1.750 inch
Cup ID: 1.4375 inch
Cup Height: 1.169 inch
Cup Material: 4130 Chrome Moly
Other Common Names: Weldable monoball, spherical plain bearings, com bearing
Applications: Spherical Plain Bearings are used as sway bar end links, linkage ends and control arms. The Uniball/spherical plain bearing housing is plated, so instead of being welded to a connecting bar or connecting tube, the spherical plain bearings are held within a control arm housing or tubular bushing with snap rings. A ball stud or mounting stud is normally assembled thru or staked into the i.d. of the ball.
3/4-16RH thread with a 1" hex in the center and a 3/4-16LH thread made from 4140 chromoly and zinc plated
commonly used for adjusting the length of control arms, another name for these are ladder adjuster.
Adjustable Link (tierod)
-Choose your size & length
Heim Joint Spacers/Misalignment spacers
We are offering - high misalignment spacers for heim joints/rod ends/rose joints
we machine these from stainless steel for all of our products and have an inventory of 10 000 spacers in various sizes. Simply select the hole size you need, the heim joint size you are using (5/8 or 3/4), and put in the notes of the order, the overall width you need (overall width is the combined spacing you need for your application)
the price is per pair of spacers (2) because for any application you will need 1 spacer on either side of the heim joint.
