NISSAN S-CHASSIS MEGA MANTIS ANGLE KIT

This is one of our originals—been around since day one and fine-tuned over the years with input from plenty of pro-level drivers.

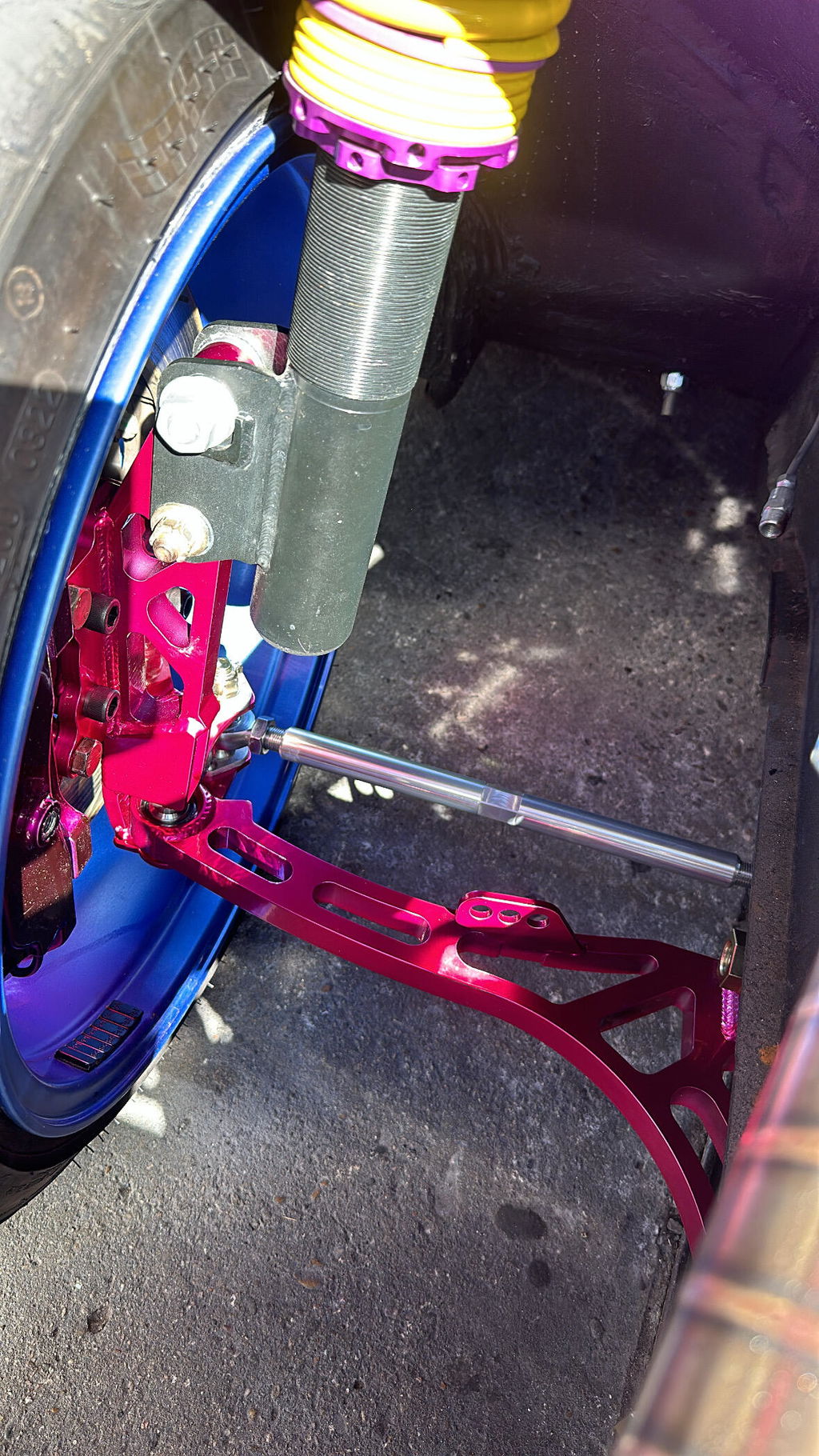

It’s a full knuckle design that lets you choose between the OEM spindle or a 350Z bearing for easy part swaps. The lower control arms come fully adjustable right on the car with our smooth adjusters, making quick tuning a breeze.

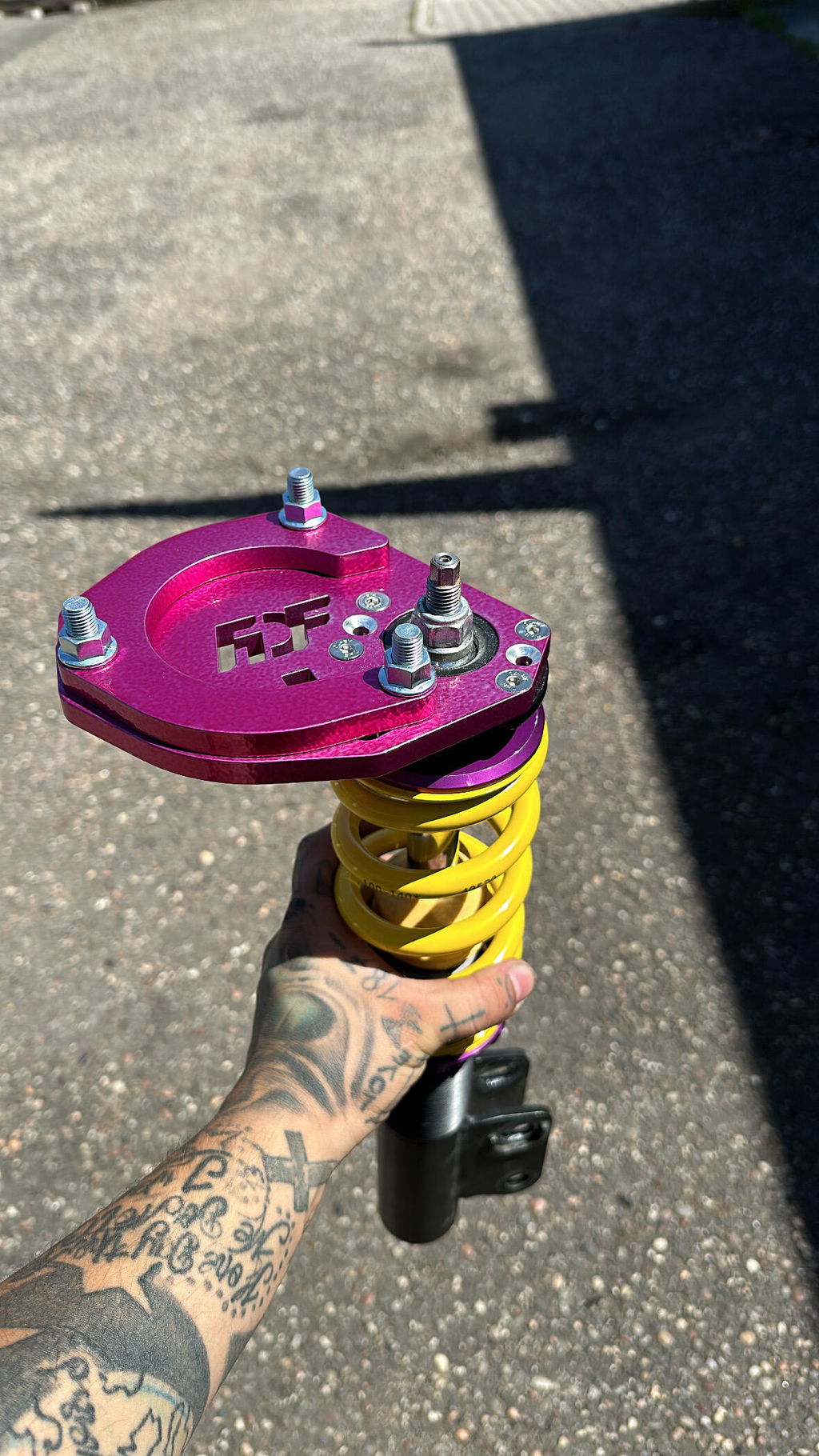

Plus, it includes the FDF top plates because, honestly, you need those for the best caster/camber adjustments and front-end control.

Let us know if you have a relocated steering rack because then you won't need the offset rack adaptors.

Key Features:

• Adjustability: Our innovative lower control arm design introduces on-car fine-tuning for caster and camber.
• Angle: 70+ degrees depending on your steering rack setup.
• Ackermann: Adjustable Ackermann.
• Roll Center: Optimized handling by adding 50mm of roll center correction.
• Bump steer: Minimal bump steer in drift by perfecting tie-rod pickup location.
• Caster: Displaced caster built into the knuckle for optimal alignment force.
• Camber: Optimized camber ranging from adjustable from -3 to -6.
• Track Width: 50-75mm wider per side creating a stable and high clearance front end. (Recommend front over fenders).
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Durable & Reliable: High Strength Alloy Steel and Aluminum is used throughout all components.

Choose the options according to your preferences or send us an email if you need help deciding sales@fdfraceshop.com.

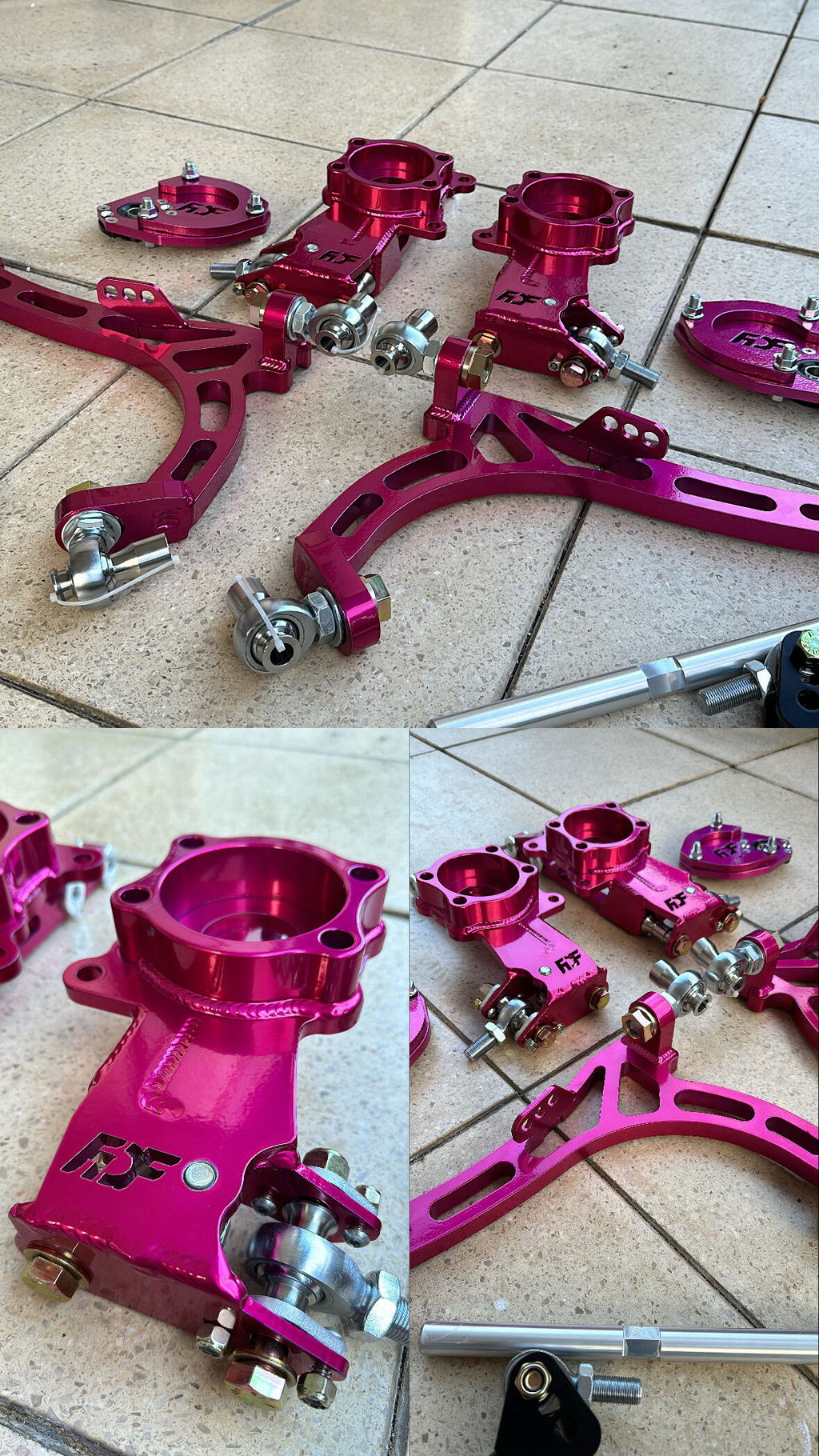

Included:

• 2 lower control arms
• 2 knuckles- Ackerman Plates
• 2 inner and outer tie-rods
• 2 caster/camber plates

FDF updates to the kit include:

• 1 piece LCA with on-car adjustment at all points
• Uniball bearing on the outer ball joint
• Knuckle with interchangeable spacers to use on s13/14/15 coilovers
• Integrated bump stop on the knuckle for fine-tuning your angle limit

All hardware required for install included.

Note: Must have coilovers to run this kit.

Note: Wheel bearing not included.

Note: If you choose to run the Z32 caliper with the 350Z bearing option, the caliper may require some minor grinding to clear the bearing due to its size.

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.

Installation Manual

Installation Manual (350z Hub)
