Nissan S14 Pro Car Parts

Ball Bearing FDF Handbrake

The new design features 2 press in ball bearings for an instant lock and zero slop design, fixing the unstable feel you get with almost every handbrake available.

The handle itself is 18" tall, and features 2 aluminum plates that bolt on the outside using stainless steel button head bolts for a clean look. The plates will come raw finish, as well as the main body.

Please allow 2-3weeks of fabrication before the item is sent.

Steering column kit  includes the following:

 -Bolts to any 1.5 inch roll cage tubing

- 44" of steering shaft

- 1 column mount

- 1 sweet u-joint

- 1 firewall bearing

- 1 quick release "Option"

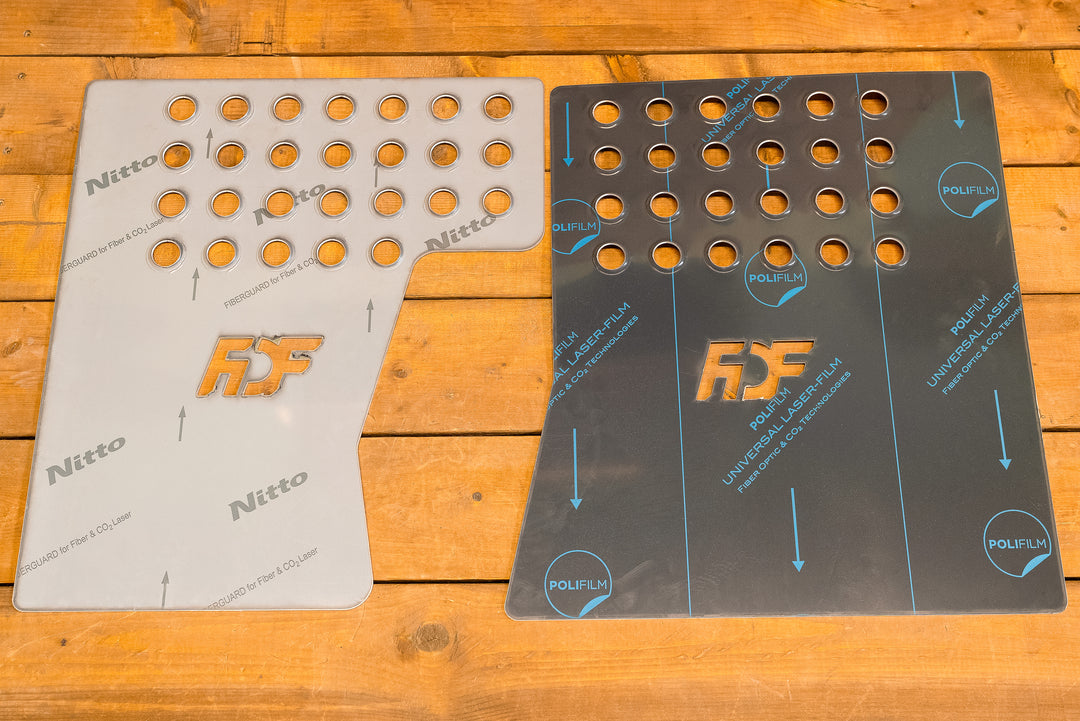

240sx Heel Plates for LHD

-Covers entire floor panel under the pedals to the front of the seat.

-Provides excellent grip with inverted flared holes rows.

-Cut from 6061 aluminum, so no need to paint or coat.

Fits s13/s14/s15

FDF Rear Grip Kit:

-Machined Billet Aluminum
-Multiple options for Calipers available (Wilwood, R-chassis, 350,370, etc)
-7.5lbs per knuckle
-All arms are included and machined from chromoly
-Multiple bearing options R-chassis/s-chassis/z33
-minimal camber gain under squat
-Adjustable toe gain bracket
-Anti squat adjustment
-All arms are on car adjustable with machined wrench plates in the centre

The Billet Mantis Kit for the S-chassis is a fully CNC machined kit, using 7075 Aluminum and then hard anodized "mantis green" with the upgraded 350z bearing option. It is the most relevant angle kit in today's drift society, here are the specs:

-Angle, 70 degrees+ depending on your steering rack offset and wheel setup

-Tierods, the kit includes adjustable offset rack spacers, with inner and outer heim joints

-Ackerman, adjustable ackerman

-Roll Center, optimized handling by adding 50mm of roll centre correction

-Bump steer, minimal bump steer in drift by perfecting tie-rod  pitch angle

-Caster, added trail and reduced caster which adds more grip by increasing tire contact patch, causes less bump steer, less jacking from lock to lock, increase transition speed, effortless transition while on throttle

-Camber, optimized camber ranging from -3 to -6

-Track Width, 75mm wider per side creating a stable and high clearance front end

-Suspension Travel, long travel range, full lock to full lock at any point throughout  suspension travel for increased grip

-Joints, Chromoly heim joints and spherical bearings with self lubricating nylon race, easily replaceable

-Weight Reduction, compact drop knuckle design makes for a lighter and stronger design, Billet machined arms from 7075 aluminum, this material is stronger than steel at 40% of the weight.

Introducing the FDF Sway Bar Kit, an innovative solution that simplifies the process of creating a custom sway bar for your race car. Our kit features precision-machined components, meticulously crafted in-house to ensure superior quality and performance. With this comprehensive kit at your disposal, you'll have everything you need to construct a custom sway bar, from start to finish.

The FDF Sway Bar Kit includes all the complex parts required to build a top-of-the-line sway bar, along with convenient links to help you source any additional materials you may require. Whether you prefer to purchase materials locally or through the McMaster-Carr website, we've got you covered.

To further assist you in customizing your sway bar, we offer a range of options to choose from. Simply refer to the detailed information provided below and select the options that best meet your specific needs.

For a visual demonstration of how our kit can be utilized in your build, we encourage you to check out our video link, showcasing how we used the FDF Sway Bar Kit in our C6 Corvette build.

Invest in the FDF Sway Bar Kit and take your race car to the next level of performance and precision.

Included Parts

-2 Female spline ends

- 2 Male Spline ends

- 4 locking bolts

- 2 blades (6",8" or 10")

Optional

-sway bar link kit

Need to purchase parts

- 2 Bushings

- sway bar material (4130 1.25x.120 tubing)

- housing material (DOM or 4130 1.75 x .120 tubing)

 Please allow 2-3 weeks for shipping

Fully Built NA Engine

800HP

E98 FUEL

14-1 COMPRESSION

Sprint car filter
