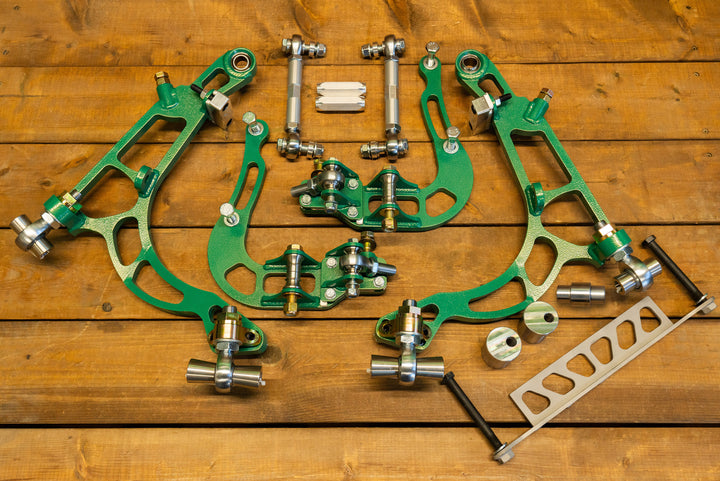

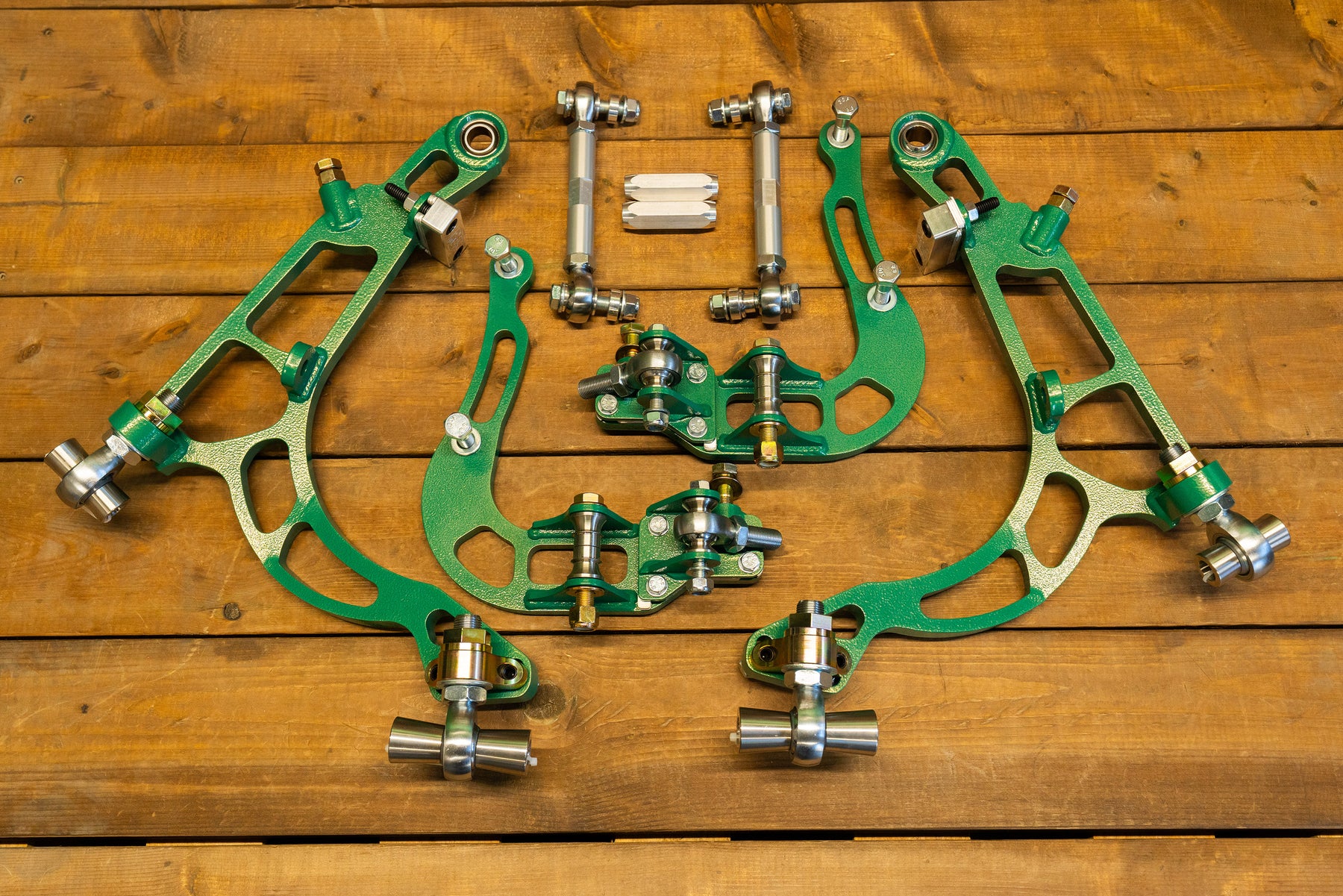

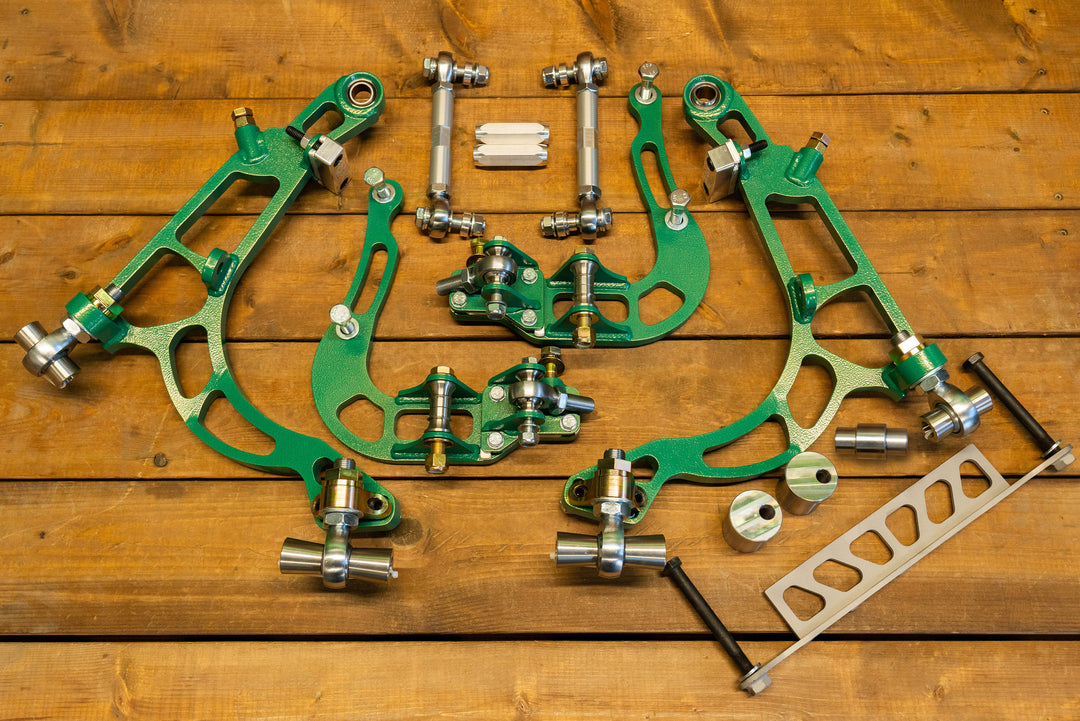

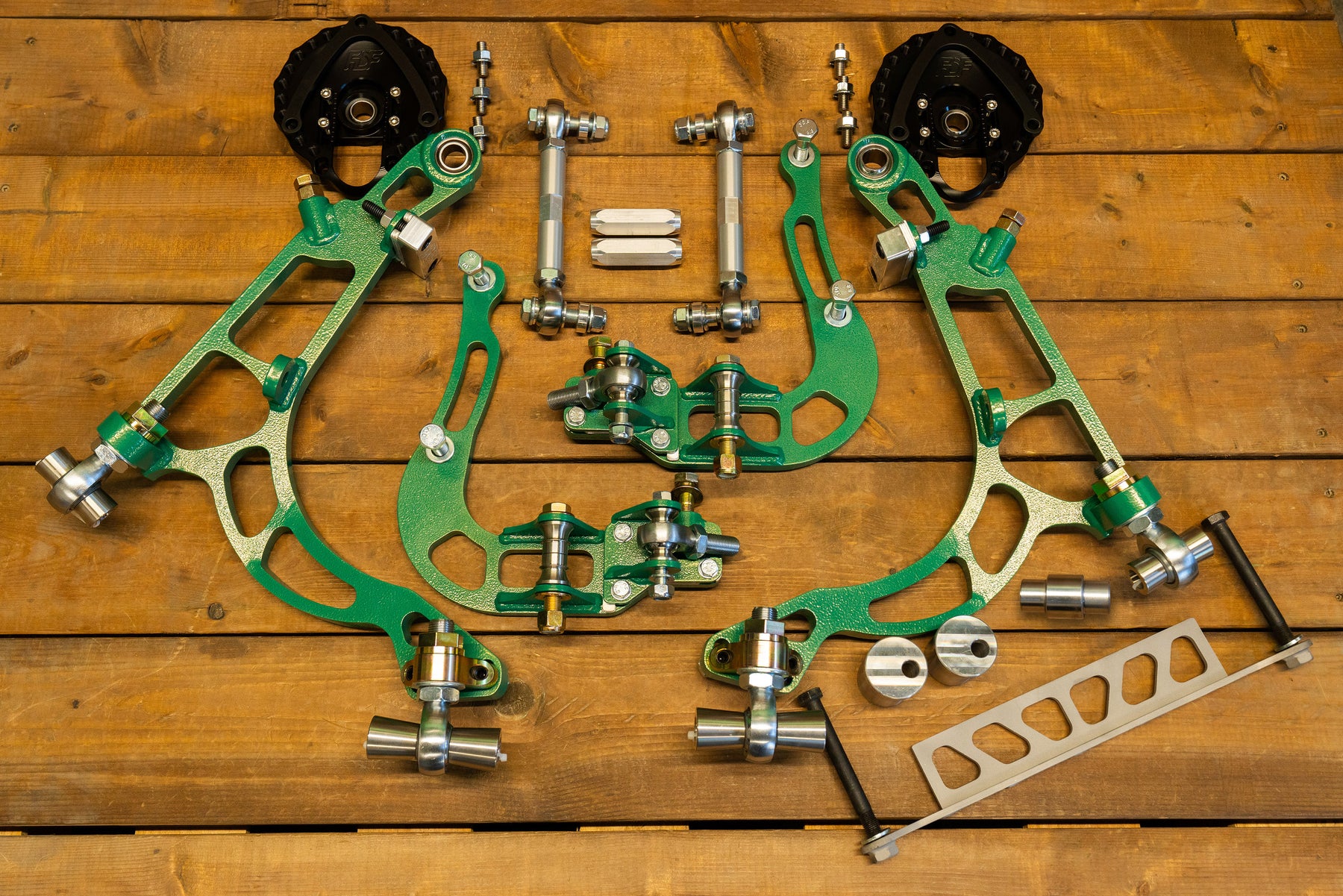

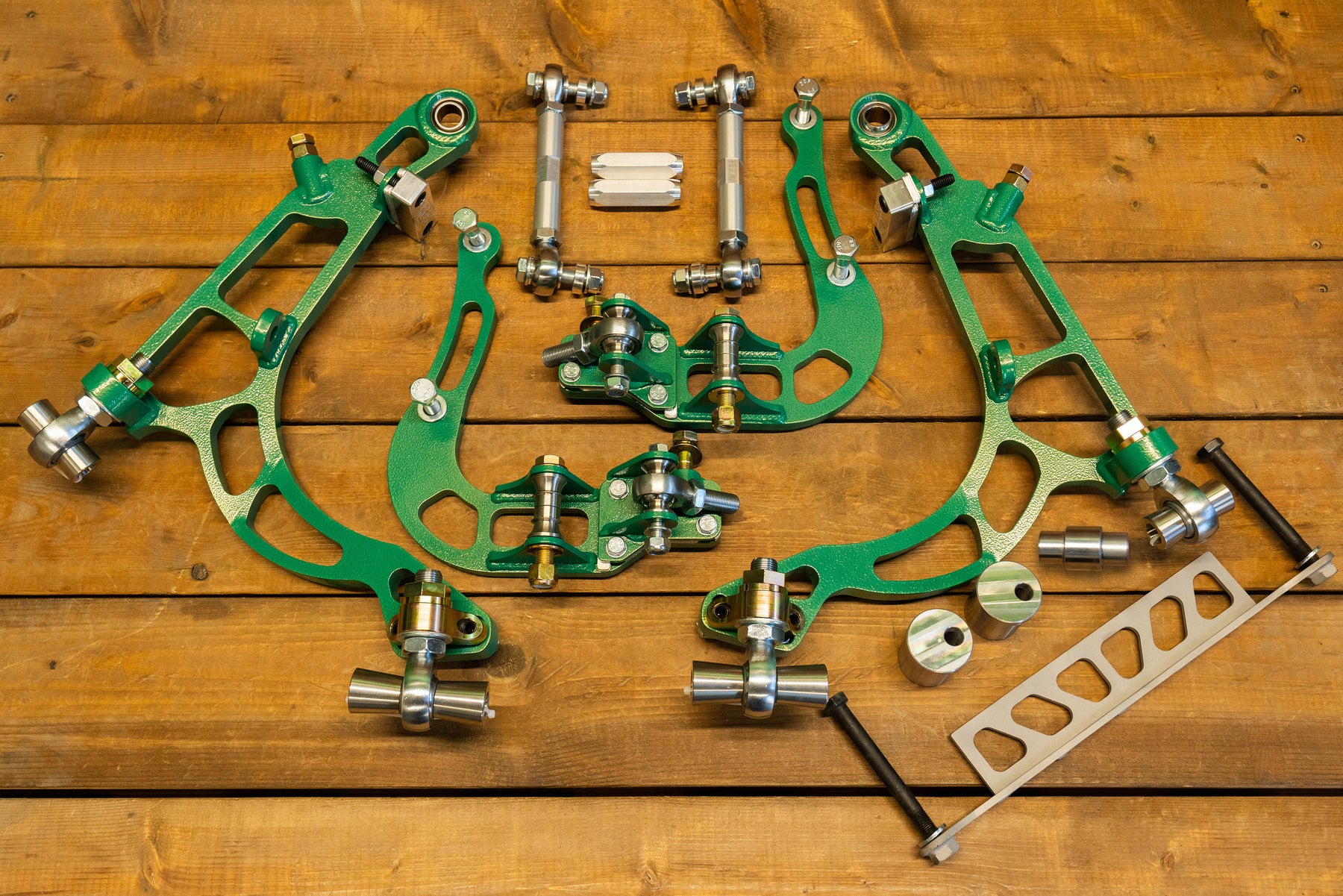

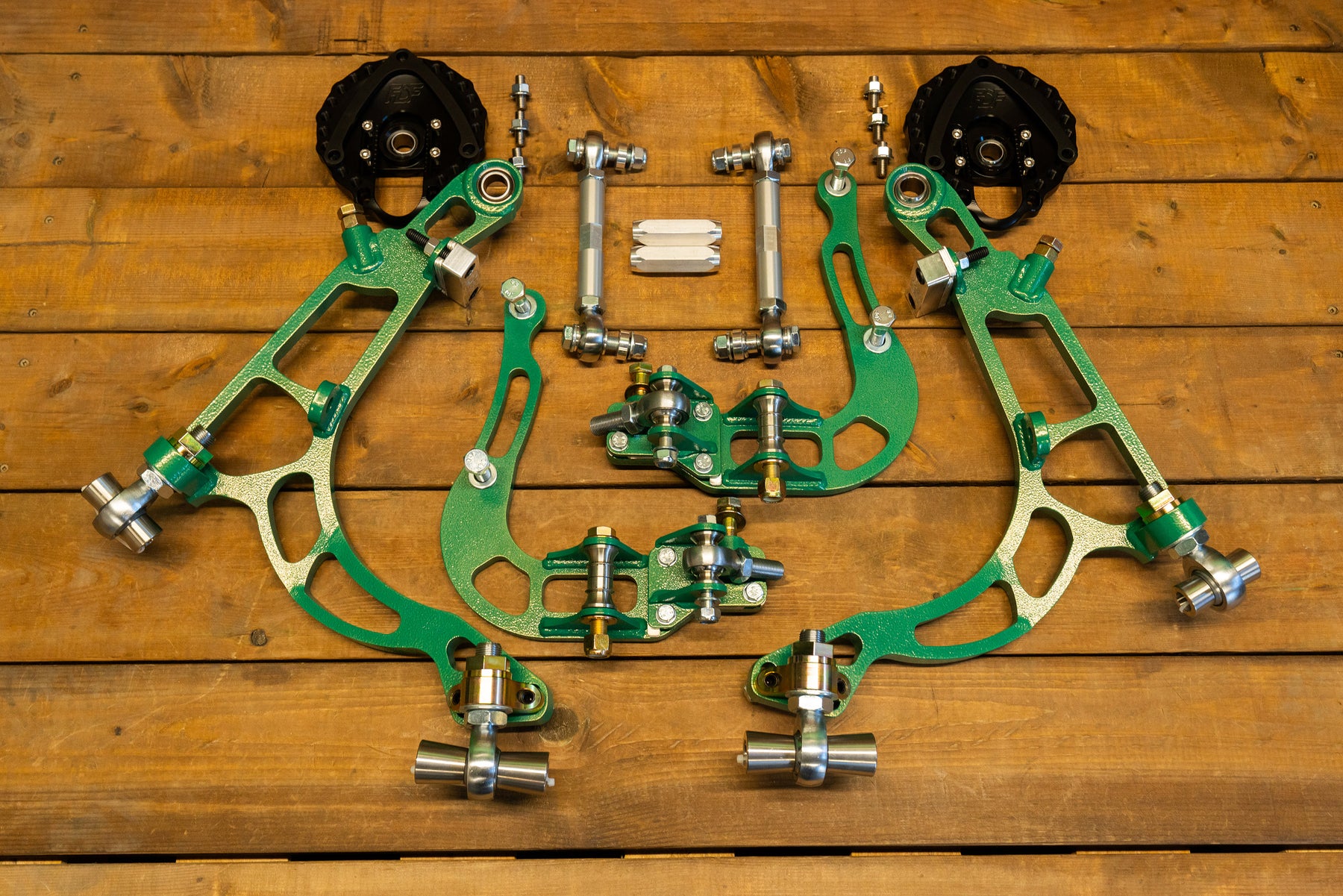

Ford S550/650 Mild Mantis Angle Kit

Built for big angle and full control, the S550/S650 Mild Mantis kit is a complete front-end upgrade designed for serious drift setups.

It features a Knuckle adaptor with all the added benefits of a full knuckle, and also fits the New S650, which uses a bolt on wheel bearing. designed to allow for lead and trail bump stops, adjustable ackermann, easy sway bar connection and OEM fitment for all sensors and accessories.

You can add the sway bar link option to include our FDF sway bar links and finish off the front end properly.

Key Features:

• Angle: 55+ degrees depending on your track width wheel size and steering rack setup
• Ackermann: Anti/Pro Ackermann adjustable.
• Roll Center: 30mm Roll center adjustment.
• Bump steer: Minimal bump steer in drift by perfecting the geometry for the angle.
• Caster: Optimized caster for lead and trail wheel contact, with built-in trail to the knuckle adaptor.
• Camber: Optimized camber to counteract caster at full lock.
• Track Width: Adjustable range from 30mm-50mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to lock at max droop and max compression.
• Joints: Chromoly 3 piece Heim joints and spherical bearings.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.

Installation Manual

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.
