FDF Products for Increase / 25

The FDF rear traction rods allow for adjustments to be made to the rear multi-link to increase traction, correct bump steer, and perfect your alignment.

The lengths of these arms are fully adjustable on the car, featuring a simple LH and RH thread design.

Key Features:

• Rod Ends: These arms feature high-quality 5/8" Teflon-lined rod ends, which eliminates the flex found in factory rubber bushings.

• Durable & Reliable: These arms are manufactured from Chromoly and have CNC-machined threads and flats for easy adjustments.
• Adjustability: Fully on-car adjustable.

Note: Please allow 3-5 weeks for machining and assembly.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.

• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.

• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

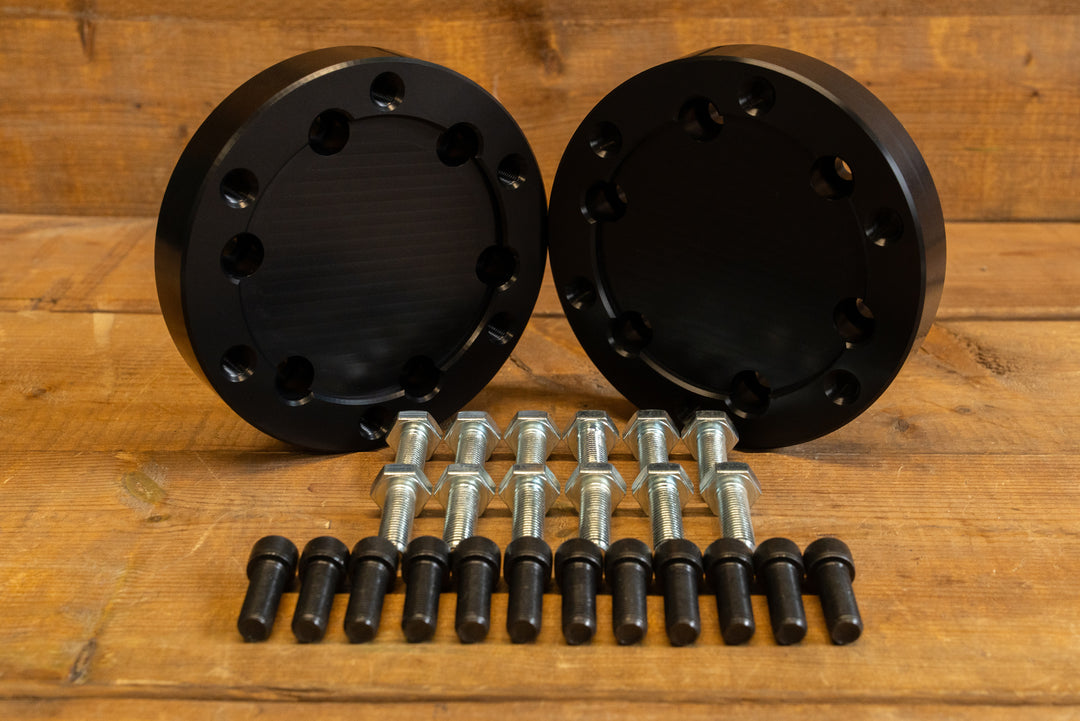

Upgrade your Z33/Z34 vehicle with the FDF Raceshop 350Z/370Z Quick Change Adaptor. Made from 6061 aluminum and featuring high-grade hardware, this adaptor allows for seamless integration of Z33/Z34 axles with popular quick-change systems such as Winters, Bull Dog, and DMI. Designed to deliver superior performance while eliminating the need for expensive custom axles, this is the perfect cost-effective solution for any serious driver.

Key Features:

• Durable & Reliable: Built from high-quality 6061 aluminum, offering both durability and lightweight performance for optimal handling.
• Compatibility: Easily integrate Z33/Z34 axles with popular quick change setups, including Winters, Bull Dog, and DMI systems.
• Cost-Effective Solution: Save on the expense of custom axles with this adaptor, allowing you to use your existing Z33/Z34 axles effortlessly.
• Optimized for High-Horsepower Vehicles: Fine-tune your vehicle’s wheel speed with the quick change system to reduce unnecessary clutch kicks, prevent excessive wear, and eliminate OEM axle failure.
• Prevents Axle Breakage: Reduces the risk of axle breakage caused by long gears or poorly timed handbrake use, which can damage any axle, including OEM ones.
• Complete Installation Kit: Includes a set of 2 adaptors and all required hardware for a straightforward installation.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

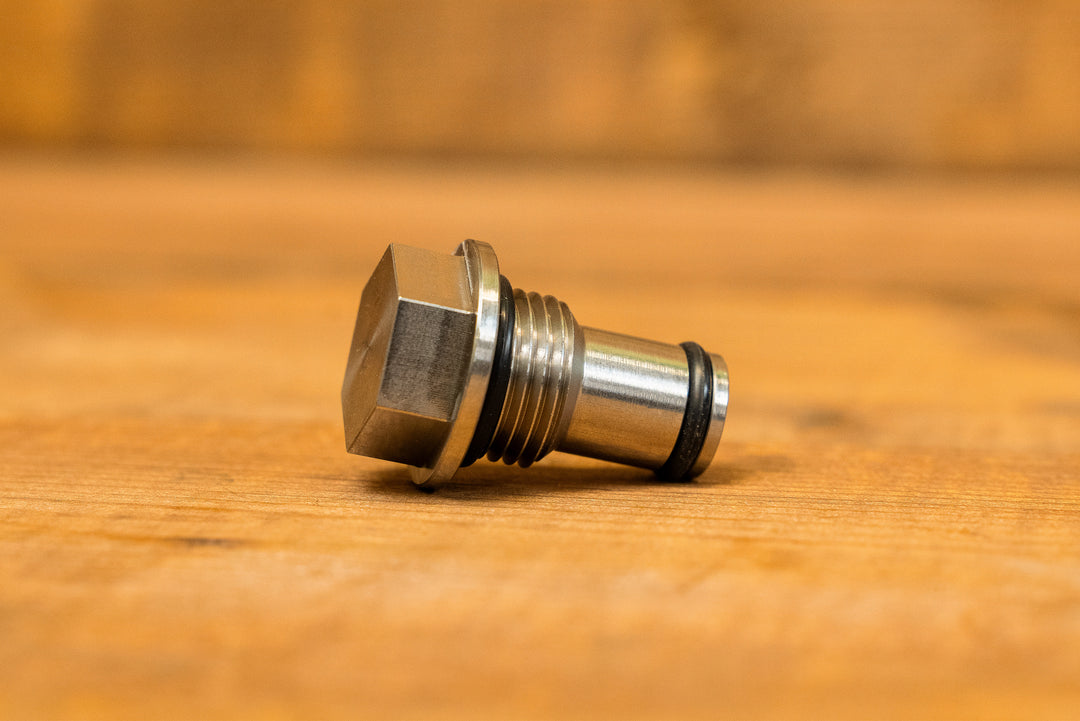

Our stainless steel speed sensitivity delete fitting was designed to replace the factory speed-sensitive steering solenoid, eliminating the bypass valve that restricts power steering. By giving you 100% of the power steering pump’s pressure, you’ll experience superior control.

Key Features:

• Easy 5-Minute Installation: Install it yourself in just minutes.
• Durable & Reliable: Crafted from high-grade stainless steel.
• No Vehicle Modifications Required: Fits directly into your system without the need for permanent modifications.
• Compatibility: Designed for Late-Model Z33 350Z (HR) and Z34 370Z.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

View this post on Instagram

A post shared by FDF Race Shop inc. (@fdfraceshop)

Note: Front brake lines are all extended 3" longer than OEM

The HEL Performance BMW 3 Series E36 braided brake line kit has been manufactured in-house, assembled, and machine-crimped directly onto high-quality stainless steel braided hose ensuring an exact match to your standard brake hoses. Each HEL brake line kit arrives complete with every essential component, resulting in a smooth and straightforward installation.

The kit includes brake lines for the front and rear of the car.

Key Features:

• Eliminates soft, sponge-like braking and delivers consistent performance:  Standard rubber brake hoses can expand under pressure during harsh braking, leading to a soft and unpredictable pedal feel. In contrast, HEL braided brake hoses feature a durable 3-layer construction that withstands extreme pressures and temperatures, ensuring superior braking response, modulation, and control. While standard rubber hoses last about 5 years, HEL replacements offer a lifetime of reliability at a similar price.
• Unrivalled durability and abrasion resistance: HEL manufactures all brake hose fittings from high-quality 303/304 stainless steel. The robust PTFE inner core provides exceptional chemical resistance and extreme temperature tolerance, preventing perishing or cracking over time. Reinforced by a high-strength stainless steel overbraid, the hose is further protected against wear. A wipe-clean PVC cover finishes the hose, safeguarding body panels and paint from scratches.

• HEL's unique, trend-setting hose fitting and ferrule design: HEL’s brake line fittings feature a unique internal multi-groove design that creates dual-purpose sealing o-rings during assembly. This design allows for free and secure rotation of the fittings post-hydraulic swaging, maintaining hose integrity while enabling precise fitment adjustments. The internally located locking groove on the hose ferrule aligns with the fitting, ensuring a secure connection that prevents detachment.

What's Included:

Note: Front brake lines are all extended 3" longer than OEM

The HEL Performance BMW 3 Series E46 braided brake line kit has been manufactured in-house, assembled, and machine-crimped directly onto high-quality stainless steel braided hose ensuring an exact match to your standard brake hoses. Each HEL brake line kit arrives complete with every essential component, resulting in a smooth and straightforward installation.

The kit includes brake lines for the front and rear of the car.

Key Features:

• Eliminates soft, sponge-like braking and delivers consistent performance:  Standard rubber brake hoses can expand under pressure during harsh braking, leading to a soft and unpredictable pedal feel. In contrast, HEL braided brake hoses feature a durable 3-layer construction that withstands extreme pressures and temperatures, ensuring superior braking response, modulation, and control. While standard rubber hoses last about 5 years, HEL replacements offer a lifetime of reliability at a similar price.
• Unrivalled durability and abrasion resistance: HEL manufactures all brake hose fittings from high-quality 303/304 stainless steel. The robust PTFE inner core provides exceptional chemical resistance and extreme temperature tolerance, preventing perishing or cracking over time. Reinforced by a high-strength stainless steel overbraid, the hose is further protected against wear. A wipe-clean PVC cover finishes the hose, safeguarding body panels and paint from scratches.

• HEL's unique, trend-setting hose fitting and ferrule design: HEL’s brake line fittings feature a unique internal multi-groove design that creates dual-purpose sealing o-rings during assembly. This design allows for free and secure rotation of the fittings post-hydraulic swaging, maintaining hose integrity while enabling precise fitment adjustments. The internally located locking groove on the hose ferrule aligns with the fitting, ensuring a secure connection that prevents detachment.

What's Included:

Note: Front brake lines are all extended 3" longer than OEM

The HEL Performance BMW 3 Series E36 braided brake line kit has been manufactured in-house, assembled, and machine-crimped directly onto high-quality stainless steel braided hose ensuring an exact match to your standard brake hoses. Each HEL brake line kit arrives complete with every essential component, resulting in a smooth and straightforward installation.

The kit includes brake lines for the front and rear of the car.

Key Features:

• Eliminates soft, sponge-like braking and delivers consistent performance:  Standard rubber brake hoses can expand under pressure during harsh braking, leading to a soft and unpredictable pedal feel. In contrast, HEL braided brake hoses feature a durable 3-layer construction that withstands extreme pressures and temperatures, ensuring superior braking response, modulation, and control. While standard rubber hoses last about 5 years, HEL replacements offer a lifetime of reliability at a similar price.
• Unrivalled durability and abrasion resistance: HEL manufactures all brake hose fittings from high-quality 303/304 stainless steel. The robust PTFE inner core provides exceptional chemical resistance and extreme temperature tolerance, preventing perishing or cracking over time. Reinforced by a high-strength stainless steel overbraid, the hose is further protected against wear. A wipe-clean PVC cover finishes the hose, safeguarding body panels and paint from scratches.

• HEL's unique, trend-setting hose fitting and ferrule design: HEL’s brake line fittings feature a unique internal multi-groove design that creates dual-purpose sealing o-rings during assembly. This design allows for free and secure rotation of the fittings post-hydraulic swaging, maintaining hose integrity while enabling precise fitment adjustments. The internally located locking groove on the hose ferrule aligns with the fitting, ensuring a secure connection that prevents detachment.

What's Included:

OEM Replacements:

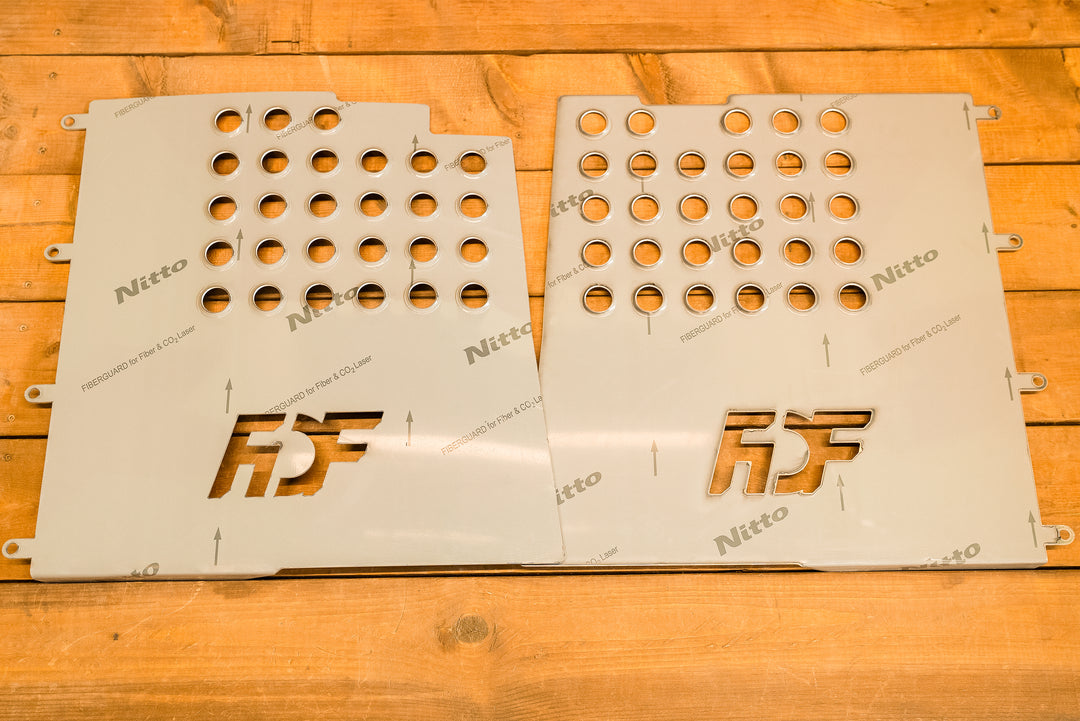

Improve your driving experience with our BMW E36 Heel Plates, designed specifically for left-hand drive vehicles. These plates not only cover the large gully on both sides of your car, but they also provide superior grip, ensuring you maintain control during every turn. Crafted from durable 6061 aluminum, these heel plates are built to last without the need for additional painting or coating, giving your interior a sleek, polished look.

Key Features:

• Durable & Reliable: Made out of 6061 aluminum.

• Use: Covers gully on both sides of the car and provides extra grip.

Note: For convertibles, the heel plates do not fit and require some trimming due to the extra reinforcing done on the chassis

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.

• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.


The BMW E36 Mega Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

• Adjustability: Our innovative lower control arm/lollipop design introduces on-car fine-tuning for caster, a unique feature not found in other kits.
• Strength: Crafted using the strongest alloy steels available, the Mega Mantis Kit is engineered to thrive under intense racing conditions
• Angle: 70 degrees depending on your steering rack setup
• Ackermann: Adjustable Ackermann
• Roll Center: Optimized handling by adding 40mm of roll center correction
• Bump Steer: Minimal bump steer in drift by perfecting tie-rod pickup location
• Caster: Displaced caster built into the knuckle for optimal alignment force
• Camber: Optimized camber ranging from -3 to -6
• Track Width: 50-75mm wider per side creating a stable and high clearance front end (Recommend front over fenders)
• Suspension Travel: Long travel range, full lock to full lock at any point throughout  suspension travel for increased grip
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable
• Durable & Reliable: Made from High strength alloy steel and Aluminum

Choose the options according to your preferences or send us an email if you need help deciding sales@fdfraceshop.com

Note: You Must Have Coilovers To Run This Kit

Includes (dependent on chosen option):

• 2 lower control arms
• 2 knuckles
• Ackerman Plates
• 2 inner and outer tie-rods
• 2 caster/camber plates
• 2 On-Car Adjustable Lollipops
• All bearings and hardware required for install

Note: For custom colors, please list it within the order notes.

Note: Please allow 2-3 weeks of fabrication before the item is sent.

Installation Manual

Installation Manual (M3)

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

The FDF E36 Quick change mount is designed for the customer to weld in. Using reference points on the subframe that are easily identified, the brackets adhere to the contours of the subframe for easy installation. The material used is a high-strength alloy steel that is 3/16 (5mm) thick. The weld process these are designed for is mig or tig.

The design also features a "bolt in front flange" for easily replacing the lower shaft without removing the diff from the car, and for easy installation to the subframe.

The brackets will be shipped tack welded together using our jig, and ready to weld once received.

Key Features:

• Durable & Reliable: Made out of high-strength alloy steel.
• Weld: Designed for customers to weld in using mig or tig.

Note: Please allow 2 weeks process time before shipping.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.


After years of data collection and analysis on the BMW E36/E46 chassis, we have designed some high-strength, long-lasting tie rods.

The tie rod upgrade uses only Chromoly, and 7075 aluminum to make up its construction.

Key Features:

• OEM Socket Replacement: Replaces the OEM inner socket ball joint with a Chromoly adapter that supports a high-strength rod end for improved durability.
• Enhanced Longevity: The upgraded rod ends offer a significantly longer lifespan, especially suited for inner tie rod applications.
• Drift-Ready Design: Engineered to handle the high loads experienced during drifting, reducing wear on the inner tie rod and maintaining consistent alignment over time.
• Universal Compatibility: Designed to fit seamlessly with any angle kit—including FDF, Wisefab, and SLR—this upgrade enhances both handling and the lifespan of your angle kit and tie rods.
  • Without outer Heim joint: Choose this option for FDF or SLR kits
  • With outer Heim joints: Choose this option if you are adapting these tierods to a custom kit, or to Wisefab.
  • The outer tierod is a Left hand 5/8-18, and this joint can be adapted to any kit with a different set of spacers. If you have questions, send us an email at support@fdfraceshop.com and we will get right back to you!

For an E36 the tie rod is 11.5 and for E46 the tie rod body is 12.5". For "Other" please email support@fdfraceshop.com or add in the order notes how long you need your tie rods to be (measurement for the rack to knuckle).

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.

• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

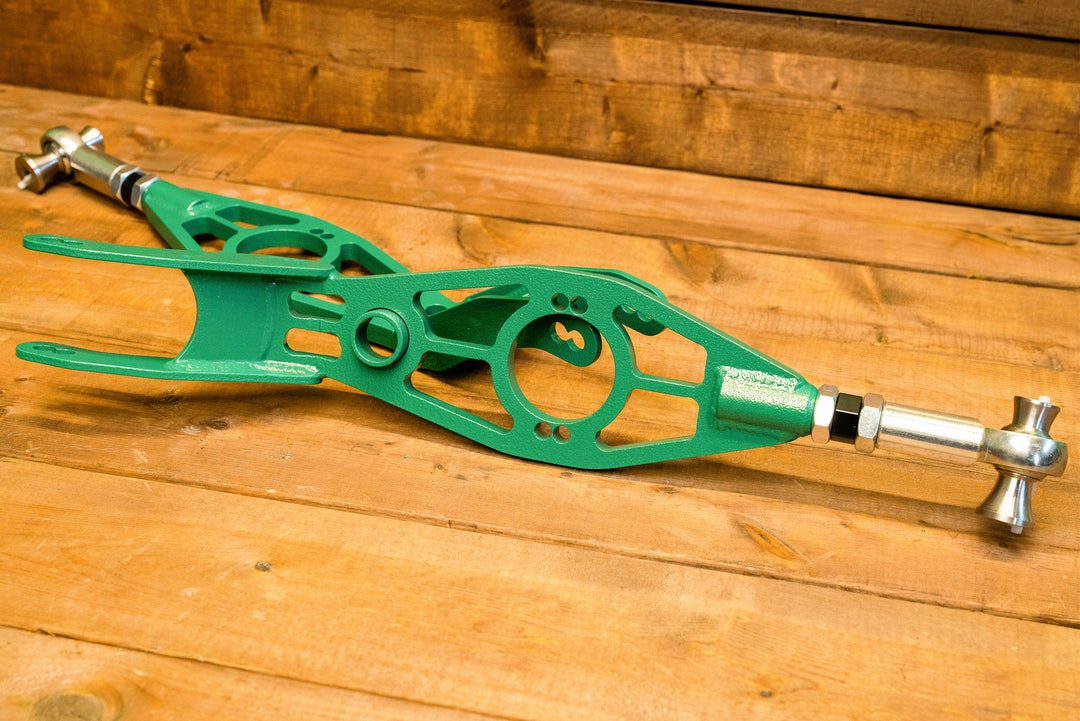

The BMW E36/46 Divorced Rear Upper Control Arm has been designed with input from FD and grassroots drivers to achieve the ideal balance for this chassis. By maintaining the factory divorced setup, it accommodates a wide range of easily interchangeable spring rates. Many drivers prefer this design because it directs forces through the chassis in a manner that it was originally engineered to handle.

Key Features:

• Adjustability: Adjustable track width, camber, and toe using the inner jack screw.
• Suspension Travel: Maximized suspension travel while maintaining clearance for the axles and chassis.

• Easily Replaceable: Designed for easy replacement in the event of a crash; the arm can be removed without needing to drop the differential, unlike stock or other upper control arm options.

• Durable, Reliable & Lightweight: Made of high-strength alloy steel is used throughout all construction materials.

• Testing: FEA (Finite Element Analysis) tested.

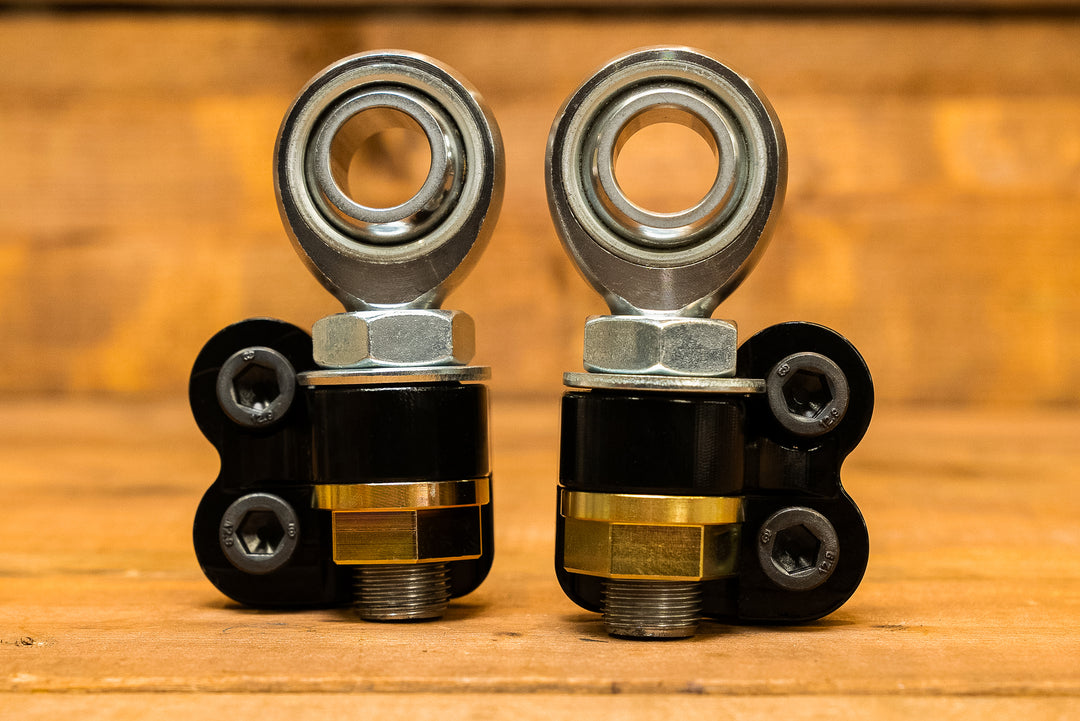

The FDF Lollipops for the E36/E46 utilize the latest technology and engineering to provide an on-car adjustable solution with a compact design. We rely on high-strength alloy steels to ensure durability and performance. These components are machined in-house to meet our quality standards, ensuring they can withstand all forms of racing.

E36/E46 options work with the FDF Mantis Kits. A new E36 OR E46 M20 option is available for non FDF kits that utilize a 20mm spherical rod end.

Key Features:

• Adjustability: Allows for precise caster adjustments on-car to create perfect & quick alignment.
• Durable & Reliable: Made using high strength alloy steels.
• Compatibility: E36/E46 works for FDF kits,  E36 M20/ E46 M20 works for non FDF kits.

Note: Has not been tested on OEM Lower Control Arms.

Included:

• 3/4 or M20 Heim Joint
• 3/4 or M20 Jam Nut
• Lollipop
• Mounting Hardware
• 3/4 or M20 Smooth Adjuster

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

This bundle consists of Rear Upper Control Arms and Rear Lower Control Arms.

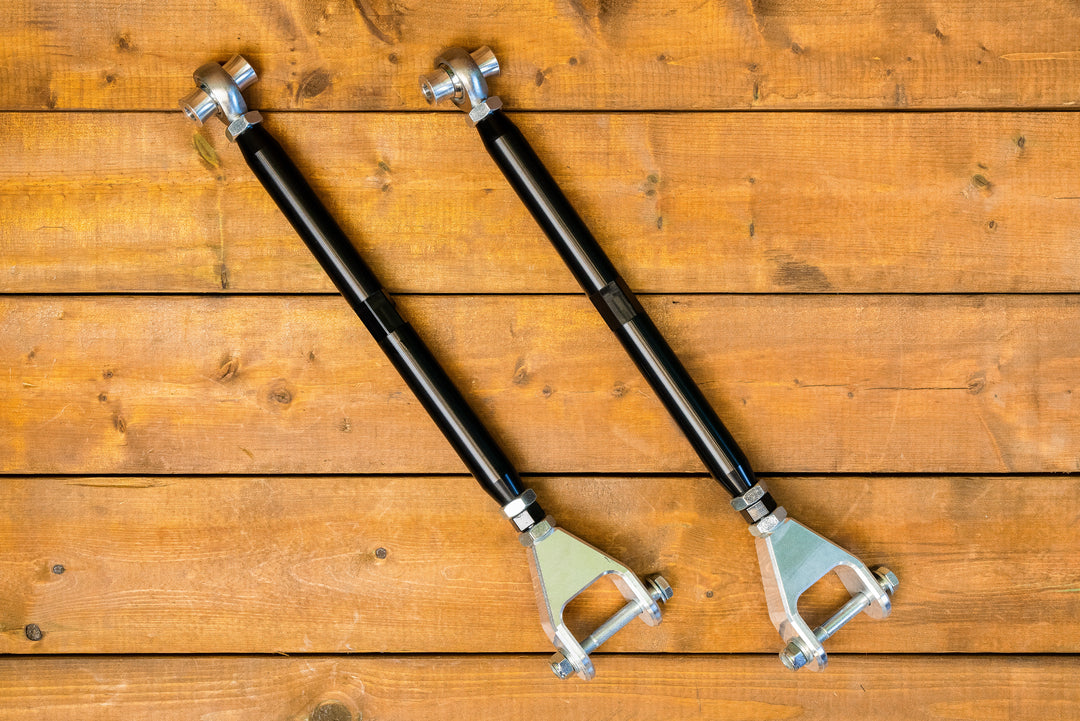

BMW E36/E46 Rear Lower Control Arm

The BMW E36/E46 FDF Arms feature a billet shackle design, with a jackscrew adjustment on the knuckle side of the arm. Since the BMW rear subframe does not allow for a wrench to get inside and tighten any kind of jam nut, moving the adjustment outward was the only solution. These arms were designed with grip in mind, thus being able to adjust your camber to 0 and + figures is easily done with these arms. The Rear Lower Control Arms ensure you get the most grip and even tire wear possible.

Key Features:

• Adjustability: Billet shackle design with jackscrew adjustment on the knuckle side.
• Camber: Adjustable to 0 and +.
• Grip: High level of grip and even tire wear.

Included:

• Left rear lower control arm
• Right rear lower control arm

Note: The upper control arms can be purchased separately.

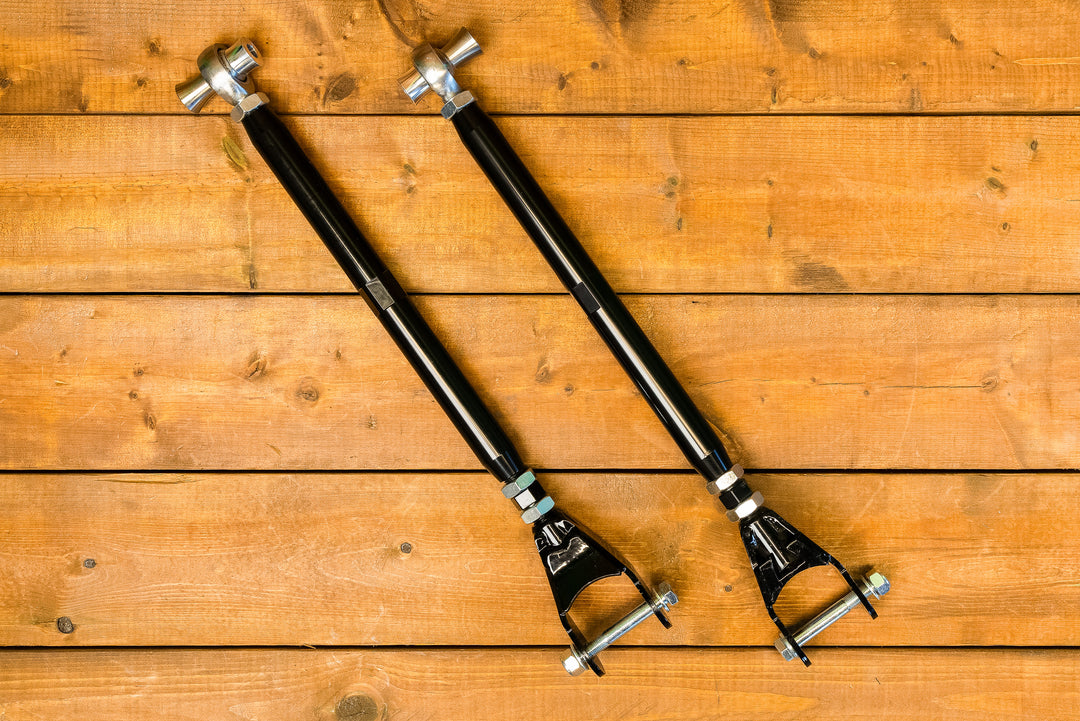

BMW E36/E46 Rear Upper Control Arm

Our BMW E36/E46 Rear Upper Control Arms are an ideal upgrade for your chassis, providing both functionality and ease of use. Adjustments can be made from the wheel side of the arm, allowing quick and accessible fine-tuning. The arms feature a fabricated clearance shackle, enabling full suspension compression even at low ride heights. With a center aluminum section compatible with FDF Lower Control Arms, replacements are simple and cost-effective. The lightweight aluminum construction minimizes weight while providing durability, and the camber adjustment ranges from -3 to +2 degrees.

Key Features:

• Adjustability: Fully adjustable on the wheel side of the arm.
• Clearance: Enables full suspension compression at low ride heights with clearance shackle.
• Compatibility: Able to use with FDF Lower Control Arms.
• Durable, Lightweight & Reliable: Made with high-strength aluminum.
• Camber: Adjustment ranges from -3 to +2 degrees.

Note: The upper control arms do not have an OEM sway bar mount.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

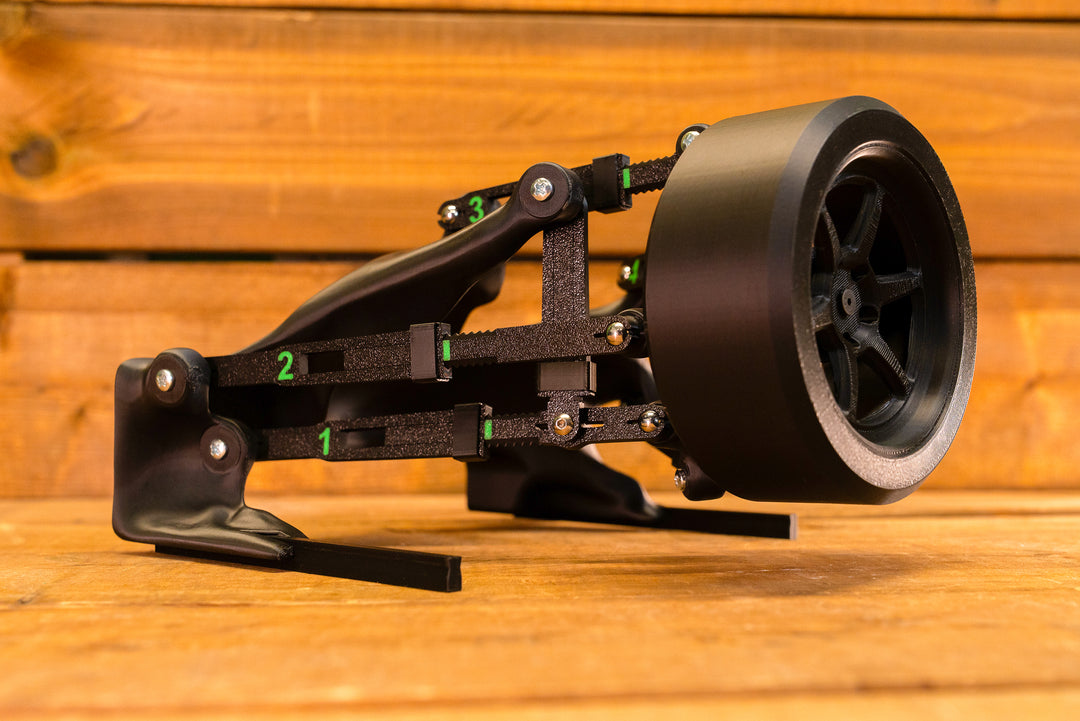

This kit is designed for the demands of competitive drifting, offering a robust lightweight design, it is the only kit offering toe gain under compression, with the ability to setup it up for zero bump steer as well. All other options will toe out under compression which is not ideal for rear grip and control in drifting or racing. The changes made to the knuckles were simulated and tested to optimize the already great trailing arm suspension for the E36/46 chassis.

Key Features:

• Proven Track Record: Field-tested by professional driver Connor O'Sully, who took second overall in his 2024 Formula Drift season. This kit has demonstrated its superiority in competitive settings, contributing significantly to a car that's nearly unbeatable on the track.
• Durable & Reliable: Constructed from high-strength alloy steel, our knuckles are lighter and stronger than OEM knuckles. The kit includes dual caliper brackets specifically designed for Wilwood calipers and features an easy-to-adjust control arm system. Equipped with uniball bearings and high-strength heim joints, designed to endure the abuse of racing and maintain performance through collisions and contact.
• Advanced Engineering: Developed with CAD simulations and FEA testing to meet rigorous racing standards, this kit improves kinematics and vehicle dynamics, ensuring superior handling and responsiveness, with emphasis on the adjustable toe gain control, roll center correction, anti-squat adjustment, and options for the pick-up holes to change the amount of side bite and forward bit this kit can create.
• Adjustability: Features adjustable anti-squat settings (FD-legal is the standard) and precision toe adjustments using shims for symmetrical alignment. This allows for the fastest and most accurate setup adjustments available on the market for this chassis.
• Easy Installation: The installation process is streamlined with an included guide and video tutorial. Even the weld-on brackets are simplified with alignment holes for accurate placement.
• FD Legal Design: Fully compliant with Formula Drift rules, ensuring that your vehicle meets competition standards without compromising performance.
• Maintenance Made Simple: All components are designed for easy replacement, with individual parts available for quick exchanges in the event of damage.
• Race-Only Application: Specifically designed for use on the racetrack, focusing every aspect of the kit on maximizing your competitive edge.

Note: Because this kit is designed for competition, it will only work with Wilwood brakes, and it also uses a bolt-on style hub and bearing that is a better design vs the press in OEM bearing. Below are the part numbers required for running this kit, and they will correspond with the option you choose. These parts will need to be purchased on your own, for any assistance we are happy to guide you just email support@fdfraceshop.com or give us a call.

• BMW wheel bearing FAG 33411095238
• BMW wheel hub Febi Bilstein 33411095774
• Rear caliper foot brake 120-9705 (caliper requires threading, or insert for thread)

• Rear caliper hand brake 120-9695 (caliper requires thread, or insert for thread)

• Rear rotors 160-4766

• Rear hat 170-9128  (offset of .64") (center bore is 3.06 wheel bearing is 2.917)

FOR OEM ROTOR OPTION ONLY

• Purchase Rear Rotor 120-13840 and corresponding pads

The BMW E36/E46 FDF Arms feature a billet shackle design, with a jackscrew adjustment on the knuckle side of the arm. Since the BMW rear subframe does not allow for a wrench to get inside and tighten any kind of jam nut, moving the adjustment outward was the only solution. These arms were designed with grip in mind, thus being able to adjust your camber to 0 and + figures is easily done with these arms. The Rear Lower Control Arms ensure you get the most grip and even tire wear possible.

Key Features:

• Adjustability: Billet shackle design with jackscrew adjustment on the knuckle side.
• Camber: Adjustable to 0 and +.
• Grip: High level of grip and even tire wear.

Included:

• Left rear lower control arm
• Right rear lower control arm

Note: The upper control arms can be purchased separately.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

Our BMW E36/E46 Rear Upper Control Arms are an ideal upgrade for your chassis, providing both functionality and ease of use. Adjustments can be made from the wheel side of the arm, allowing quick and accessible fine-tuning. The arms feature a fabricated clearance shackle, enabling full suspension compression even at low ride heights. With a center aluminum section compatible with FDF Lower Control Arms, replacements are simple and cost-effective. The lightweight aluminum construction minimizes weight while providing durability, and the camber adjustment ranges from -3 to +2 degrees.

Key Features:

• Adjustability: Fully adjustable on the wheel side of the arm.
• Clearance: Enables full suspension compression at low ride heights with clearance shackle.
• Compatibility: Able to use with FDF Lower Control Arms.
• Durable, Lightweight & Reliable: Made with high-strength aluminum.
• Camber: Adjustment ranges from -3 to +2 degrees.

Note: The upper control arms do not have an OEM sway bar mount.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

This kit includes everything needed to replace the rear trailing arm bushings to spherical bearings.

Includes:

• 4 Weld In Bearing Cups
• 4 Spherical Bearings
• 4 Snap Rings
• 8 Spacers

Specs:

• Uniball Bore: 3/4 bore
• Cup OD: 1.750 inch
• Cup ID: 1.4375 inch
• Cup Height: 1.169 inch
• Cup Material: 4130 Chromoly

Installation Manual

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

Note: Front brake lines are all extended 3" longer than OEM

The HEL Performance BMW 3 Series E36 braided brake line kit has been manufactured in-house, assembled, and machine-crimped directly onto high-quality stainless steel braided hose ensuring an exact match to your standard brake hoses. Each HEL brake line kit arrives complete with every essential component, resulting in a smooth and straightforward installation.

The kit includes brake lines for the front and rear of the car.

Key Features:

• Eliminates soft, sponge-like braking and delivers consistent performance:  Standard rubber brake hoses can expand under pressure during harsh braking, leading to a soft and unpredictable pedal feel. In contrast, HEL braided brake hoses feature a durable 3-layer construction that withstands extreme pressures and temperatures, ensuring superior braking response, modulation, and control. While standard rubber hoses last about 5 years, HEL replacements offer a lifetime of reliability at a similar price.
• Unrivalled durability and abrasion resistance: HEL manufactures all brake hose fittings from high-quality 303/304 stainless steel. The robust PTFE inner core provides exceptional chemical resistance and extreme temperature tolerance, preventing perishing or cracking over time. Reinforced by a high-strength stainless steel overbraid, the hose is further protected against wear. A wipe-clean PVC cover finishes the hose, safeguarding body panels and paint from scratches.

• HEL's unique, trend-setting hose fitting and ferrule design: HEL’s brake line fittings feature a unique internal multi-groove design that creates dual-purpose sealing o-rings during assembly. This design allows for free and secure rotation of the fittings post-hydraulic swaging, maintaining hose integrity while enabling precise fitment adjustments. The internally located locking groove on the hose ferrule aligns with the fitting, ensuring a secure connection that prevents detachment.

What's Included:

OEM Replacements:

Improve your driving experience with our BMW E46 Heel Plates, designed specifically for left-hand drive vehicles. These plates not only cover the large gully on both sides of your car, but they also provide superior grip, ensuring you maintain control during every turn. Crafted from durable 6061 aluminum, these heel plates are built to last without the need for additional painting or coating, giving your interior a sleek, polished look.

Key Features:

• Features: Left-hand drive plates that cover the gully on both sides of the car.
• Grip: High level of grip for control.
• Durable & Reliable: Made from 6061 aluminum.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.

• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

The BMW E46 Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

• Adjustability: Our innovative lower control arm/lollipop design introduces on-car fine-tuning for caster, a unique feature not found in other kits.
• Strength: Crafted using the strongest alloy steels available, the Mega Mantis Kit is engineered to thrive under intense racing conditions
• Angle: 70 degrees depending on your steering rack setup
• Ackermann: Adjustable Ackermann
• Roll Center: Optimized handling by adding 40mm of roll center correction
• Bump Steer: Minimal bump steer in drift by perfecting tie-rod pickup location
• Caster: Displaced caster built into the knuckle for optimal alignment force
• Camber: Optimized camber ranging from -3 to -6
• Track Width: 50-75mm wider per side creating a stable and high clearance front end (Recommend front over fenders)
• Suspension Travel: Long travel range, full lock to full lock at any point throughout  suspension travel for increased grip
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable
• Durable, Reliable & Light-weight: Made from High strength alloy steel and Aluminum.

E46 Mild:

26mm wider than stock for a more mild track width well maintaining high clearance for the added angle the kit provides.

E46 Mega:

53mm wider per side creating a stable and high clearance front end with a full adjustable tie rods set up.

E36 knuckles on the E46 option benefits!

The E36 knuckle is far superior to the E46 knuckle because it is a stronger, lighter, simpler mounting design, and is a cheaper knuckle to build. It allows for a longer shock (50mm longer for more stroke), allows for camber to be adjusted at the knuckle and the top of the coilover. It will bolt up to the E46 chassis as long as you have E36 front coilovers. This is what every pro driver with an E46 runs including some of our drivers such as Adam LZ, Dylan Hughes, and Jonathan hurst all seen in PRO FD.

Choose the options according to your preferences or send us an email if you need help deciding sales@fdfraceshop.com

Note: You Must Have Coilovers To Run This Kit

Includes (dependent on chosen option):

• 2 lower control arms
• 2 knuckles
• Ackermann Plates
• 2 inner and outer tie-rods

• 2 caster/camber plates
• 2 On-Car Adjustable Lollipops
• All bearings and hardware required for install

Note: For custom colors, please list it within the order notes.

Note: Please allow 2-3 weeks of fabrication before the item is sent.

Installation Manual

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

The E46 chassis has a front suspension design that allows for high angle clearance, the perfect steering rack location and easy to work on suspension. Its one downside is the fragile single shear subframe mount, but the Subframe Angle Kit brace strengthens this mount!

Angle kits have extended control arms, which increase the leverage on the mount and can cause failures in the subframe and in the ball joint stud. Using this brace creates a double-shear mount, tripling the strength of the mounting area and preventing fatigue from occurring. So, even in the event of an accident, this brace will help focus the energy on the suspension arms instead of on the subframe.

Key Features:

• Durable & Reliable: The brace triples the strength of the mounting area.
• Protection: During an accident, the brace directs the energy on the suspension arms instead of the subframe.
• Compatibility: Fits SLR, Wisefab and FDF angle kits.

Note: This brace does not work with any factory control arms or any angle kits that use factory ball joints.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

BMW E81/E82/E90/E92 Rear Toe Arm

FDF's rear toe arm allows you to achieve the correct rear toe on your car. The factory BMW suspension has a very aggressive camber gain through compression - this is extremely noticeable when lowered. FDF's rear arms will eliminate deflection found in the stock bushings. Instead of using rubber, FDF uses 3/4" Teflon-lined rod ends.

Key Features:

• Durable & Reliable: Black Anodized and machined from 6061-T6 aluminum
• Spacers: Stainless Steel misalignment spacers
• Rod Ends: Low Friction 3 Piece Teflon Lined Rod Ends

BMW E81/E82/E90/E92 Rear Upper Control Arms

FDF's rear control arms allow you to achieve the correct rear camber and toe on your car. The factory BMW suspension has a very aggressive camber gain through compression - this is extremely noticeable when lowered. When you lower your vehicle, it naturally adds more camber - these upper arms allow you to correct that rear camber to give you more grip. FDF's rear arms also eliminate deflection found in the stock bushings. Instead of using rubber, FDF uses 3/4" Teflon-lined rod ends.

Key Features:

• Durable & Reliable: Black Anodized and machined from 6061-T6 aluminum.
• Spacers: Stainless Steel misalignment spacers.
• Rod Ends: Low Friction 3 Piece Teflon Lined Rod Ends.
• Camber: Allows easy correction of camber to increase grip.


Includes:

• 4 Arms

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

The BMW E81/E82/E87/E88 Mantis Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Note: Does not work with M series knuckles.

Key Features:

• Angle: 70 degrees depending on your wheel setup and length of control arms.
• Tie-rods: Outer tie-rods  included, these fasten to the stock inner tie-rods.
• Ackermann: Adjustable Ackermann options from Positive - zero - negative.
• Roll Center: Optimized handling by adding 40mm of roll center correction.
• Bump steer: Perfected bump steer for drifting.
• Caster: Modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 50-75mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout  suspension travel for increased grip.
• Joints: Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.


Note: For custom colors, please list it within the order notes.

Note: Please allow 2-3weeks of fabrication before the item is sent.

Installation Manual

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

FDF's rear toe arm allows you to achieve the correct rear toe on your car. The factory BMW suspension has a very aggressive camber gain through compression - this is extremely noticeable when lowered. FDF's rear arms will eliminate deflection found in the stock bushings. Instead of using rubber, FDF uses 3/4" Teflon-lined rod ends.

Key Features:

• Durable & Reliable: Black Anodized and machined from 6061-T6 aluminum
• Spacers: Stainless Steel misalignment spacers
• Rod Ends: Low Friction 3 Piece Teflon Lined Rod Ends

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.

• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

FDF's rear control arms allow you to achieve correct rear camber and toe on your car. The factory BMW suspension has a very aggressive camber gain through compression - this is extremely noticeable when lowered. When you lower your vehicle, it naturally adds more camber - these upper arms allow you to correct that rear camber to give you more grip. FDF's rear arms also eliminate deflection found in the stock bushings. Instead of using rubber, FDF uses 3/4" Teflon lined rod ends.

Key Features:

• Durable & Reliable: Black Anodized and machined from 6061-T6 aluminum.
• Spacers: Stainless Steel misalignment spacers.
• Rod Ends: Low Friction 3 Piece Teflon Lined Rod Ends.
• Camber: Allows easy correction of camber to increase grip.


Includes:

• 4 Arms

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

The Mini Mantis Kit for the BMW E80/E90 is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

Note: Please allow 2 weeks of build time.

Note: For custom colors, please list it within the order notes.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.

The Mantis Kit for the BMW E9x is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Note: Does not work with M series knuckles.

Key Features:

• Adjustability: Our innovative lower control arm/lollipop design introduces on-car fine-tuning for caster, a unique feature not found in other kits.
• Strength: Crafted using the strongest alloy steels available, the Mega Mantis Kit is engineered to thrive under intense racing conditions
• Angle: 70 degrees depending on your wheel setup and length of control arms.
• Tie Rods: Outer tie-rods included, these fasten to the stock inner tie-rods.
• Ackermann: Adjustable Ackermann - options from + to 0 to -.
• Roll Center: Optimized handling by adding 40mm of roll center correction.
• Bump Steer: Perfected bump steer for drifting.
• Caster: Modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 50-75mm wider per side creating a stable and high clearance front end. (Recommend front over fenders).
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Note: For custom colors, please list it within the order notes.

Note: You Must Have Coilovers To Run This Kit.

Note: Please allow 2-3 weeks of fabrication before the item is sent.

Installation Manual

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.
